Chapter 16 Port Authentication
ES-2024 Series User’s Guide
122

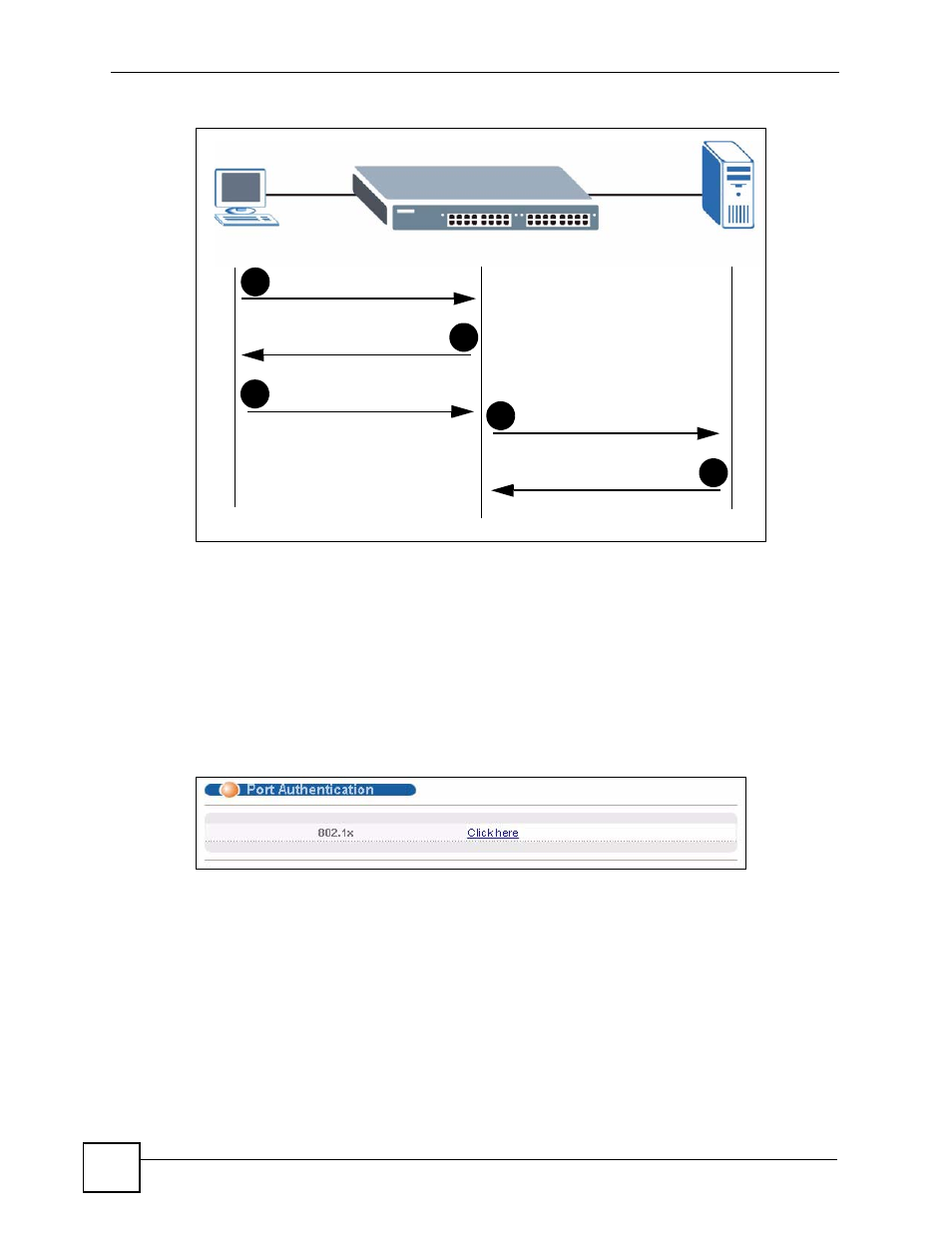

Figure 57 IEEE 802.1x Authentication Process
16.2 Port Authentication Configuration
To enable port authentication, first activate the port authentication method(s) you want to use
(both on the Switch and the port(s)) then configure the RADIUS server settings in the Auth
and Acct > Radius Server Setup screen.
Click Advanced Application > Port Authentication in the navigation panel to display the
screen as shown.
Figure 58 Advanced Application > Port Authentication
16.2.1 Activate IEEE 802.1x Security
Use this screen to activate IEEE 802.1x security. In the Port Authentication screen click
802.1x to display the configuration screen as shown.
New Connection
Authentication Request
Authentication Reply
1
4
5
Login Credentials
Login Info Request
3
2
Session Granted/Denied
