Chapter 2 Hardware Installation and Connection
ES-2024 Series User’s Guide
35
2 Using a #2 Philips screwdriver, install the M3 flat head screws through the mounting
bracket holes into the Switch.
3 Repeat steps 1 and 2 to install the second mounting bracket on the other side of the
Switch.
4 You may now mount the Switch on a rack. Proceed to the next section.
2.2.3 Mounting the Switch on a Rack
1 Position a mounting bracket (that is already attached to the Switch) on one side of the
rack, lining up the two screw holes on the bracket with the screw holes on the side of the
rack.

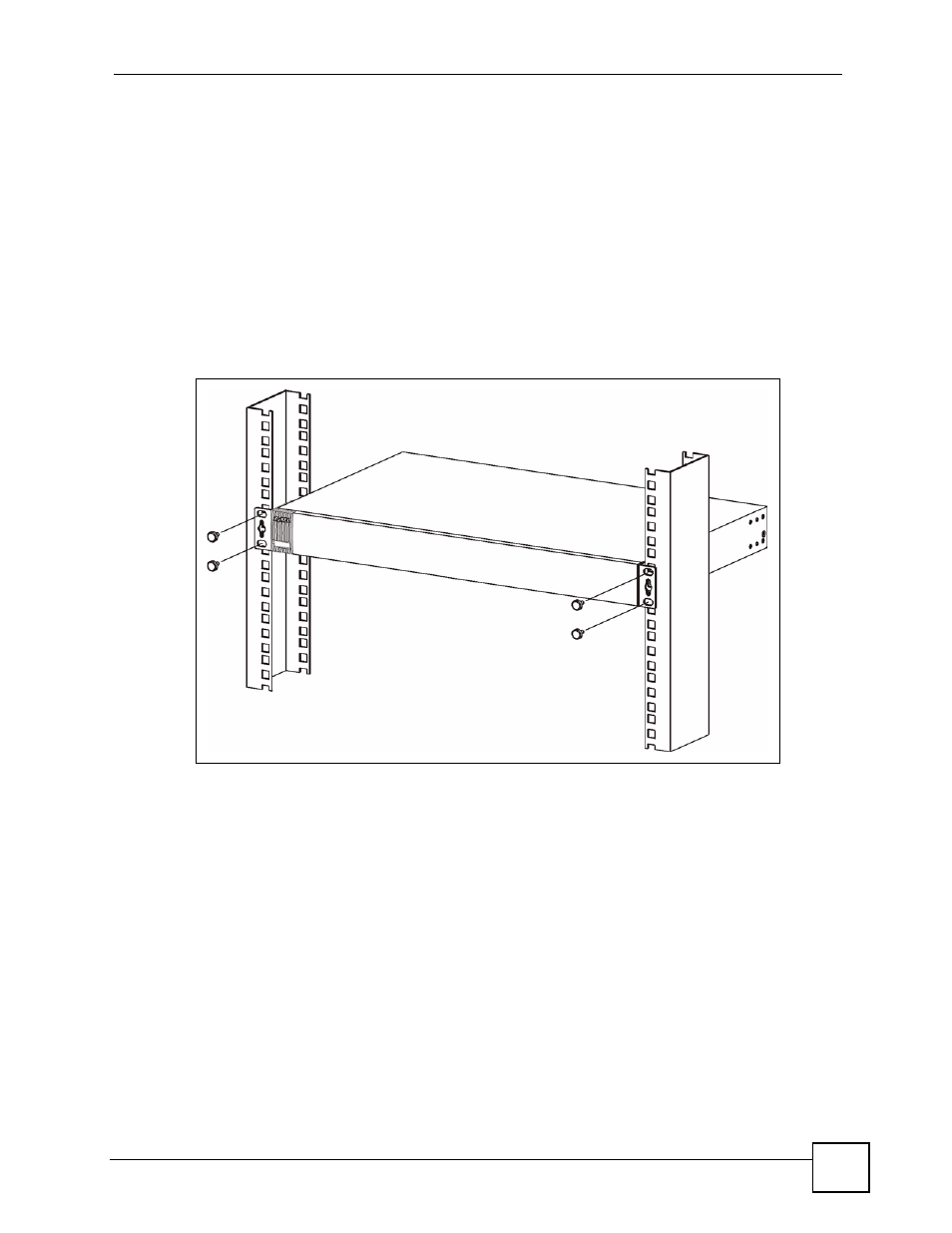

Figure 7 Mounting the Switch on a Rack
2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting
bracket holes into the rack.
3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of the rack.
