Chapter 5 Initial Setup Example
ES-2024 Series User’s Guide
56

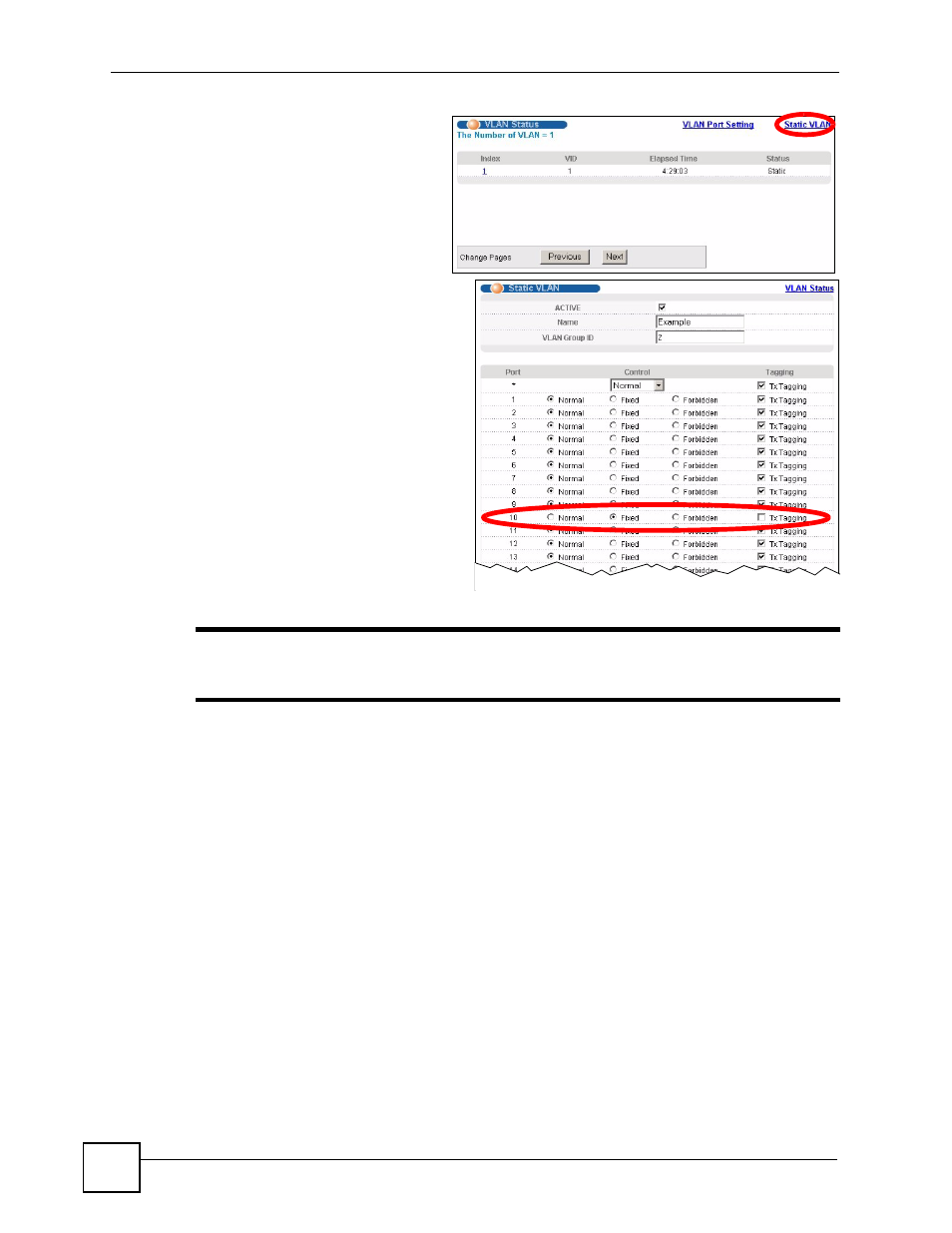

1 Click Advanced Application
and VLAN in the navigation
panel and click the Static
VLAN link.
2 In the Static VLAN screen,
select ACTIVE, enter a
descriptive name in the Name
field and enter 2 in the VLAN
Group ID field for the VLAN2
network.
"
The VLAN Group ID field in this screen and the VID field in the IP Setup
screen refer to the same VLAN ID.
3 Since the VLAN2 network is connected to port 10 on the Switch, select Fixed to
configure port 10 to be a permanent member of the VLAN only.
4 To ensure that VLAN-unaware devices (such as computers and hubs) can receive frames
properly, clear the TX Tagging check box to set the Switch to remove VLAN tags before
sending.
5 Click Add to create the static VLAN and click the Save button to save the settings.
5.1.2 Setting Port VID
Use PVID to add a tag to incoming untagged frames received on that port so that the frames
are forwarded to the VLAN group that the tag defines.
In the example network, configure 2 as the port VID on port 10 so that any untagged frames
received on that port get sent to VLAN 2.
