Chapter 11 Spanning Tree Protocol
ES-2024 Series User’s Guide
100

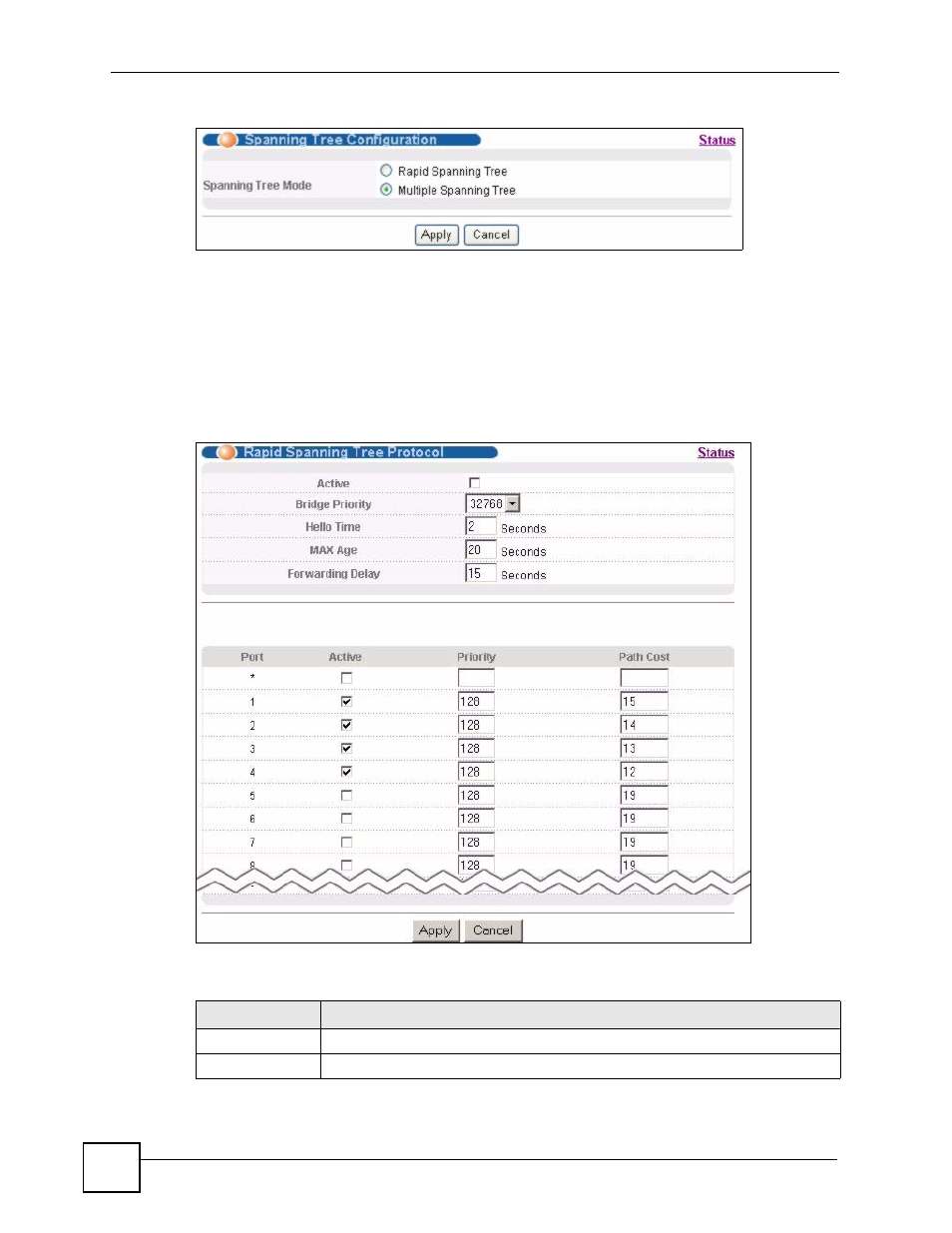

Figure 44 Advanced Application > Spanning Tree Protocol
Select the STP mode you want to configure on the Switch.
11.3 Configure Rapid Spanning Tree Protocol
Use this screen to configure RSTP settings, see Section 11.1 on page 95 for more information
on RSTP. Click RSTP in the Advanced Application > Spanning Tree Protocol screen.
Figure 45 Advanced Application > Spanning Tree Protocol > RSTP
The following table describes the labels in this screen.
Table 23 Advanced Application > Spanning Tree Protocol > RSTP
LABEL DESCRIPTION
Status Click Status to display the RSTP Status screen (see Figure 46 on page 102 ).
Active Select this check box to activate RSTP. Clear this check box to disable RSTP.
