Machine overview, 2 - installation, Phaser 3100mfp/s – Xerox Phaser 3100MFP/S User Manual
Page 19: Machine overview front and back sides
Phaser 3100MFP/S
- 15 -
Machine Overview

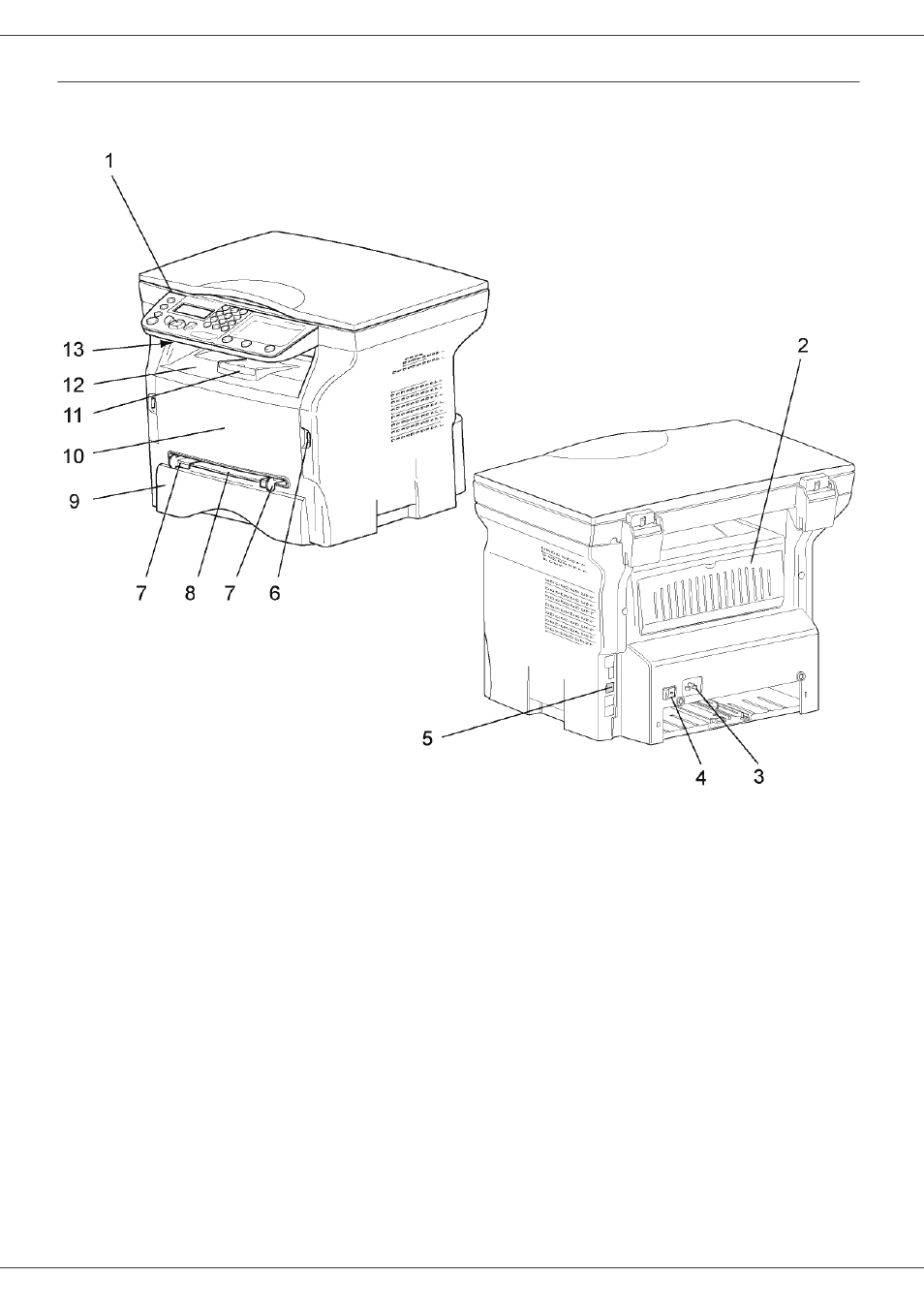

Front and Back sides
1. Control panel
2. Paper jam cover
3. Power supply cord connection
4. On/Off switch
5. Slave USB interface connector (for PC)
6. Master USB interface connector (USB key)
7. Manual paper feed setup guides
8. Manual input tray
9. Paper tray
10. Print cartridge access cover
11. Output support
12. Paper output
13. Smart card insertion slot
