XES Synergix 8825/8830 Printer Operator Manual 5
PRINTER OVERVIEW

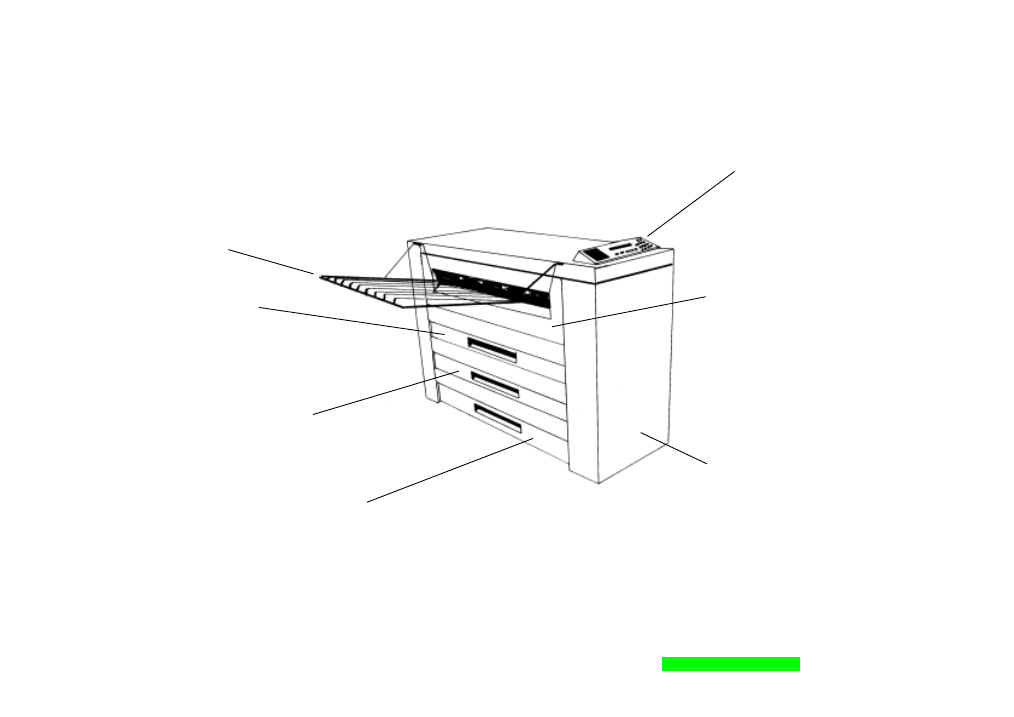

LEFT SIDE VIEW
Drawer 3 (Bottom)
Open to load paper
rolls and to clear
media jams. (Not
available on the
8825.)
Drawer 2 (Middle)
Open to load paper
rolls and to clear
media jams.
(Optional on the
8825.)
Drawer 1 (Top)
Open to load paper
rolls and to clear
media jams.
Output Tray
Supports the prints
in the exit area.
Front Door
Provides an access
to the waste toner
bottle.
Cut Sheet Feed-In
Shelf
Insert the cut sheets
here to bypass the roll
media in drawers.
Lower the cover to
remove jammed media.
(Optional on the 8825.)
Control Panel
Make keypad entries
and read the printer
status and messages
here.
