XES Synergix 8825/8830 Printer Operator Manual 35
CARE
Replacing the Toner Cartridge

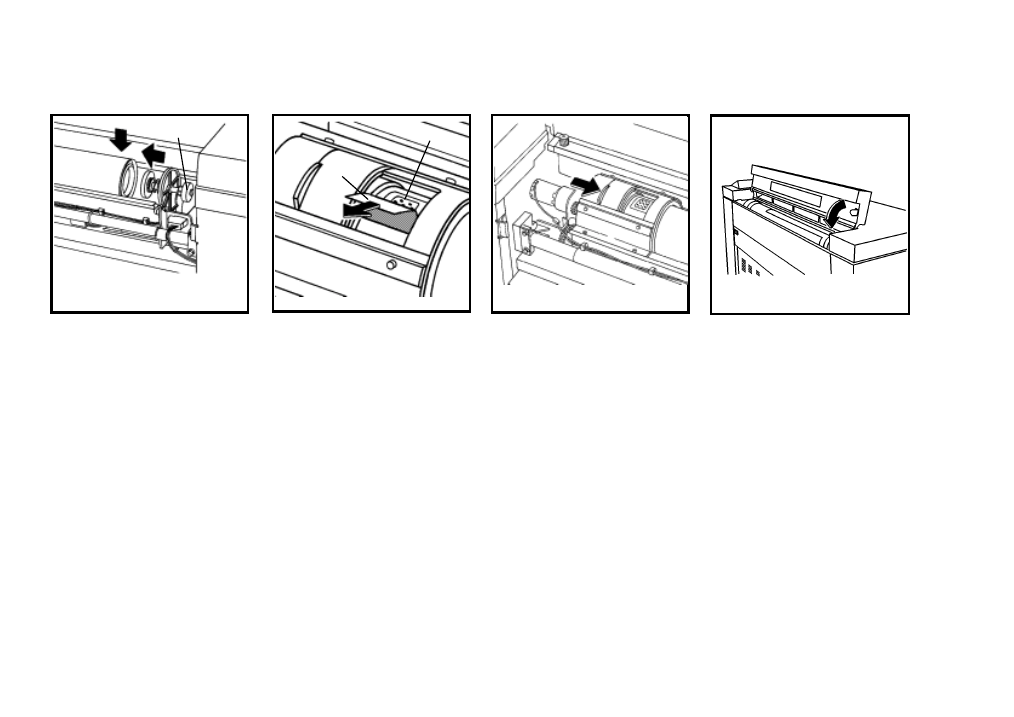

10. Lower the Toner Cartridge into
position while pushing the
plunger (A) toward the front of
the printer, then release the
plunger.
11. Rotate the Toner Cartridge back
and forth until the cartridge locks
into position in the rear drive
collar.
CAUTION
Remove the red cover tape
carefully. Do not remove the clear,
perforated seal.
12. Remove the red cover tape (A)
from the Toner Cartridge; do not
remove the seal (B) under the
tape.
13. Close the cover. 14. Close the Toner Supply Access
Cover on the printer.
B
A
A
