XES Synergix 8825/8830 Printer Operator Manual 12
MEDIA INFORMATION
Loading the Rolls of Media

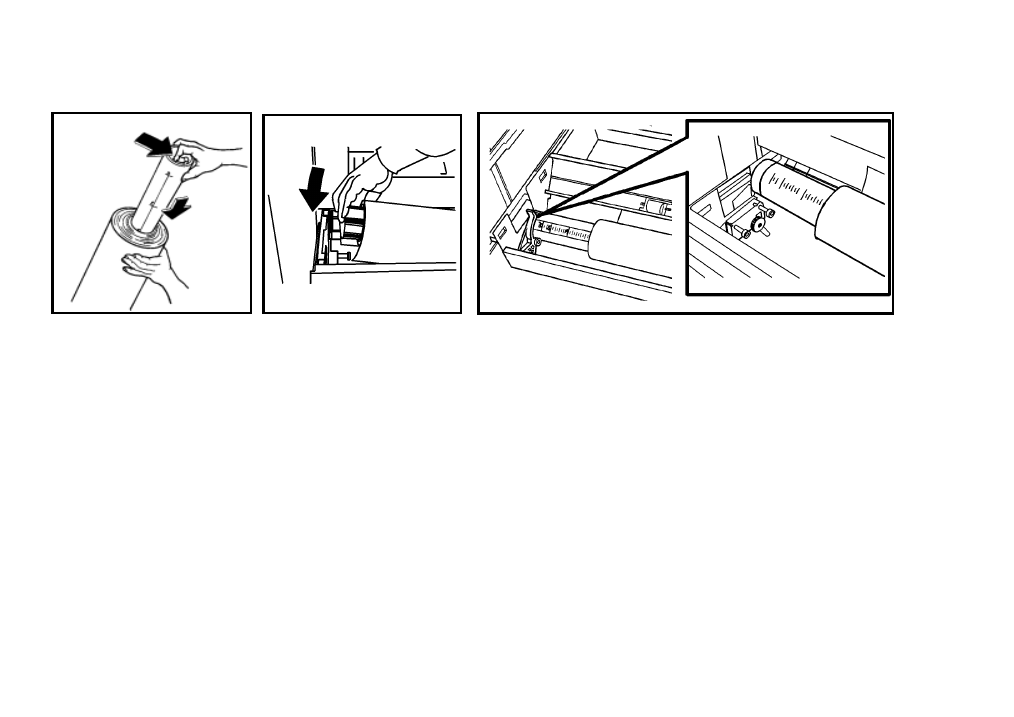

7. Slide the Media Roll Support
Tube into the new roll of media.
8. Squeeze the lever at the end of
the Media Roll Support Tube,
and slide the tube into the roll
until the size indicators on the
tube match the size of the roll.
9. Lift the new roll into the media
drawer, lead edge down and in.
10. Ensure that the Media Roll Support Tube is seated correctly on the
support rollers.
11. Remove the tape from the lead edge of the media roll.
NOTE: Ensure that all of the glue from the tape is removed from the media.
