XES Synergix 8825/8830 Printer Operator Manual 14
MEDIA INFORMATION
Loading the Rolls of Media
18. Push in the Media Roll Drawer.
19. Refer to instructions on the
following page in order to
program the Media View Menu
for the media you loaded in the
drawer.
20. Lower the output tray.

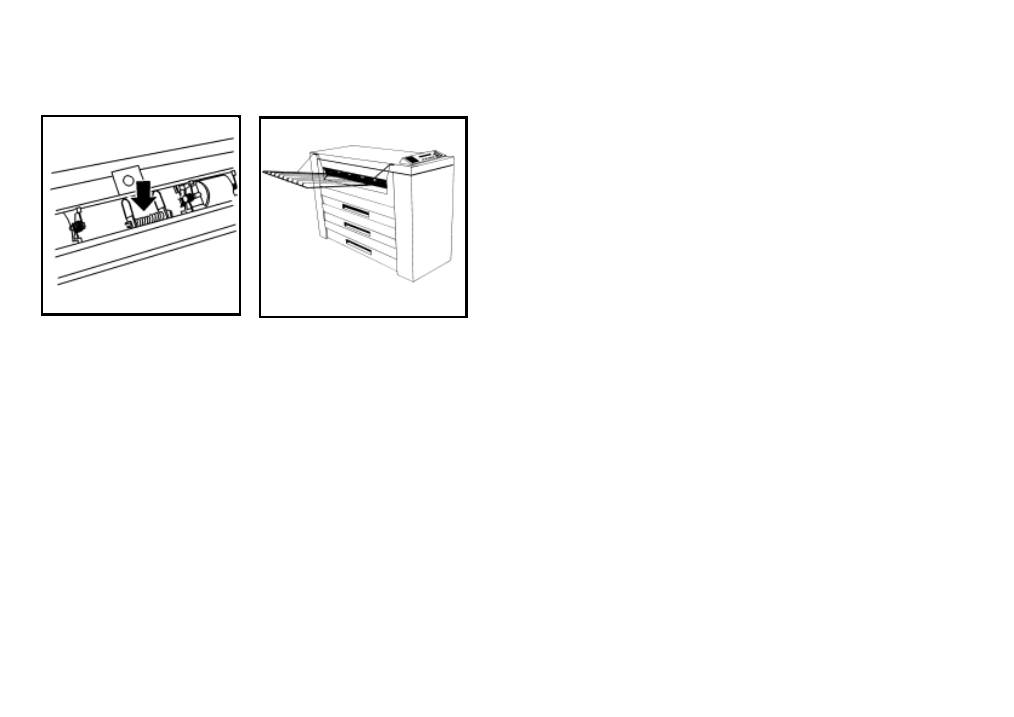

17. Press down on the center of the
baffle in order to lock the Baffle
into position.
NOTE: Ensure that the lead edge of
the media is still aligned in the
registration window.
