9

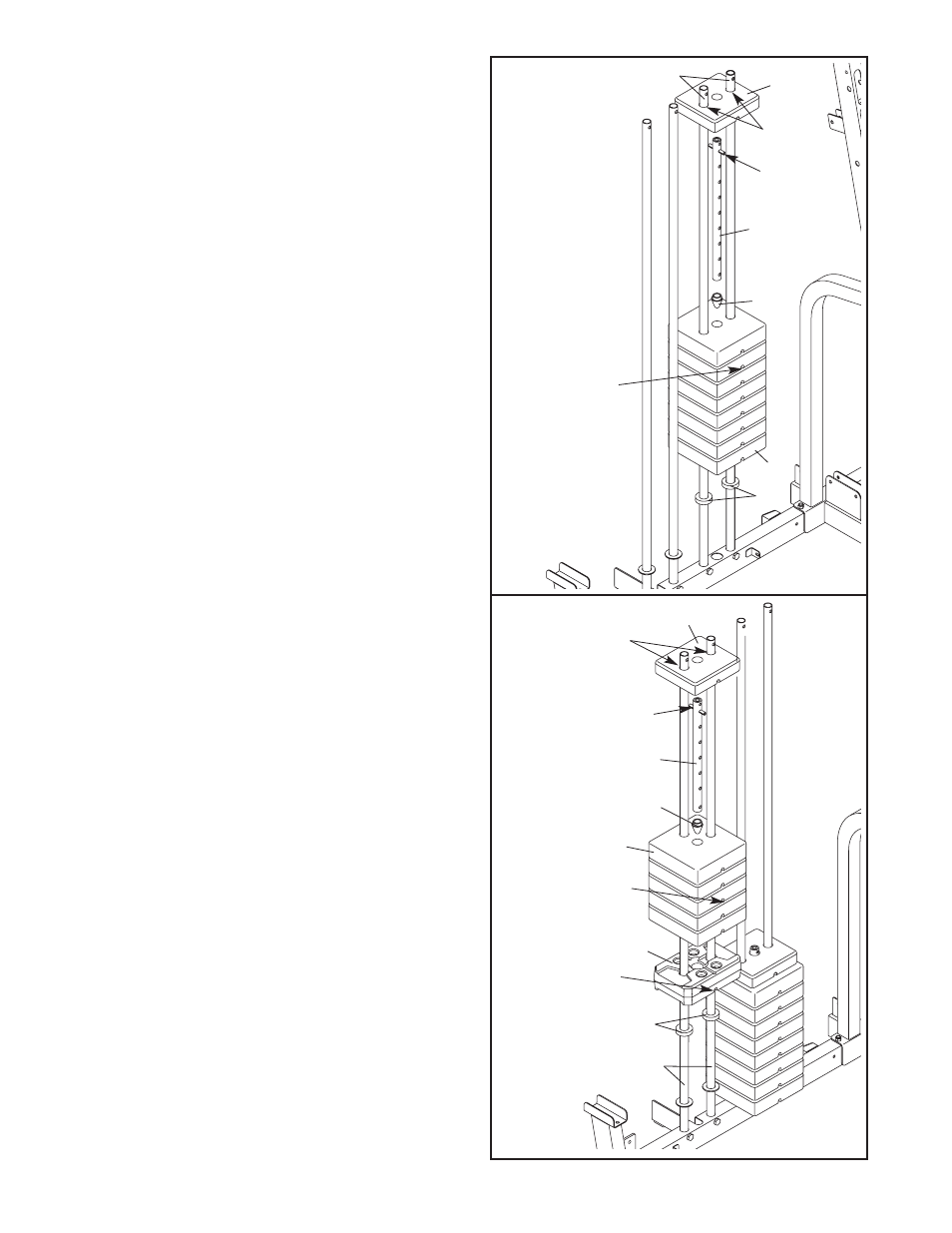

5. Slide two Weight Bumpers (71) onto the Weight
Guides (18).
Slide eight Weights (22) onto the Weight Guides
(18). Make sure the Weights are oriented with
the pin grooves on the side shown.
Press a Weight Tube Bumper (54) into the Long
Weight Tube (23). Insert the Long Weight Tube
into the Weights (22).
Lubricate the indicated holes in a Top Weight (25)
with grease. Slide the Top Weight onto the Weight
Guides (18). Make sure the pin on the Long
Weight Tube (23) rests in the grooves in the
bottom of the Top Weight.
6. Slide two Weight Bumpers (71) onto the Weight
Guides with Rings (19).
Slide the Bottom Weight (21) onto the Weight
Guides with Rings (19). Make sure the Weight is
oriented with the pin groove on the side
shown.
Slide five Weights (22) onto the Weight Guides
with Rings (19). Make sure the Weights are ori-
ented with the pin grooves on the side shown.
Press a Weight Tube Bumper (54) into the Short
Weight Tube (24). Slide the Short Weight Tube
into the Weights (22).
Lubricate the indicated holes in the other Top
Weight (25) with grease. Slide the Top Weight
onto the Weight Guides with Rings (19). Make
sure the pin on the Short Weight Tube (24)
rests in the grooves in the bottom of the Top
Weight.
18
25
23
22
71
54
Pin
Groove
Lubricate
Pin
19
25
24
22
21
71
54
Pin
Groove
Lubricate
Pin
Pin
Groove
5
6
