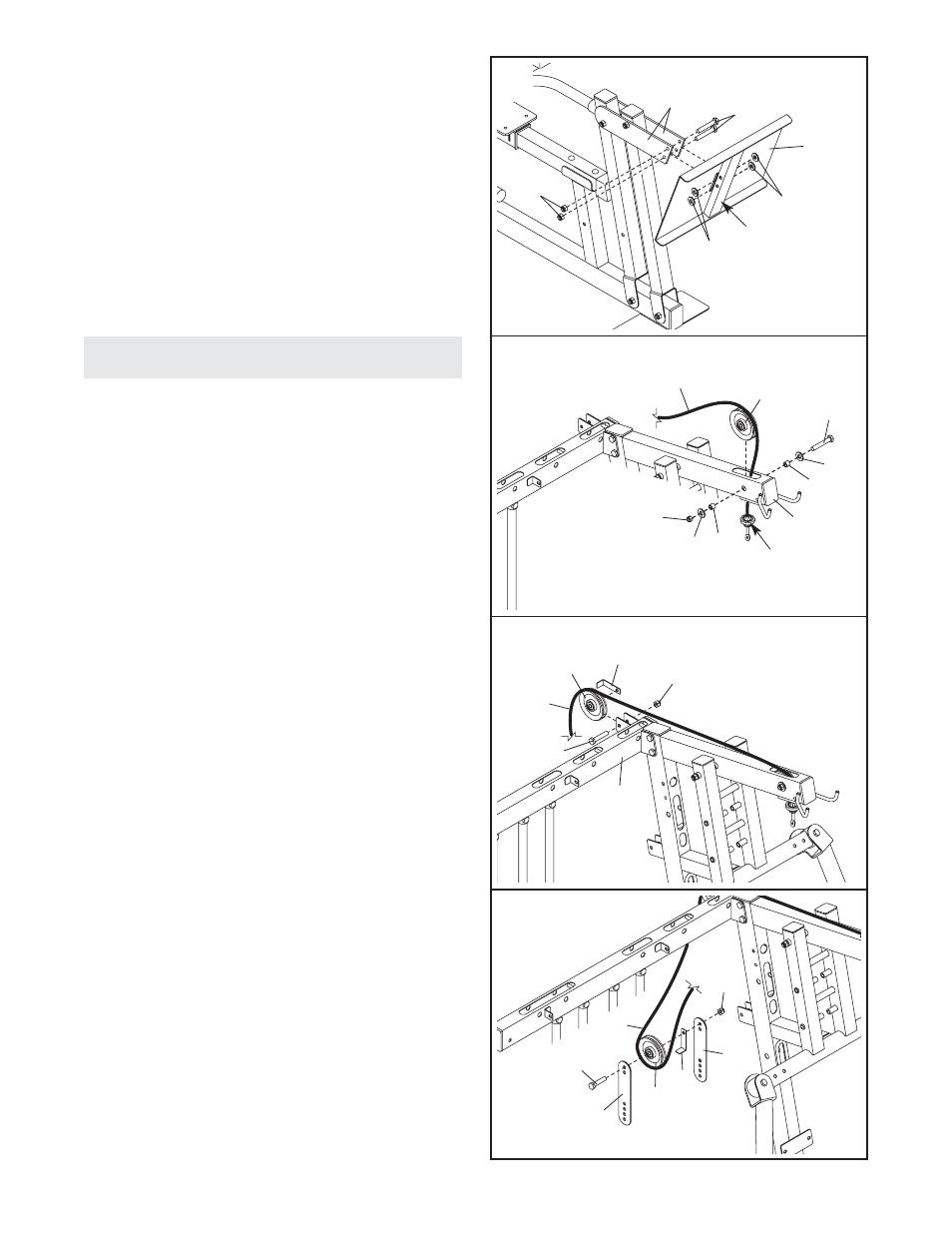

16. Attach the Leg Press Plate (15) to the Leg Press
Brackets (16) with two M10 x 85mm Bolts (96),
four M10 Thick Spacers (70), and two M10 Nylon
Locknuts (101).
Note: The four M10 Thick Spacers (70) must
be between the Leg Press Brackets (16) and
the welded tube on the Leg Press Plate (15).
The two holes in the welded tube must be
closer to the top of the Leg Press Plate.
Tighten the M10 Nylon Locknuts (101) used in
step 15. Do not overtighten the Locknuts; the
leg press arms must be able to pivot easily.
18. Wrap the Lat Cable (62) over a 100mm Pulley
(38). Attach the Pulley and a Long Cable Trap
(68) to the Top Frame (9) with an M10 x 50mm
Bolt (81) and an M10 Nylon Locknut (101). Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
19. Wrap the Lat Cable (62) under a 100mm Pulley
(38). Attach the Pulley and a Long Cable Trap
(68) to the top set of holes in the indicated end of
the two Pulley Plates (41) with an M10 x 50mm
Bolt (81) and an M10 Nylon Locknut (101). Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
17. Refer to the CABLE DIAGRAMS on pages 29
and 30 as you assemble the cables and to
identify the cables.
Identify the Lat Cable (62). Route the Cable up
through the Butterfly Upright (2), so that the ball
is in the indicated location, and around a 100mm
Pulley (38). Attach the Pulley inside the Upright
with an M10 x 65mm Bolt (80), two M10 Washers
(99), two 12.5mm Spacers (69), and an M10
Nylon Locknut (101).
16
70
99
99
2
69
69
62
38
80
Ball
70
Welded
Tube
101
101
101
101
68
38
81
9
62
38
68
41
41
81
62
16
17
18
19
15
Cable Assembly
96
