17

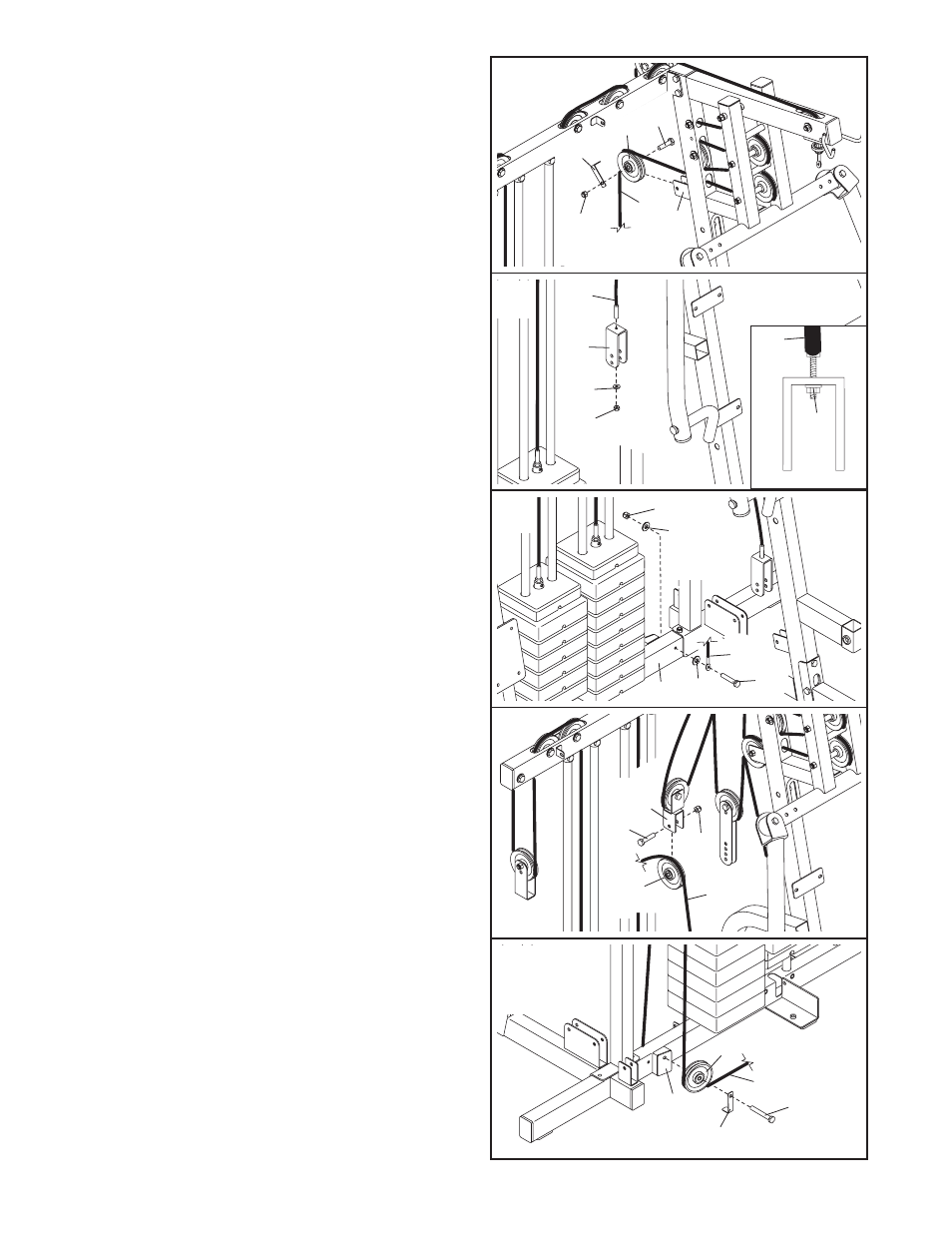

35. Attach the end of the Butterfly Cable (67) to the
“U”-bracket (40) with an M8 Washer (100) and an
M8 Nylon Locknut (87). Note: Do not complete-
ly tighten the Locknut; it should be tightened
so that only two threads of the Cable show
past the Locknut, as shown in the inset draw-
ing.
36. Identify the Lower Short Stack Cable (64).
Attach the Cable to the Base (1) with an M8 x
67mm Shoulder Bolt (90), two M8 Washers (100),
and an M8 Nylon Locknut (87).
37. Wrap the Lower Short Stack Cable (64) over a
100mm Pulley (38). Attach the Pulley to the
Double “U”-bracket (42) with an M10 x 45mm Bolt
(51) and an M10 Nylon Locknut (101).
38. Note: The following steps are shown from the
back of the weight system.
Wrap the Lower Short Stack Cable (64) under a
100mm Pulley (38). Attach the Pulley and a Long
Cable Trap (68) to the Base (1) with an M10 x
45mm Bolt (51). Make sure the Cable Trap is
oriented to hold the Cable in the groove of the
Pulley.
34. Route the Butterfly Cable (67) through the
Butterfly Upright (2) and over a 100mm Pulley
(38). Attach the Pulley and a Long Cable Trap
(68) to the Butterfly Upright with an M10 x 50mm
Bolt (81) and an M10 Nylon Locknut (101). Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
34
35
36
37
38
67
87
81
38
67
2
67
40
87
87
64
90
100
100 1
100
64
64
38
38
68
1
51
51
101
42
68
101
