Weider WESY47330 - Manual (Page 16)

16

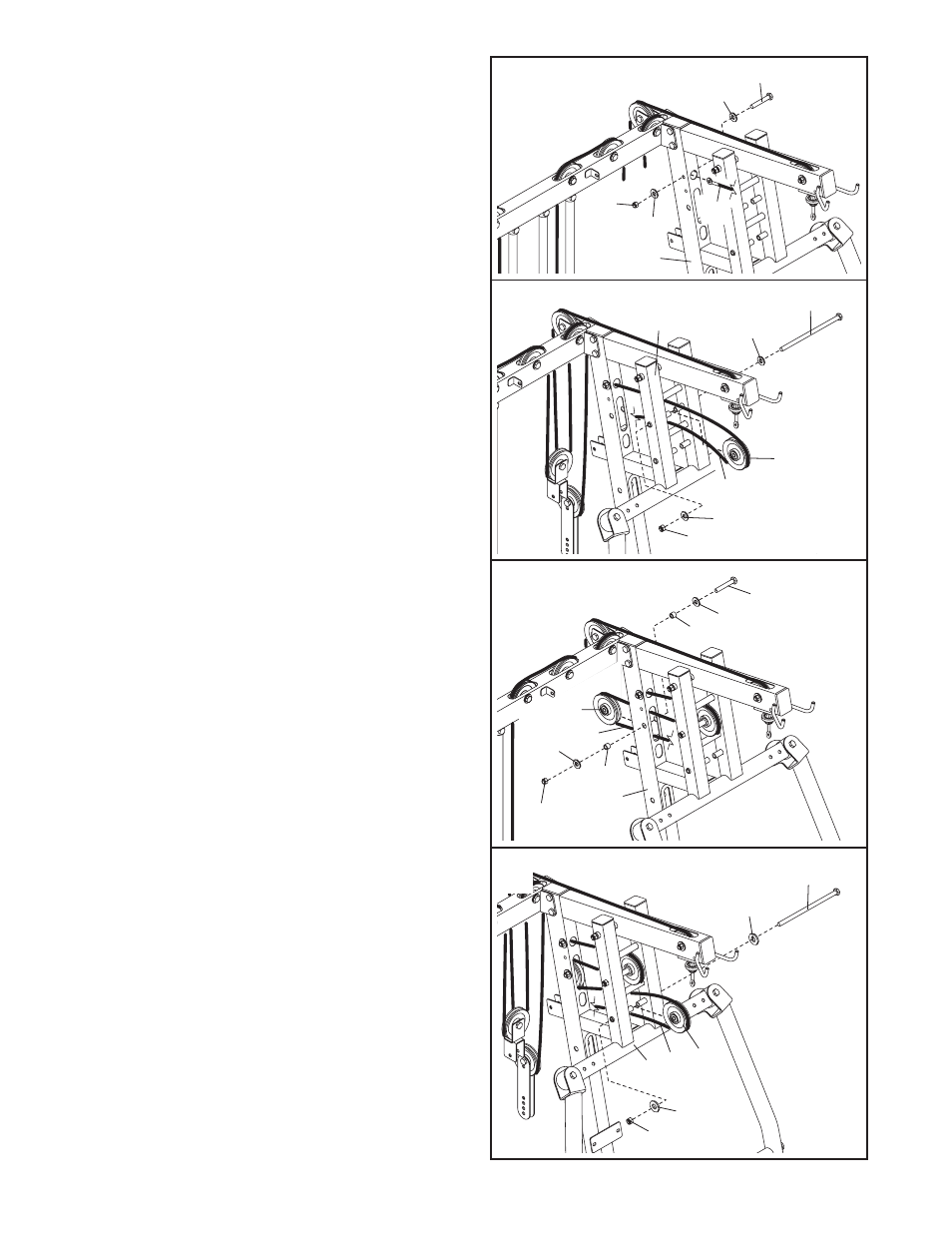

30. Identify the Butterfly Cable (67). Attach the
Cable inside the Butterfly Upright (2) with an M10
x 65mm Bolt (80), two M10 Washers (99), and an
M10 Nylon Locknut (101).
31. Wrap the Butterfly Cable (67) around a 100mm
Pulley (38). Attach the Pulley to the Butterfly
Frame (10) with an M10 x 213mm Bolt (92), two
M10 Washers (99), and an M10 Nylon Locknut
(101).
32. Wrap the Butterfly Cable (67) around a 100mm
Pulley (38). Attach the Pulley to the Butterfly
Upright (2) with an M10 x 65mm Bolt (80), two
M10 Washers (99), two 12.5mm Spacers (69),
and an M10 Nylon Locknut (101).
33. Wrap the Butterfly Cable (67) around a 100mm
Pulley (38). Attach the Pulley to the Butterfly
Frame (10) with an M10 x 213mm Bolt (92), two
M10 Washers (99), and an M10 Nylon Locknut
(101).
30
31
32
80
99
99
67
67
2
92
38
99
99
10
101
101
101
99
99
38
69
69
80
2
33
67
92
38
99
99
10
101
67
