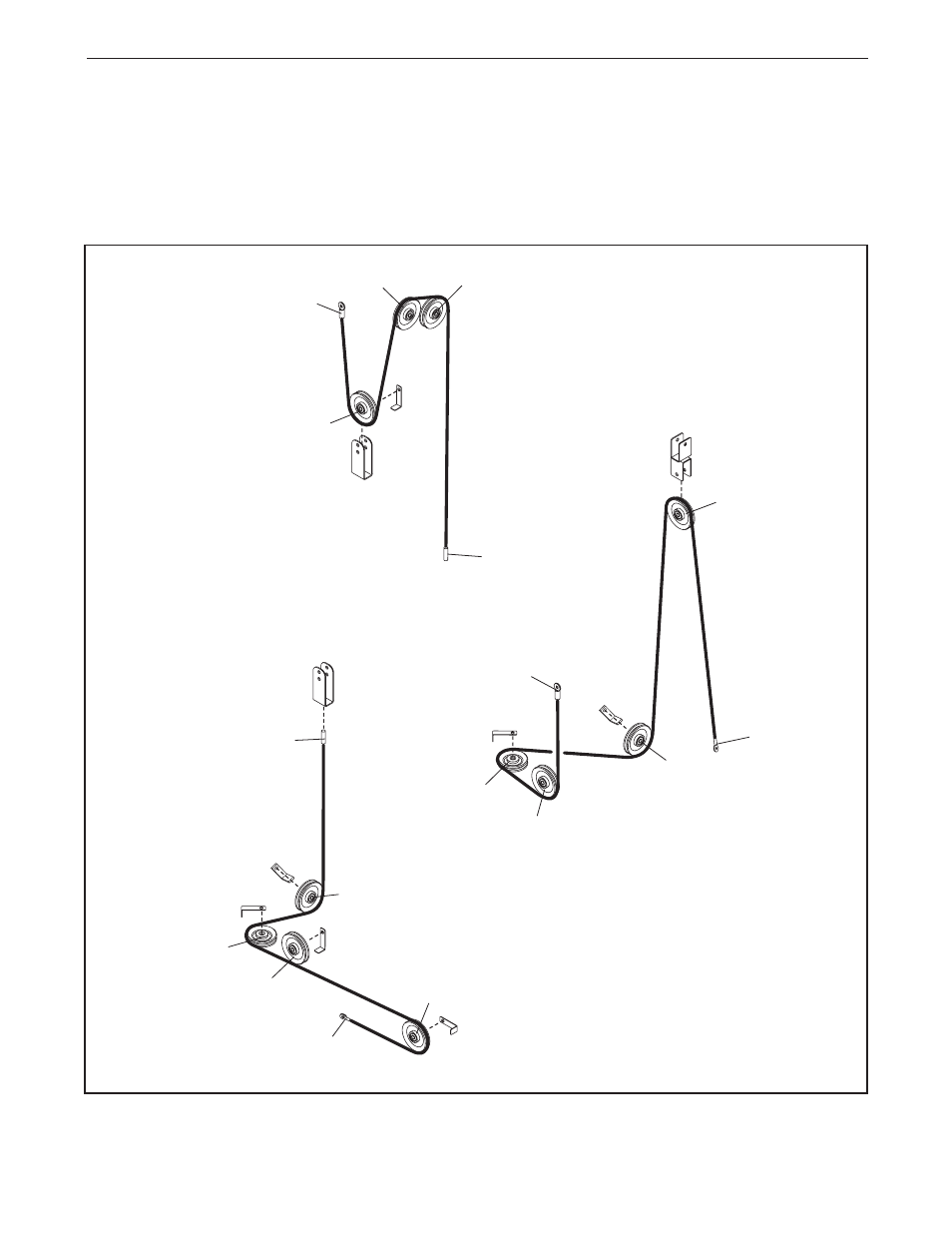

CABLE DIAGRAMS

The cable diagrams show the approximate lengths and the proper routing of the Lat Cable (62), Upper Short
Stack Cable (63), Lower Short Stack Cable (64), Leg Press Cable (65), Ab Cable (66), and Butterfly Cable (67).
Use the diagrams to make sure that the cables and the cable traps have been assembled correctly. If the cables
have not been correctly routed, the weight system will not function properly and damage may occur. The num-
bers show the correct route for each cable. Make sure that the cable traps do not touch or bind the cables.

2

3

4

5

6

1

2

4

5

6

1

2

Upper Short Stack Cable (63)

Length: 82 3/4 inches

Lower Short Stack Cable (64)

Length: 153 1/2 inches

Leg Press Cable (65)

Length: 119 inches

3

1

3

4

5
