19

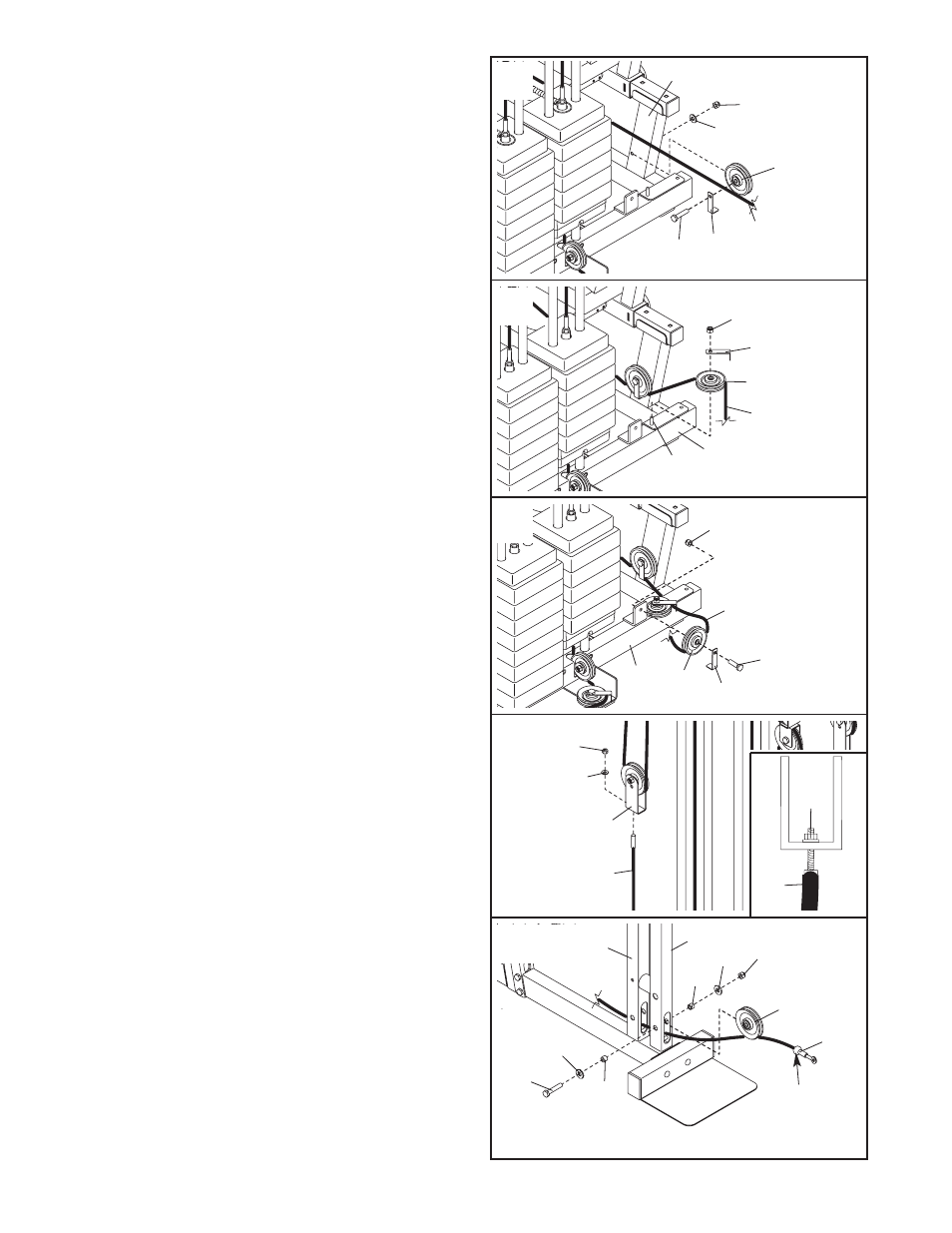

44. Note: The following steps are shown from the
back of the weight system.
Route the Leg Press Cable (65) under a 100mm
Pulley (38). Attach the Pulley and a Long Cable
Trap (68) to the Leg Press Base (3) with an M10
x 92mm Bolt (55), an M10 Washer (99), and an
M10 Nylon Locknut (101). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
46. Wap the Leg Press Cable (65) under a 90mm
Pulley (39). Attach the Pulley and a Short Cable
Trap (48) to the Base (1) with an M10 x 50mm
Bolt (81) and an M10 Nylon Locknut (101). Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
45. Wap the Leg Press Cable (65) around a 90mm
Pulley (39). Attach the Pulley and a Short Cable
Trap (48) to the M10 x 121mm Carriage Bolt (49)
in the Base (1) with an M10 Nylon Locknut (101).
Make sure the Cable Trap is oriented to hold
the Cable in the groove of the Pulley.
44
45
46
47
48
47. Attach the end of the Leg Press Cable (65) to the
“U”-bracket (40) with an M8 Washer (100) and an
M8 Nylon Locknut (87). Note: Do not complete-
ly tighten the Locknut; it should be tightened
so that only two threads of the Cable show
past the Locknut, as shown in the inset draw-
ing.
65
65
66
Large
Ball
38
69
69
99
99
5
7
80
101
40
87
100
87
48. Identify the Ab Cable (66). Route the Cable
under a 100mm Pulley (38) and through the Leg
Lever (7) and the Leg Lever Base (5). Attach the
Pulley inside the Leg Lever with an M10 x 65mm
Bolt (80), two M10 Washers (99), two 12.5mm
Spacers (69), and an M10 Nylon Locknut (101).
Make sure the large ball on the Cable is in the
position shown.
101
101
99
38
68
48
39
65
49
1
55
65
3
101
65
39
1
48
81
