Weider WESY47330 User Manual
Page 23

23

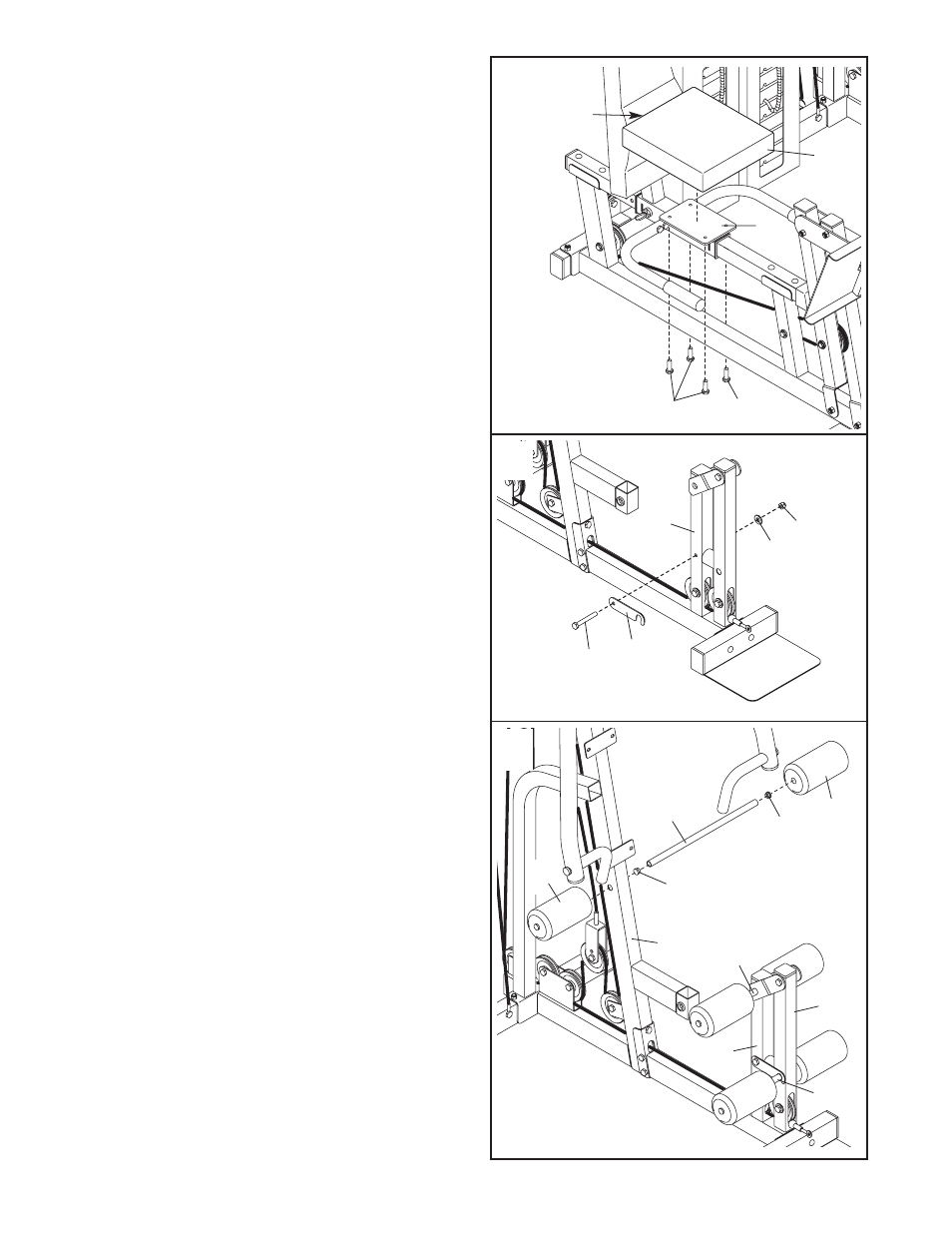

60. Attach the Leg Lever Lock (61) to the Leg Lever
Base (5) with an M10 x 68mm Bolt (84), an M10
Washer (99), and an M10 Nylon Locknut (101).
Do not overtighten the Locknut; the Leg Lever
Lock must be able to pivot easily.
59. Attach a Seat (30) to the Sliding Seat Frame (8)
with four M6 x 16mm Bolts (89). Note: The holes
in the Seat are not centered; orient the Seat
so that the holes are closer to the indicated
end.
59
60
61. Press two 19mm Round Inner Caps (57) into a
Pad Tube (33). Insert the Pad Tube into the
Butterfly Upright (2). Slide two Round Pads (34)
onto the Pad Tube.
Repeat this step with the other two Pad Tubes
(33), the Leg Lever Base (5), and the Leg
Lever (7).
61
30
Holes should
be closer to
this end
89
61
84
33
33
33
7
5
2
57
57
34
5
99
101
89
8
34
