15

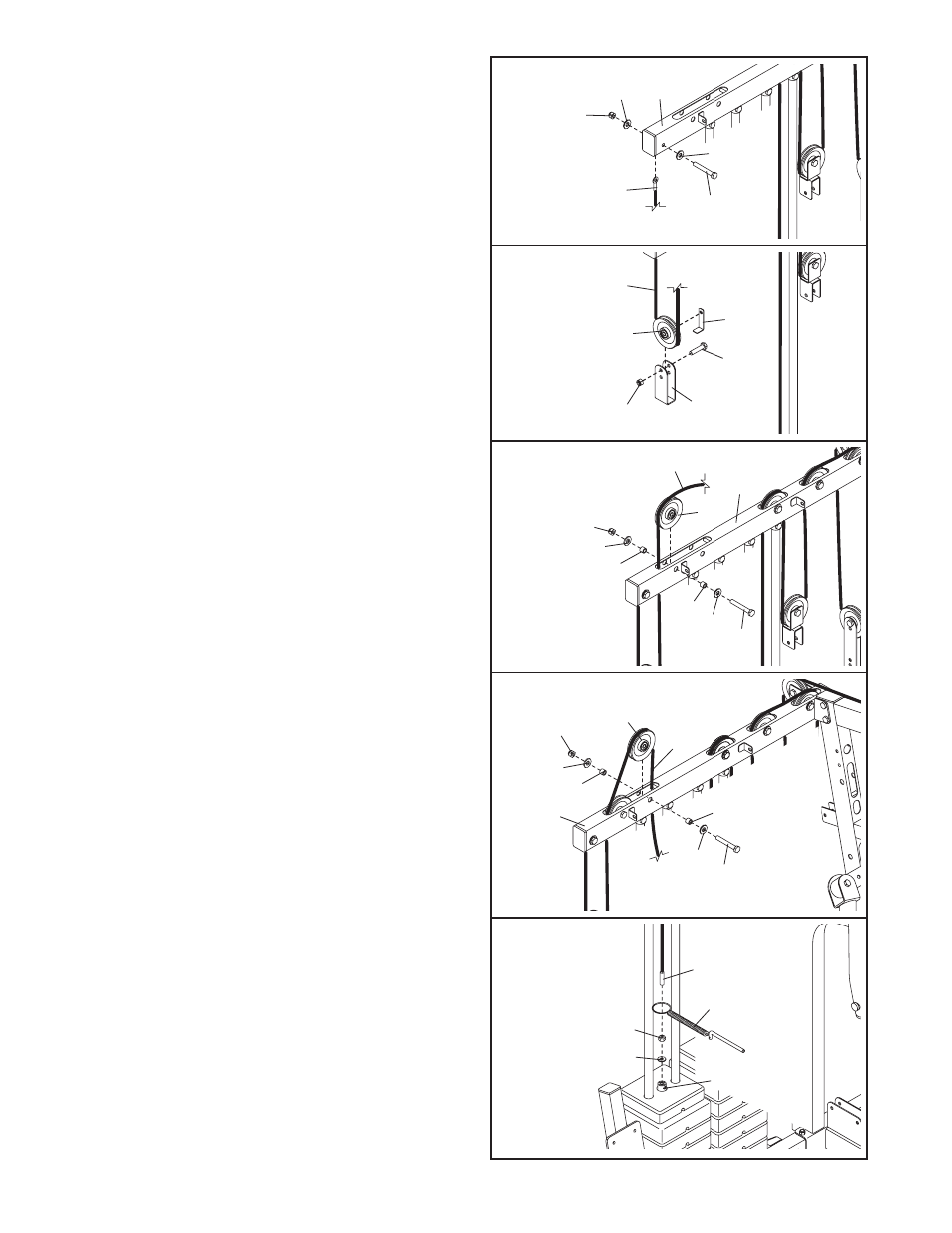

25. Identify the Upper Short Stack Cable (63).
Attach the Cable inside the Top Frame (9) with an
M10 x 65mm Bolt (80), two M10 Washers (99),
and an M10 Nylon Locknut (101).
27. Route the Upper Short Stack Cable (63) up
through the Top Frame (9) and over a 100mm
Pulley (38). Attach the Pulley inside the Top
Frame with an M10 x 65mm Bolt (80), two M10
Washers (99), two 12.5mm Spacers (69), and an
M10 Nylon Locknut (101).
28. Route the Upper Short Stack Cable (63) over a
100mm Pulley (38) and down through the Top
Frame (9). Attach the Pulley inside the Top Frame
with an M10 x 65mm Bolt (80), two M10 Washers
(99), two 12.5mm Spacers (69), and an M10
Nylon Locknut (101).
29. Set the tether on the other Weight Pin (98) over
the Short Weight Tube (24). Set a 50mm Washer
(95) on the Weight Tube.
Thread an M12 Nut (58) all the way onto the
Upper Short Stack Cable (63). Screw the Cable
partway into the Short Weight Tube (24). Tighten
the Nut against the 50mm Washer (95).
26. Wrap the Upper Short Stack Cable (63) under a
100mm Pulley (38). Attach the Pulley and a Long
Cable Trap (68) to the indicated hole in a “U”-
bracket (40) with an M10 x 50mm Bolt (81) and
an M10 Nylon Locknut (101). Make sure the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
25
26
27
28
29
80
101
101
99
99
63
9
63
38
68
81
40
80
99
69
99
9
101
69
38
63
80
99
69
99
9
101
69
38
63
63
98
58
24
95
