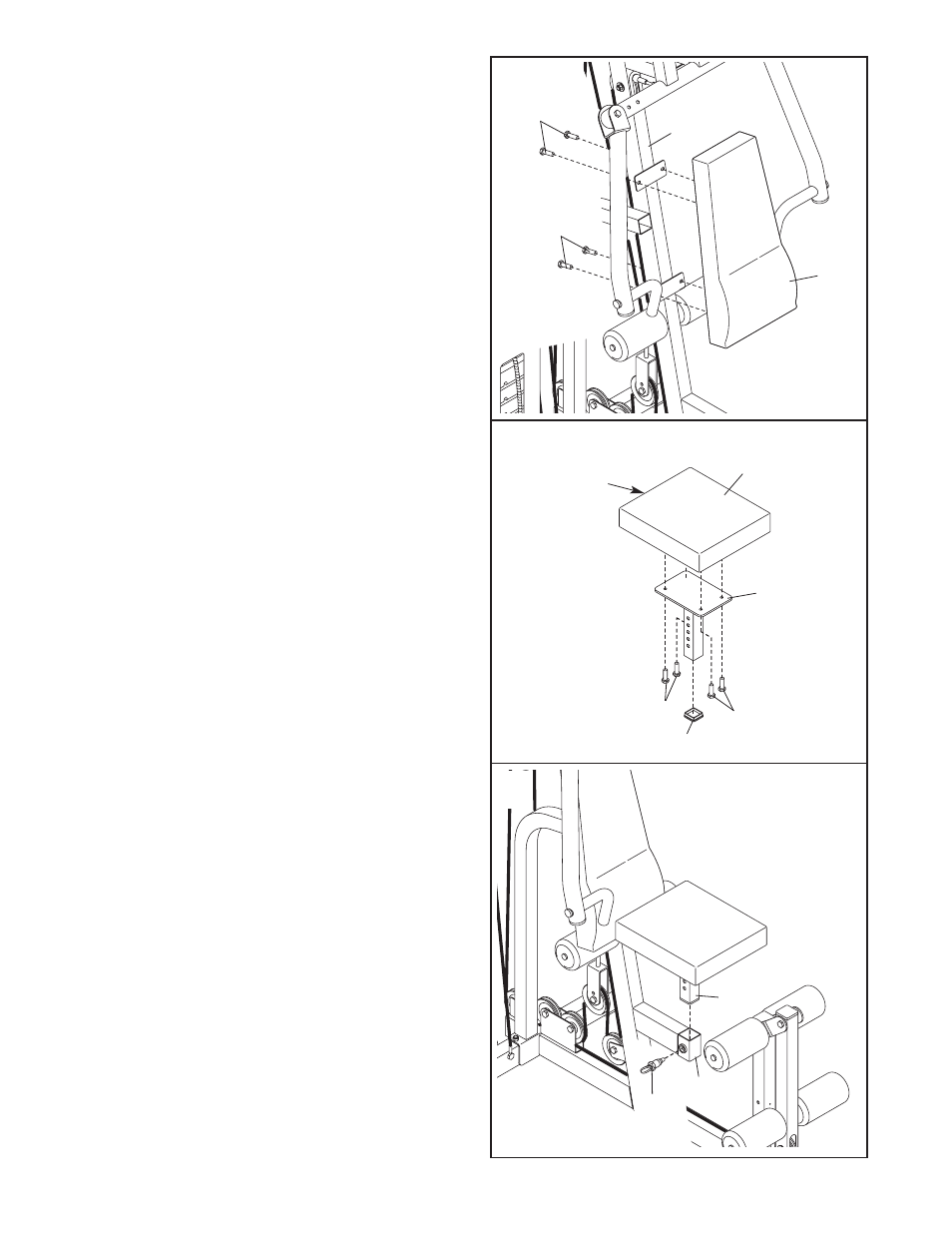

63. Press a 45mm Square Inner Cap (50) into the
Seat Post (27).
Attach the other Seat (30) to the Seat Post (27)
with four M6 x 16mm Bolts (89). Note: The holes
in the Seat are not centered; orient the Seat
so that the holes are closer to the indicated
end.
62. Attach the Butterfly Backrest (31) to the Butterfly
Upright (2) with four M6 x 16mm Bolts (89).
64. Attach a “T”-handle (59) to the Butterfly Upright
(2).
Pull the “T”-handle (59) out as far as it will go and
slide the Seat Post (27) into the Butterfly Upright
(2). Engage the “T”-handle into the Seat Post.
64
63
62
89
2
31
89
27
Holes should
be closer to
this end
30
50
27
59
2
89
89
