Weider WESY47330 - Manual (Page 18)

18

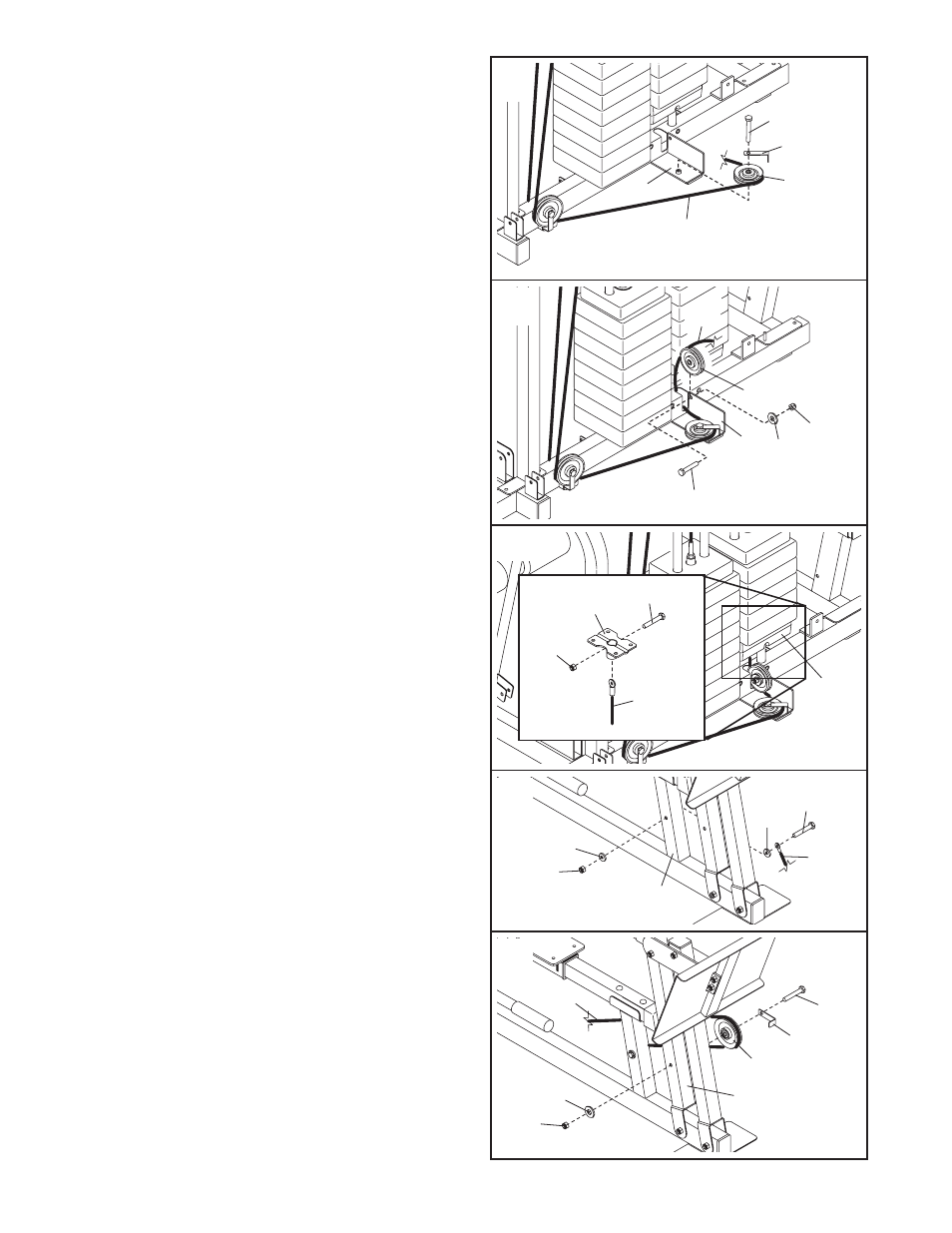

39. Wrap the Lower Short Stack Cable (64) around a
90mm Pulley (39). Attach the Pulley and a Short
Cable Trap (48) to the Base (1) with an M10 x
45mm Bolt (51). Make sure the Cable Trap is
oriented to hold the Cable in the groove of the
Pulley.
41. Locate the Weight Plate (20) that is attached
to the bottom of the Bottom Weight (21).
See the inset drawing. Attach the end of the
Lower Short Stack Cable (64) to the Weight Plate
(20) with an M10 x 45mm Bolt (51) and an M10
Nylon Locknut (101).
42. Identify the Leg Press Cable (65). Attach the
Cable to the Leg Press Base (3) with an M8 x
67mm Shoulder Bolt (90), two M8 Washers (100),
and an M8 Nylon Locknut (87).
43. Wrap the Leg Press Cable (65) around a 100mm
Pulley (38). Attach the Pulley and a Large Cable
Trap (68) to the Rear Press Arm (13) with an M10
x 92mm Bolt (55), an M10 Washer (99), and an
M10 Nylon Locknut (101). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
40. Wrap the Lower Short Stack Cable (64) under a
90mm Pulley (39). Attach the Pulley to the Base
(1) with an M10 x 45mm Bolt (51), an M10
Washer (99), and an M10 Nylon Locknut (101).
39
40
41
42
64
39
39
51
99
51
20
64
21
101
101
1
48
1
51
100
101
99 13
38
68
55
65
100
87
3
90
65
43
64
