11

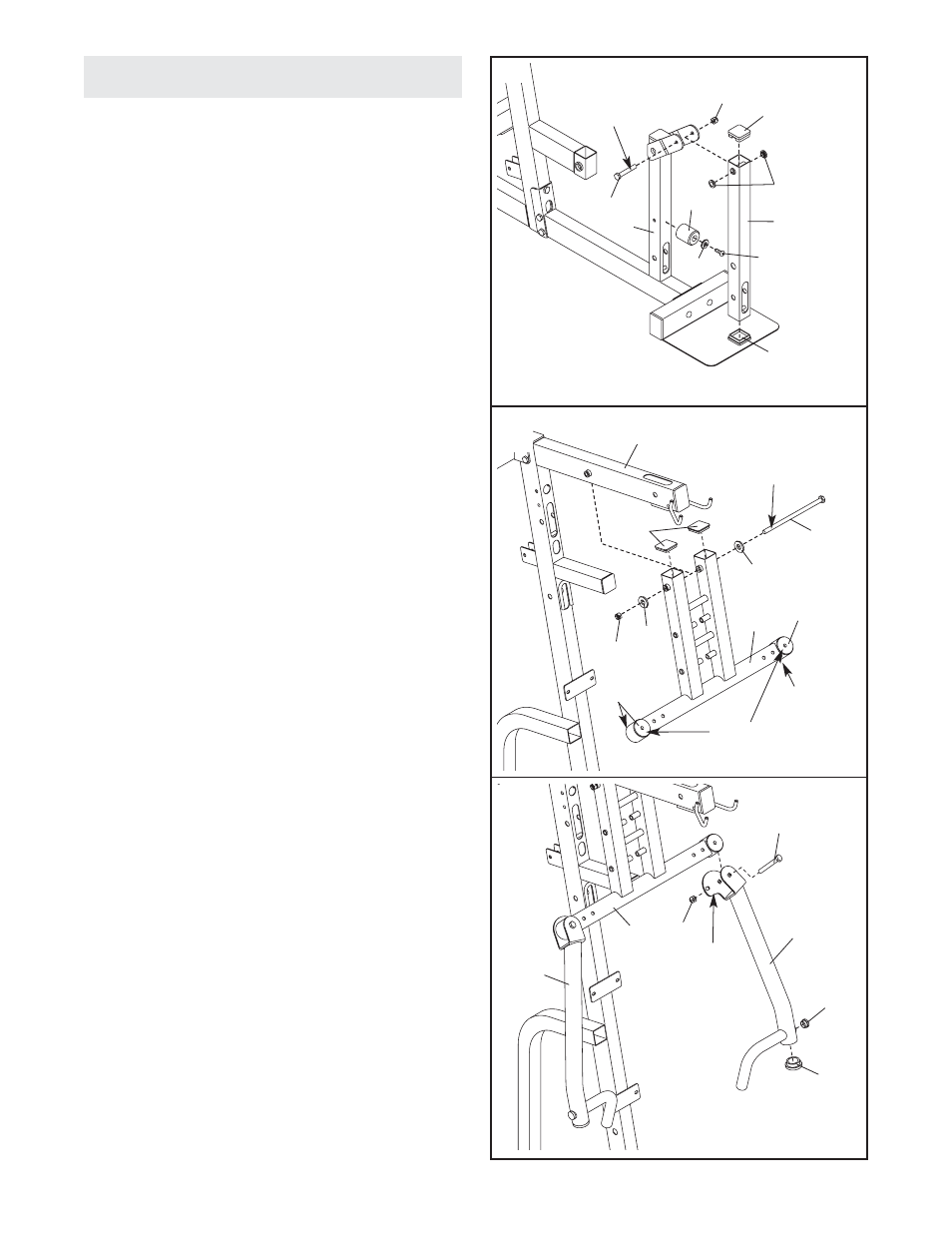

10. Attach the Leg Lever Bumper (60) to the Leg
Lever Base (5) with an M4 x 25mm Self-tapping
Screw (103) and an M4 Washer (104).
Press two 50mm Square Inner Caps (45) and two
M10 Round Bushings (79) into the Leg Lever (7).
Lubricate an M10 x 85mm Bolt (96) with grease.
Attach the Leg Lever (7) to the Leg Lever Base
(5) with the Bolt and an M10 Nylon Locknut (101).
Do not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
12. Identify the Left Butterfly Arm (11) by the position
of the indicated bracket. Press a 50mm Round
Inner Cap (52) and a 25mm Round Inner Cap
(76) into the Butterfly Arm.
Attach the Left Butterfly Arm (11) to the Butterfly
Frame (10) with an M10 x 82mm Carriage Bolt
(93) and an M10 Nylon Locknut (101). Do not
overtighten the Locknut; the Butterfly Arm
must be able to pivot easily.
Repeat this step with the Right Butterfly Arm
(12).
11. Press two 50mm Square Inner Caps (45) into the
Butterfly Frame (10).
Lubricate an M10 x 225mm Bolt (86) with grease.
Attach the Butterfly Frame (10) to the Butterfly
Upright (2) with the Bolt, two M10 Washers (99),
and an M10 Nylon Locknut (101). Do not over-
tighten the Locknut; the Butterfly Frame must
be able to pivot easily.
Lubricate the four 56mm Round Bushings (53)
with grease.
5
96
79
60
103
104
101
7
45
45
86
Lubricate
Lubricate
99
99
10
53
53
53
45
2
101
101
Bracket
Lubricate
10
11
10
93
76
52
11
12
12
Arm Assembly
