12

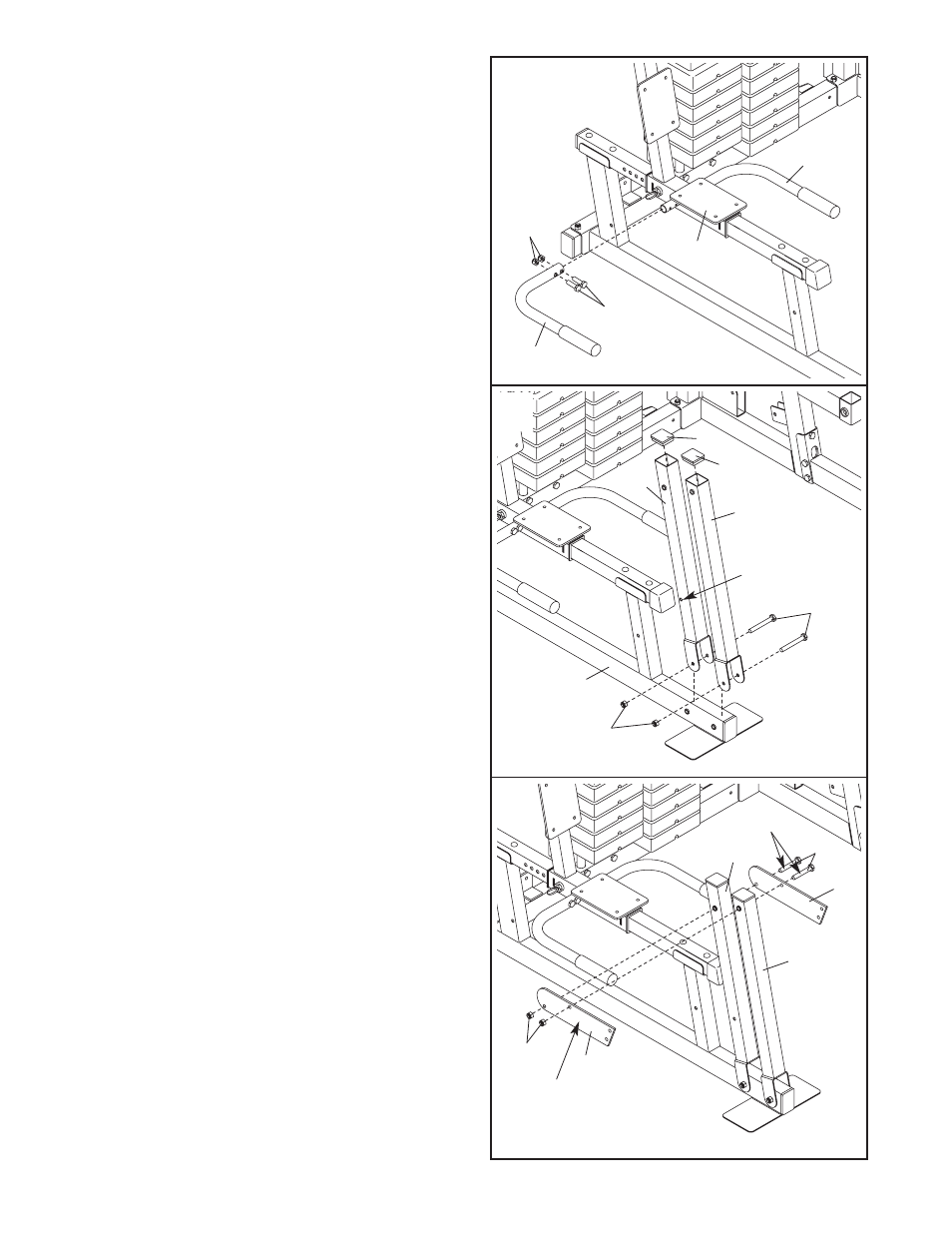

13. Attach a Seat Arm (26) to the Sliding Seat Frame

(8) with two M6 x 35mm Bolts (83) and two M6
Nylon Locknuts (102).

Repeat with the other Seat Arm (26).

15. Lubricate wo M10 x 80mm Bolts (110) with

grease. Attach the two Leg Press Brackets (16) to
the Press Arms (13, 14) with the Bolts and two
M10 Nylon Locknuts (101). Do not tighten the
Locknuts yet. Make sure the warining decal is
in the location shown.

14. Press a 50mm Thick Angled Cap (109) into the

top of the Rear Press Arm (13). Press a 50mm
Angled Cap (108) into the top of the Front Press
Arm (14).

Lubricate an M10 x 77mm Bolt (106) with grease.
Attach the Rear Press Arm (13), which has a hole
in the lower area, to the Leg Press Base (3) with
the Bolt and an M10 Nylon Locknut (101). Do not
overtighten the Locknut; the Press Arm must
be able to pivot easily.

Attach the Front Press Arm (14) to the Leg
Press Base (3) in the same manner.

102

83

8

26

26

109

108

106

Hole

3

14

13

101

110

Lubricate

16

16

Warning

Decal

13

14

101

13

14

15
