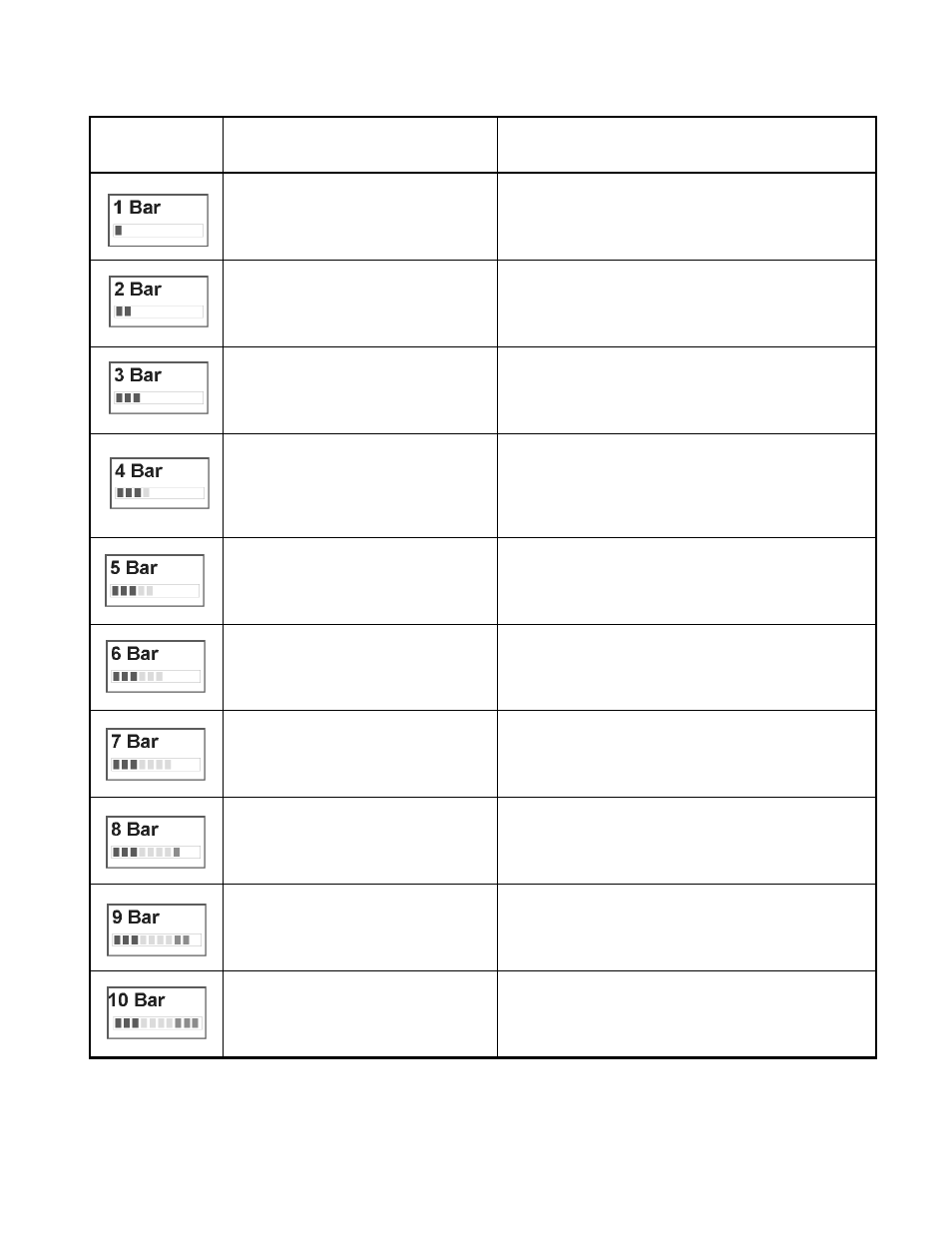

MACHINE TROUBLESHOOTING- CONTROLLER FAULT CODES
86317500 CHARIOT SCRUBBER 11/15/08
4-26
ERROR
CODE
DELUXE
PROBLEM SOLUTION
LOW BATTERY VOLTAGE
THE BATTERY NEEDS CHARGING OR THERE IS A BAD
CONNECTION TO THE BATTERY
TRACTION MOTOR DISCONNECTED
THE TRACTION MOTOR HAS A BAD CONNECTION,
CHECK CONNECTIONS TO MOTOR
BRUSH MOTOR DISCONNECTED
THE BRUSH MOTOR HAS A BAD CONNECTION, CHECK
CONNECTIONS TO MOTOR
AUX FAULT
CHECK AUX OUTPUT DEVICES, CHECK ALL
ASSOCIATED WIRING TO AUX DEVICES
VACUUM MOTOR DISCONNECTED
THE VACUUM MOTOR HAS A BAD CONNECTION,
CHECK CONNECTIONS TO MOTOR
CONTROL SYSTEM INHIBITED
THE TRIO IS BEING INHIBITED FROM DRIVING, IE, ON-
BOARD CHARGER IS IN USE
THROTTLE TRIP ERROR
THE THROTTLE IS DEFLECTED OR ASSOCIATED WIRING
HAS A BREAK OR SHORT CIRCUIT
CONTROL SYSTEM TRIP
THE CONTROL SYSTEM IS IN ERROR, CHECK ALL
CONNECTIONS TO CONTROLLER
SOLENOID BRAKE
THE SOLENOID HAS A BAD CONNECTION , CHECK
CONNECTION TO BRAKE
HIGH BATTERY VOLTAGE
EXCESSIVE BATTERY VOLTAGE, CHECK FOR POOR
BATTERY CONDITION
