12 HP ProLiant DL360 Generation 4 Server Reference and Troubleshooting Guide
Item Description Status
7 UID button/LED Blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.

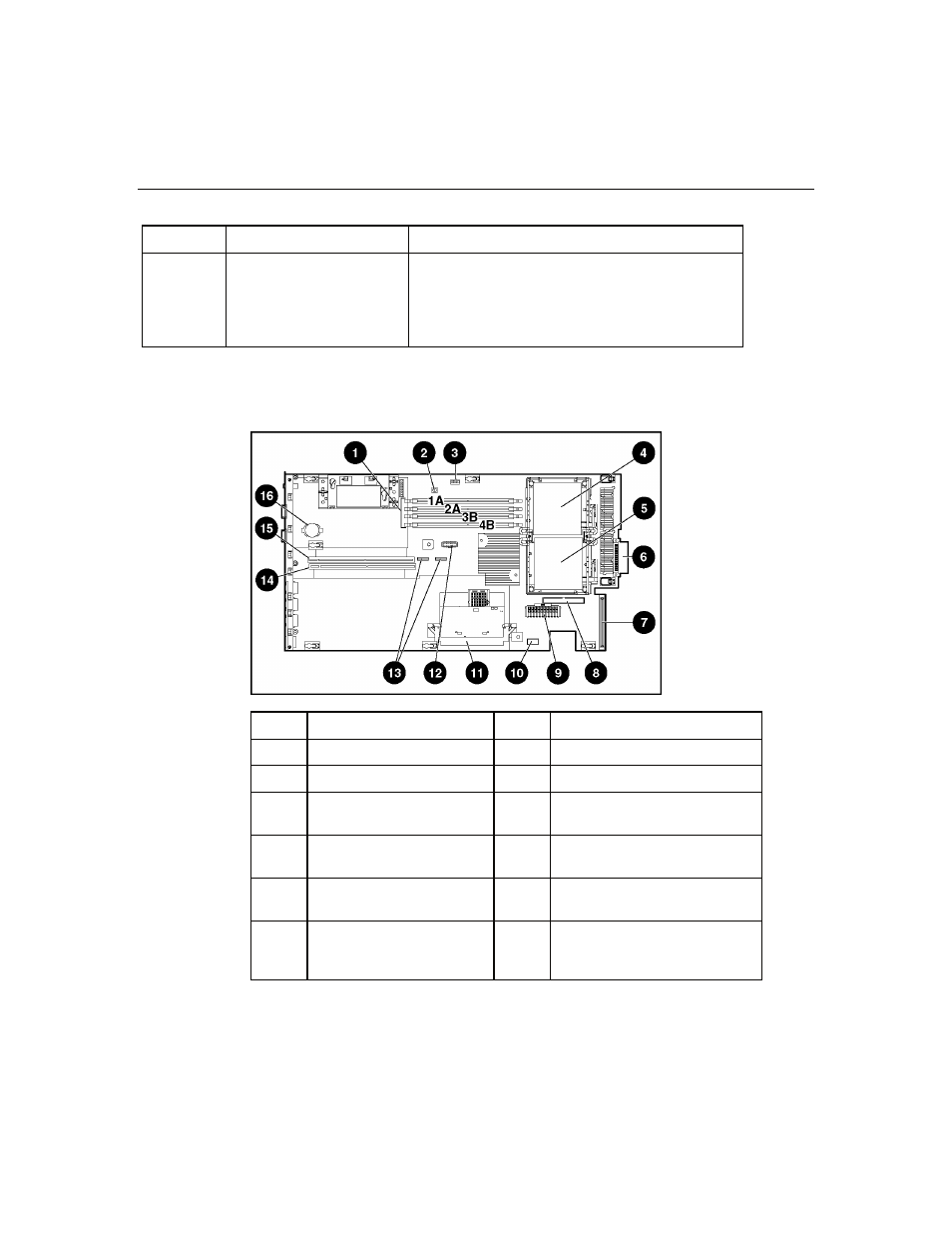

System Board Components
Item Description Item Description
1 DIMM slots (1-4) 9 Power supply connector
2 NMI switch 10 Power supply signal connector
3 System maintenance
switch (SW2)
11 Smart Array 6i memory
module connector*
4 Processor 1 socket 12 Remote management
connector
5 Processor 2 socket 13 SATA connectors (SATA
model only)
6 Processor zone fan
module connector 14 PCI riser board assembly
connector (for slot 2 riser
board)
