Wolf Appliance Company SO30F/S - Manual (Page 67)

W O L F D U A L F U E L R A N G E S
67
13"
(330)
LOCATION OF
ELECTRICAL
36"
(914)
36 7 / 8 "
(937) TO
COOKING
SURFACE
30" min (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
VENTILATION HOOD
18" min (457)
TO COUNTERTOP
LOCATION OF GAS AND
ELECTRICAL EXTENDS 3" (76)
ON FLOOR FROM BACK WALL
30" (762)
FINISHED ROUGH
OPENING WIDTH
3 1 / 4 "
(83)
8 1 / 2 "
(216)
10" (254)
LOCATION
OF GAS
SUPPLY
30" min (762) TO
36" max (914)
TO BOTTOM OF
VENTILATION HOOD
ISLAND INSTALLATIONS: 12" (305) MINIMUM
CLEARANCE FROM BACK OF RANGE TO
COMBUSTIBLE REAR WALL ABOVE COUNTERTOP–
0" (0) TO NON-COMBUSTIBLE MATERIALS
13" max
(330)
6" min (152)
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
29 7 / 8 " (759)
OVERALL WIDTH
41 7 / 8 "
(1064)
WITH 5"
RISER
46 7 / 8 "
(1191)
WITH 10"
RISER
56 7 / 8 "
(1445)
WITH 20"
RISER
47" (1194)
24 1 / 4 "
(616)
27 1 / 2 " (699)
9 1 / 4 "
(235)
29 1 / 2 " (749)
OVERALL DEPTH
LEGS AND CASTERS ALLOW
2 1 / 8 " (54) HEIGHT ADJUSTMENT
35 7 / 8 "
(911)
36 7 / 8 "
(937)
OVERALL
HEIGHT TO
COOKING
SURFACE

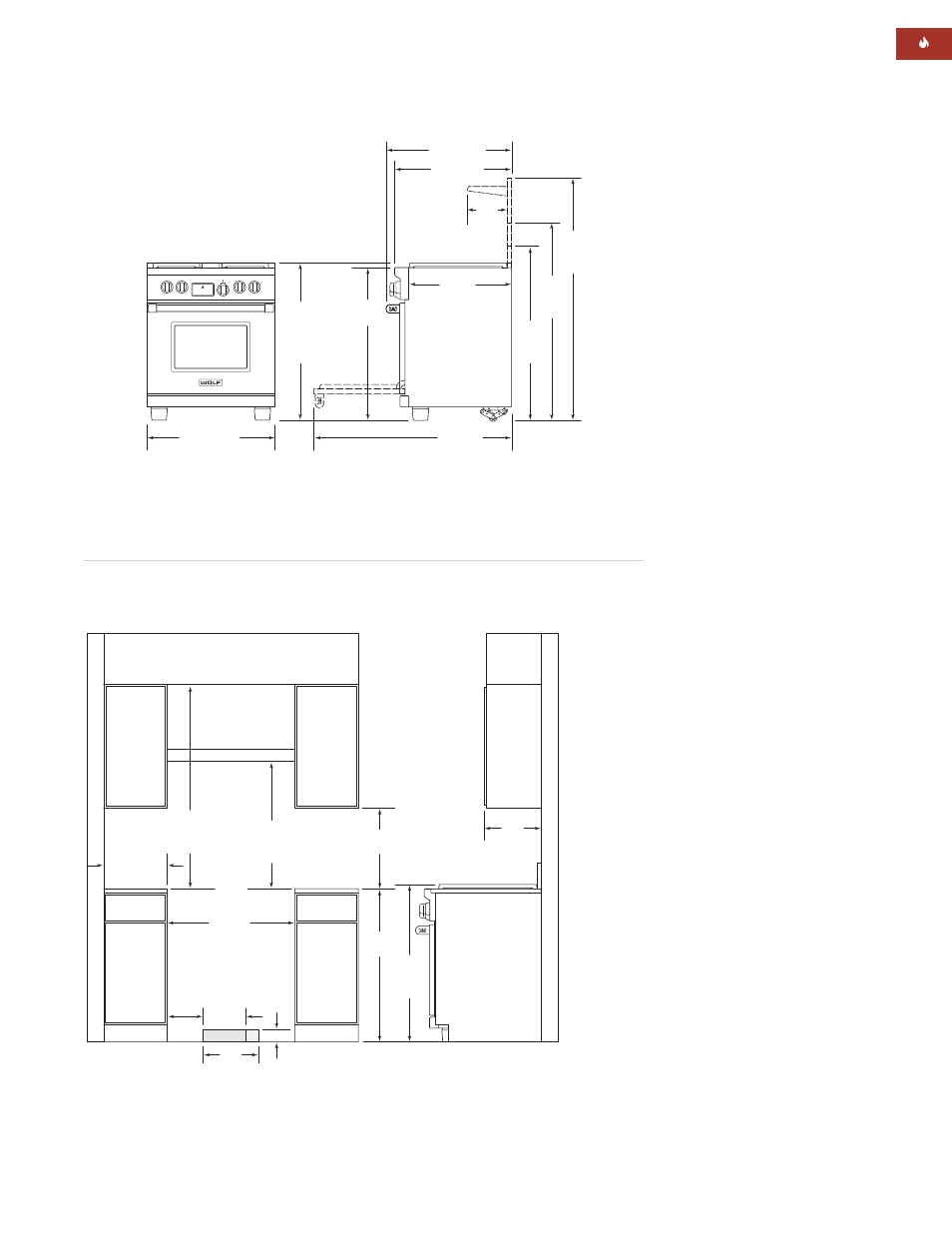

I N S T A L L A T I O N S P E C I F I C A T I O N S
30" (762) Dual Fuel Range
O V E R A L L D I M E N S I O N S
30" (762) Dual Fuel Range
S P E C I F I C A T I O N S
30" (762) Dual Fuel Range
Overall Width 29 7 / 8 " (759)
Overall Height
(to cooking surface) 36
7 / 8 " (937)
Overall Depth 29 1 / 2 " (749)
Overall Oven
Interior Capacity
4.5 cu ft (127 L)
Overall Interior Dim 25" x 16 1 / 2 " x 19"
(W x H x D) (635 x 419 x 483)
Usable Interior Dim 21 1 / 2 " x 16 1 / 2 " x 16 3 / 8 "
(W x H x D) (546 x 419 x 416)
Opening Width 30" (762)
Electrical Supply 240/208 V AC, 60 Hz
30 amp circuit
Electrical Rating 5.2 kW at 240 V
4.5 kW at 208 V
Total Amps 21.7
Shipping Weight 325 lbs (147 kg)
M O D E L O P T I O N S
30" (762) Dual Fuel Range
Four Surface
Burners
DF304
Natural gas model listed;
for LP gas add (-LP) to the
model number.
Unit dimensions may vary to ± 1 / 8 " (3).
Refer to installation
instructions shipped
with each Wolf
product for detailed
specifications.
