W O L F I N T E G R A T E D M O D U L E S
63
E
5"
(127)
G
15"
(381)
15"
(381)
15"
(381)
LOCATION OF GAS SUPPLY
MAY ALSO EXTEND 5" ON
FLOOR FROM BACK WALL
7"*
min (178)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
14"
(356)
COOKTOP CUT-OUT
WIDTH
14"
(356)
COOKTOP CUT-OUT
WIDTH
33"
(838) RECOMMENDED
CABINET WIDTH
18"
(457)
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457)
recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-out
to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 18" (457) above countertop.
19
1
/
4
"
(489)
COOKTOP CUT-OUT
DEPTH
2
1
/
2
"
min
(64)
36"
(914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13"
max
(330)
30"
(762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
2
1
/
2
"**
(64)
5"
(127)
LOCATION OF GAS
SUPPLY MAY ALSO
EXTEND 5" ON FLOOR
FROM BACK WALL
FRONT OF COUNTERTOP
2
1
/
2
"
min
(64)
19
1
/
4
"
(489)
COOKTOP
CUT-OUT DEPTH

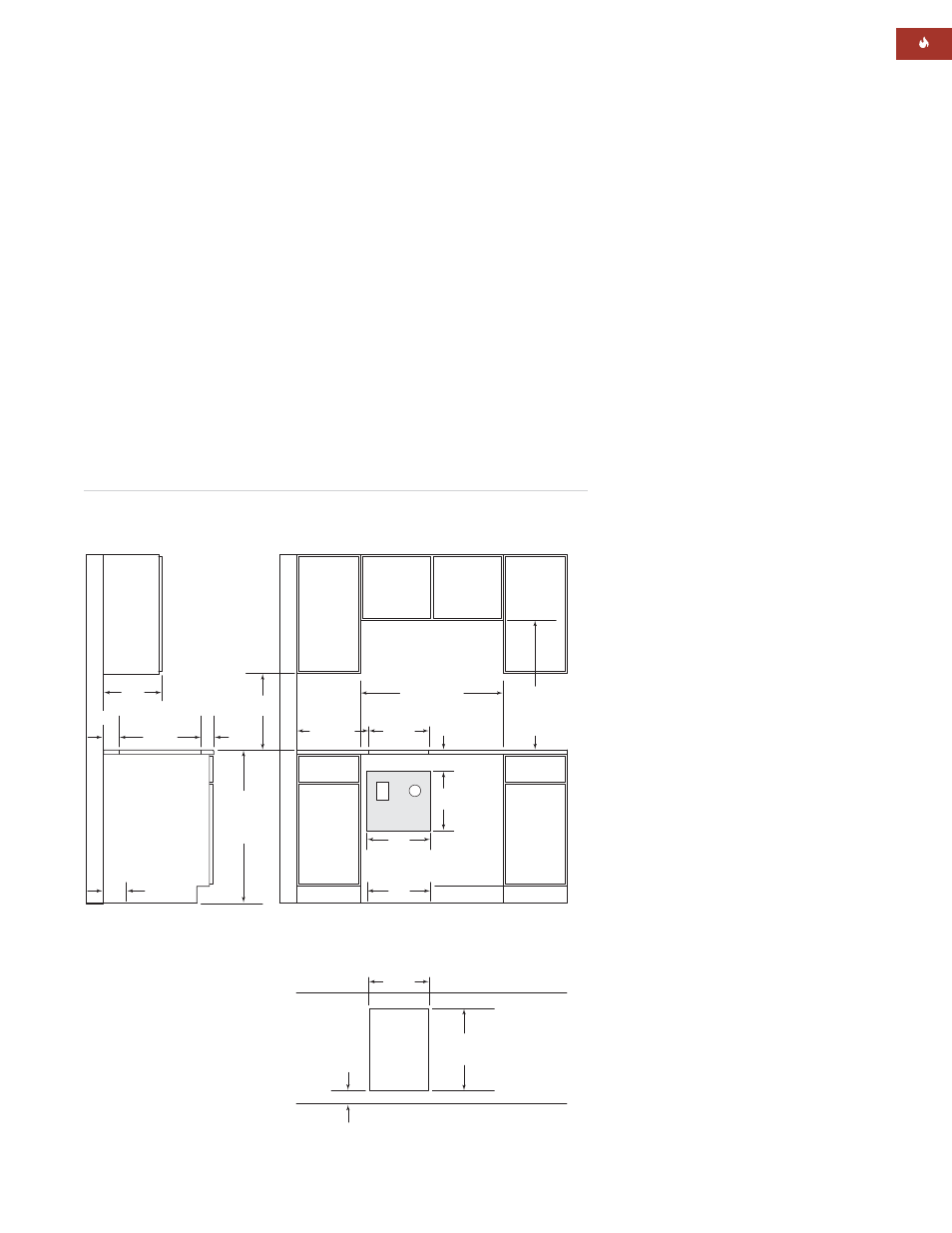

I N S T A L L A T I O N S P E C I F I C A T I O N S
Gas Multi-Function Cooktop
Countertop Cut-Out Dimensions
S P E C I F I C A T I O N S
Gas Multi-Function Cooktop
Overall Width
15" (381)
Overall Height
5" (127)
Overall Depth
21" (533)
Burner Rating
18,000 Btu/hr
(5.1 kW)
Cabinet Depth
22
3
/
4
" (578) min
Height Clearance*
5" (127) min
Cut-Out Width
14" (356)
Cut-Out Depth
19
1
/
4
" (489)
Electrical Supply
120 V AC, 60 Hz
15 amp circuit
Power Cord
6' (1.8 m) 3-prong
Gas Rating
18,000 Btu/hr
(5.1 kW)
Shipping Weight
30 lbs (14 kg)
*A minimum height clearance of 5
1
/
2
" (140)
is required between countertop and any
combustible surface directly below the cooktop.
Unit dimensions may vary to ±
1
/
8
" (3).
P L A N N I N G I N F O R M A T I O N
The illustrations provide the overall dimensions
and finished cut-out dimensions that you need
to plan for in your installation.
IMPORTANT NOTE: When multiple cooktops or
modules are installed side by side, refer to page
55 for countertop cut-out dimensions.
This cooktop can accommodate a Wolf cooktop
hood, downdraft system or Pro ventilation hood
or hood liner. When installing a ventilation hood,
refer to the specific requirements of the hood for
the minimum dimension to the countertop. Refer
to pages 92–114 for ventilation specifications.
E L E C T R I C A L | G A S R E Q U I R E M E N T S
The electric ignition system is a safe, convenient
and reliable way to provide ignition for the burner.
The Wolf gas multi-function cooktop requires a
separate 120 V AC, 60 Hz power supply.
The service should have its own 15 amp circuit
breaker, and a grounded 3-prong receptacle
should be located within reach of the power
cord. Locate electrical and gas supply within
the shaded area shown in the illustration.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
The gas multi-function cooktop is designed to
operate on natural gas at 5" (12.5 mb) WC
pressure or LP gas at 10" (25 mb) WC pressure.
The maximum gas supply pressure to the
regulator should never exceed 14" (34.9 mb)
WC, .5 psi (3.5 kPa). It is supplied with a
1
/
2
"
NPT male gas connection at the right rear corner
of the module. The male connector exits the
unit straight down, and you are supplied with a
regulator with two female connectors.
H I G H A L T I T U D E
The Wolf gas multi-
function cooktop
functions up to 8,000'
(2438 m) in altitude
without any adjust-
ment. If installation
is above 8,000'
(2438 m), contact
your Wolf dealer.
M O D E L O P T I O N S
Gas Multi-Function Cooktop
Classic / Natural Gas IM15/S
Classic / LP Gas
IM15/S-LP
Refer to installation
instructions shipped
with each Wolf
product for detailed
specifications.
