W O L F E L E C T R I C C O O K T O P S
49
2"*
min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
36"
(914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
30"
(762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
*Minimum clearance from both side edges and back edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
39"
(991)
RECOMMENDED CABINET WIDTH
36"
min (914)
36-INCH OVEN OPENING
SEE COUNTERTOP
CUT-OUT BELOW
13"
max
(330)
24"
min
(610)
SEE COUNTERTOP
CUT-OUT BELOW
4"
min (102)
E
10"
(254)
3
1
/
2
"
(89)
4"
(102)
21"
(533)
OVERALL
DEPTH
36"
(914)
OVERALL WIDTH
4"
(102)

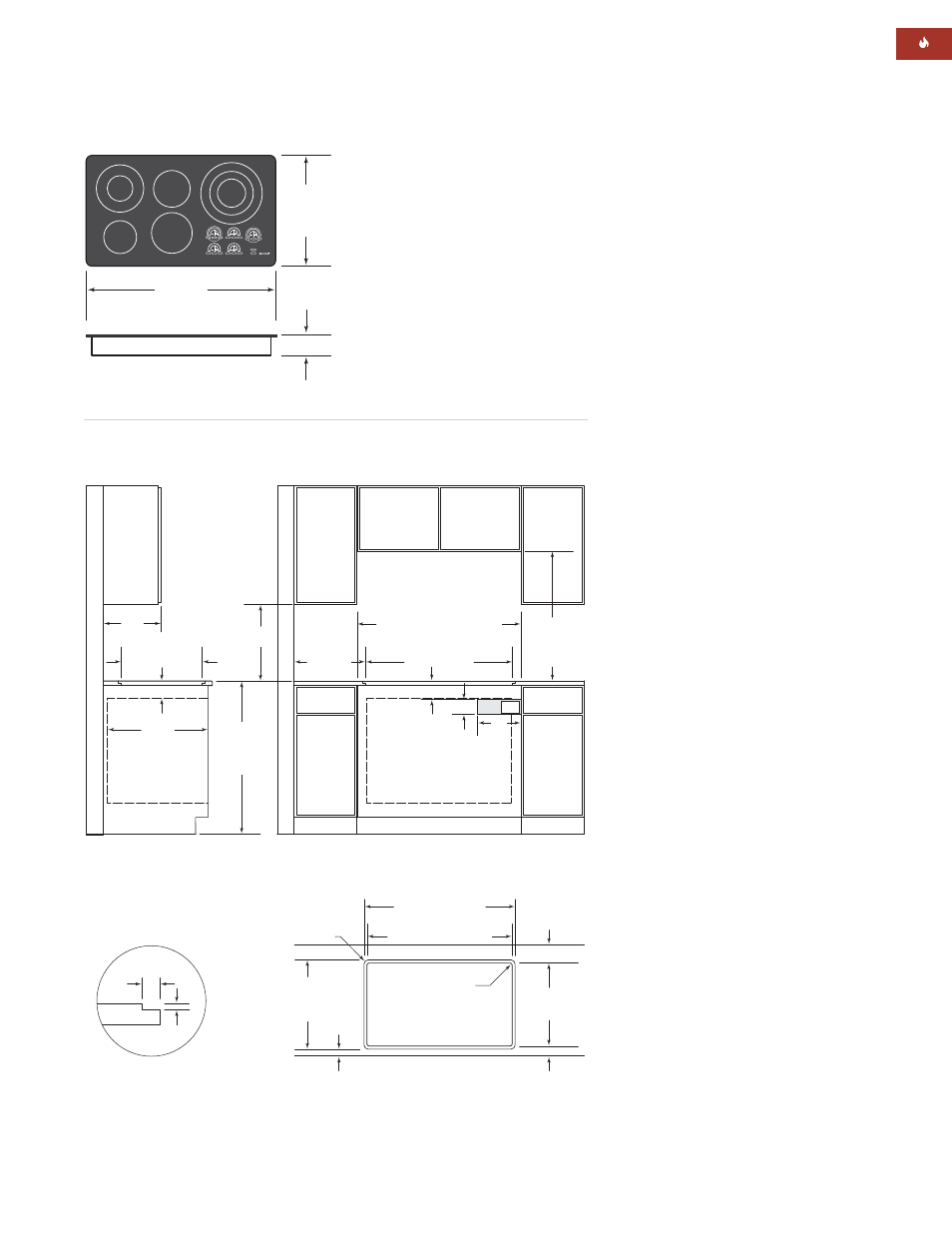

O V E R A L L D I M E N S I O N S
Model CT36EU
I N S T A L L A T I O N S P E C I F I C A T I O N S
Model CT36EU
Countertop Cut-Out Dimensions
S P E C I F I C A T I O N S
Model CT36EU
Overall Width
36" (914)
Overall Height
4" (102)
Overall Depth
21" (533)
Heating Elements
Five
Temperature Zones
Eight
Max Element Power 1050 W / 2200 W /
(triple)
2700 W
Max Element Power 750 W / 2200 W
(dual)
Max Element Power 1200 W, 1500 W
(three single)
and 1800 W
Cabinet Width
39" (991) rec
36" (914) min
Cabinet Depth
22
3
/
4
" (578) min
Height Clearance
4" (102) min
Cut-Out Width
34
3
/
8
" (873)
Cut-Out Depth
19
3
/
8
" (492)
Electrical Supply
240 V AC / 60 Hz / 50 amp
208 V AC / 60 Hz / 40 amp
Conduit
4' (1.2 m) flexible 3-wire
Electrical Rating
9.4 kW at 240 V
7.1 kW at 208 V
Shipping Weight
60 lbs (27 kg)
The outer diameter of the heating elements are
11
7
/
8
" (302), 9
1
/
8
" (232), 7
7
/
8
" (200), 7
1
/
8
" (181)
and 6
1
/
2
" (165).
I N S T A L L A T I O N O P T I O N S
The Model CT36EU unframed electric cooktop
can be mounted flush with the top of the
countertop or as a frameless installation
sitting on top of the countertop surface. In
either installation the cooktop cut-out dimen-
sions are the same. If mounted flush with the
countertop, a recessed area surrounding the
cooktop cut-out is required.
IMPORTANT NOTE: Flush mount installations
are intended for granite, solid surface or stone
countertop surfaces only. If the cooktop is to
be mounted flush with the countertop, fabrica-
tion of the recessed area must take place
before the countertop installation. A template
of the countertop cut-out will be provided with
the cooktop for fabrication purposes.
A Wolf 36" (914) L Series single oven may be
installed below the Model CT36EU. For this
installation, unless you are using cabinets
deeper than 24" (610), it is recommended that
the electrical supply be placed in the base
cabinet to the right of the oven. A 30" (762)
L Series or E Series single oven may also be
installed below the Model CT36EU.
When a 36" (914) L Series oven is installed
below a cooktop, it is recommended that the
rough opening for the oven be 7
3
/
4
" (197) from
the floor to ease use of the oven door.
36
1
/
8
"**
(918)
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
34
3
/
8
"
(873)
COOKTOP CUT-OUT WIDTH
1
5
/
16
"
(33)
RADIUS
FRONT OF COUNTERTOP
2
7
/
16
"
(62)
19
3
/
8
"
(492)
COOKTOP
CUT-OUT DEPTH
1
9
/
16
"
(40)
21
1
/
8
"**
(537)
RECESSED AREA
FOR FLUSH MOUNT
INSTALLATION ONLY
7
/
16
"
(11) RADIUS
**Minimum dimension, but may be exceeded by up to
1
/
8
" (3).
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
5
/
16
"
(8)
7
/
8
"
(22) max
COUNTERTOP
PROFILE
2"*
(51)
Unit dimensions may vary to ±
1
/
8
" (3).
IMPORTANT NOTE: For flush mount applications,
it is recommended that you measure the
cooktop glass before cutting the countertop to
ensure a proper fit. Small variances may exist
between the template and the cooktop.
Discontinued November 2007
