W O L F I N D U C T I O N C O O K T O P S
33
2"*
min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
19
1
/
4
"
(489)
COOKTOP CUT-OUT
DEPTH
2
1
/
2
"
min
(64)
36"
(914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13"
max
(330)
30"
(762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
24"
min
(610)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop. **Minimum clearance
from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
3
3
/
4
"
min
(95)
30-INCH OVEN OPENING
4
1
/
2
"
(114)
10"
(254)
3
1
/
2
"
(89)
E
28
3
/
8
"
(721) COOKTOP
CUT-OUT WIDTH
28
3
/
8
"
(721)
COOKTOP CUT-OUT WIDTH
FRONT OF COUNTERTOP
2
1
/
2
"
min
(64)
19
1
/
4
"
(489)
COOKTOP
CUT-OUT DEPTH
33"
(838) RECOMMENDED
CABINET WIDTH
30"
min (762)
2"**
(51)
21"
(533)
OVERALL
DEPTH
30"
(762)
OVERALL WIDTH
TERMINAL BOX
3
1
/
2
"
(89)
4
1
/
2
"
(114)

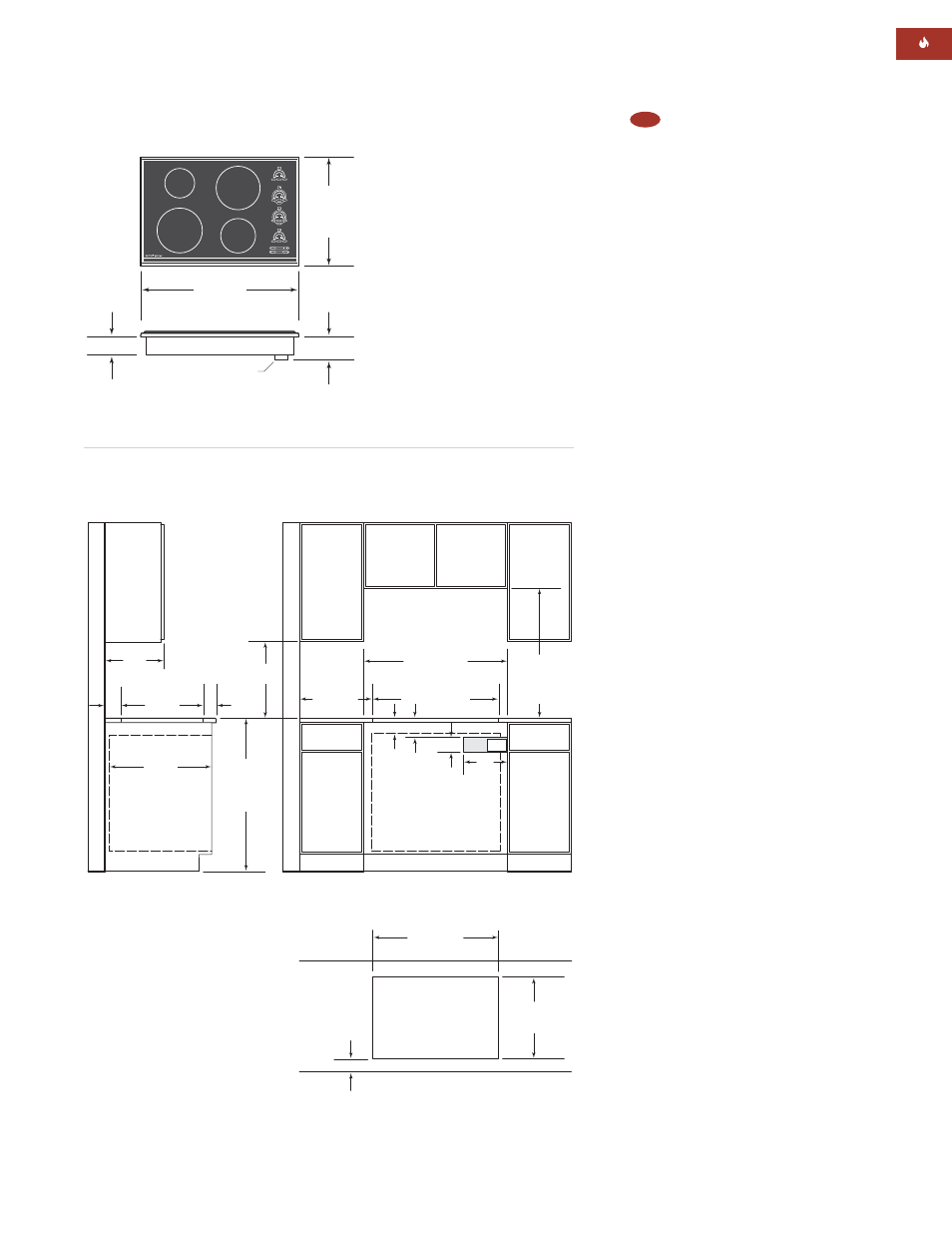

Countertop Cut-Out Dimensions
O V E R A L L D I M E N S I O N S
Model CT30I/S
I N S T A L L A T I O N S P E C I F I C A T I O N S
Model CT30I/S
S P E C I F I C A T I O N S
Model CT30I/S
Trim Finish
Classic
Overall Width
30" (762)
Overall Height
3
1
/
2
" (89)
Overall Depth
21" (533)
Induction Elements
Four
Max Element Power (2) 1800 W with
3000 W boost,
(2) 1200 W
Cabinet Width
33" (838) rec
30" (762) min
Cabinet Depth
22
3
/
4
" (578) min
Height Clearance
4
1
/
2
" (114) min
Cut-Out Width*
28
3
/
8
" (721)
Cut-Out Depth
19
1
/
4
" (489)
Electrical Supply
240/208 V AC, 50/60 Hz
40 amp circuit
Conduit
4' (1.2 m) flexible 3-wire
Electrical Rating
7.2 kW at 240 V
6.3 kW at 208 V
Shipping Weight
48 lbs (22 kg)
*If the 30" (762) cooktop is to be used with
any combination of additional cooktop units or
modules with a filler strip, the cut-out width
increases to 29" (737).
The diameter of the induction elements are
5
1
/
2
" (140), 6
3
/
4
" (171) and two 8
3
/
4
" (220).
IMPORTANT NOTE: A minimum height clearance
of 6" (152) is required between countertop and
any combustible surface directly below the
cooktop.
IMPORTANT NOTE: If a shelf is installed below
the cooktop, a 1" (25) gap at the rear of the
cabinet shelf is necessary to allow for proper
ventilation. Failure to do so could result in
decreased performance or product damage.
I N S T A L L A T I O N O P T I O N S
A Wolf 30" (762) L Series or E Series single
oven may be installed below the 30" (762)
induction cooktop. For this installation, unless
you are using cabinets deeper than 24" (610),
it is recommended that the electrical supply
be placed in the base cabinet to the right of
the oven. A 36" (914) L Series single oven may
also be installed below the 30" (762) induction
cooktop. Refer to the built-in ovens section for
additional specifications.
Unit dimensions may vary to ±
1
/
8
" (3).
Refer to installation
instructions shipped
with each Wolf
product for detailed
specifications.
Available October 2007
NEW
