W O L F P R O V E N T I L A T I O N
106
E
6"
(152)
5"
(127)
LOCATION OF ELECTRICAL
30"
TO
36"
(762–914)
TO COUNTERTOP
10"
(254)
HEIGHT
OF HOOD
22"
(559)
DEPTH OF HOOD
WIDTH OF HOOD
30"
TO
36"
(762–914)
TO COUNTERTOP
NOTE: Pro low-profile wall hoods have an adjustable discharge.

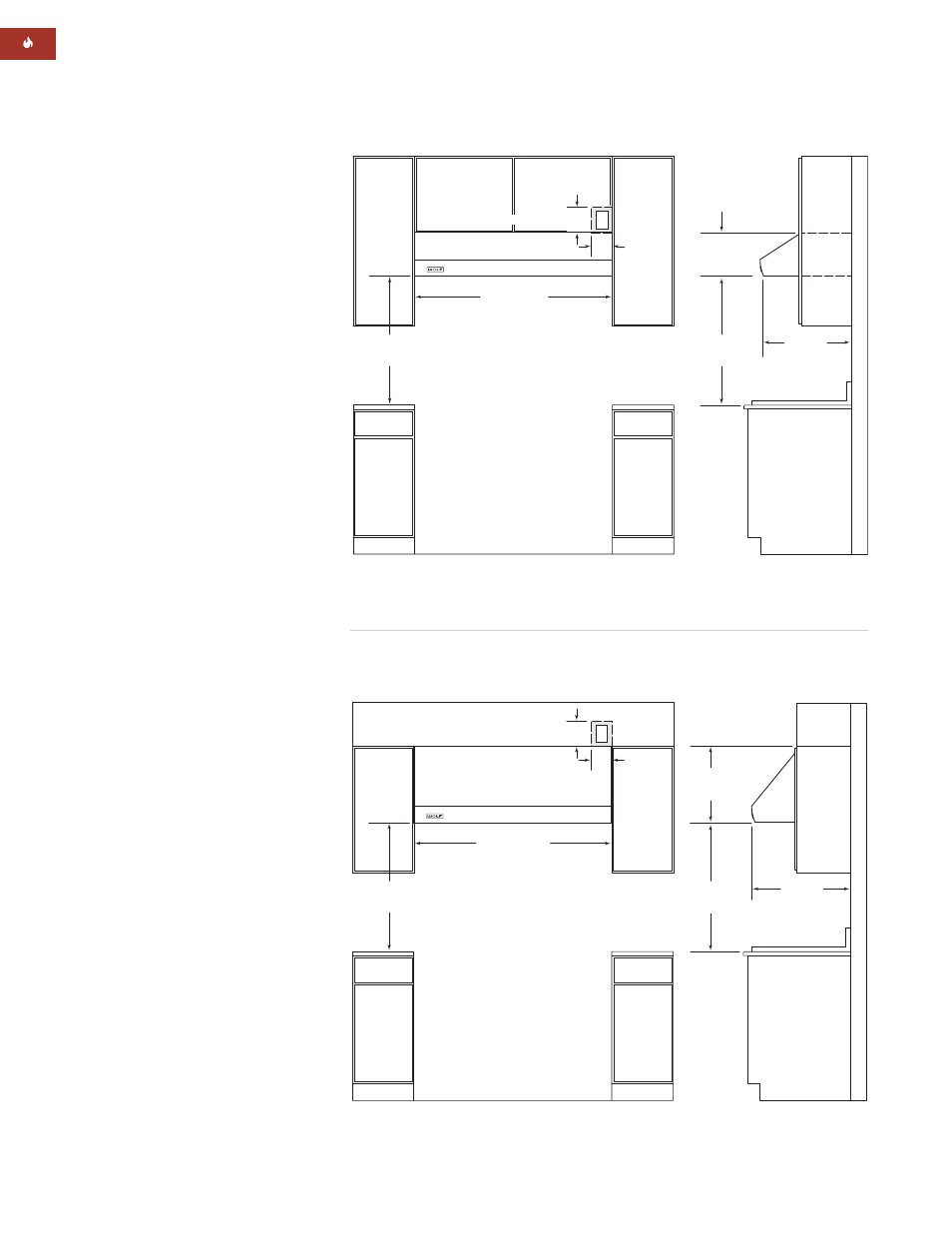

I N S T A L L A T I O N S P E C I F I C A T I O N S
Pro Wall Hoods
S P E C I F I C A T I O N S
Pro Low-Profile Wall Hoods
Overall Width
PW302210
30" (762)
PW362210
36" (914)
PW422210
42" (1067)
PW482210
48" (1219)
Overall Height
10" (254)
Overall Depth
22" (559) excluding rail
Bottom of Hood
to Countertop
30" (762) to 36" (914)
Duct Size*
10" (254) Round rec
Discharge
Vertical or Horizontal
Internal Blower**
500 CFM
In-Line Blower**
600 CFM
Remote Blowers**
600 or 900 CFM
Electrical Supply
110 / 120 V AC, 60 Hz
15 amp circuit
Shipping Weight
39–55 lbs (18–25 kg)
(shell only)
*Duct size may vary based on blower and transi-
tion used. See installation instructions for details.
**Blower options vary with the size of hood
and cooking surface. Refer to the Pro ventilation
recommendations on pages 117–120.
S P E C I F I C A T I O N S
Pro 24" (610) Deep Wall Hoods
Overall Width
PW302418
30" (762)
PW362418
36" (914)
PW422418
42" (1067)
PW482418
48" (1219)
PW542418
54" (1372)
PW602418
60" (1524)
PW662418
66" (1676)
Overall Height
18" (457)
Overall Depth
24" (610) excluding rail
Bottom of Hood
to Countertop
30" (762) to 36" (914)
Duct Size
10" (254) Round
Discharge
Vertical or Horizontal*
Internal Blowers**
600, 900 or 1200 CFM
In-Line Blowers**
600 or 1100 CFM
Remote Blowers**
600, 900, 1200 or
1500 CFM
Electrical Supply
110 / 120 V AC, 60 Hz
15 amp circuit
Shipping Weight
84–148 lbs (38–67 kg)
(shell only)
*Horizontal discharge applications require a hori-
zontal discharge kit.
**Blower options vary with the size of hood
and cooking surface. Refer to the Pro ventilation
recommendations on pages 117–120.
30"
TO
36"
(762–914)
TO COUNTERTOP
30"
TO
36"
(762–914)
TO COUNTERTOP
18"
(457)
HEIGHT
OF HOOD
24"
(610)
DEPTH OF HOOD
WIDTH OF HOOD
NOTE: Pro 24" (610) deep wall hoods have a vertical discharge. A horizontal discharge kit is available as a sales accessory.
E
6"
(152)
5"
(127)
LOCATION OF ELECTRICAL
I N S T A L L A T I O N S P E C I F I C A T I O N S
Pro 24" (610) Deep Wall Hoods
