Setting Up
Arrangement

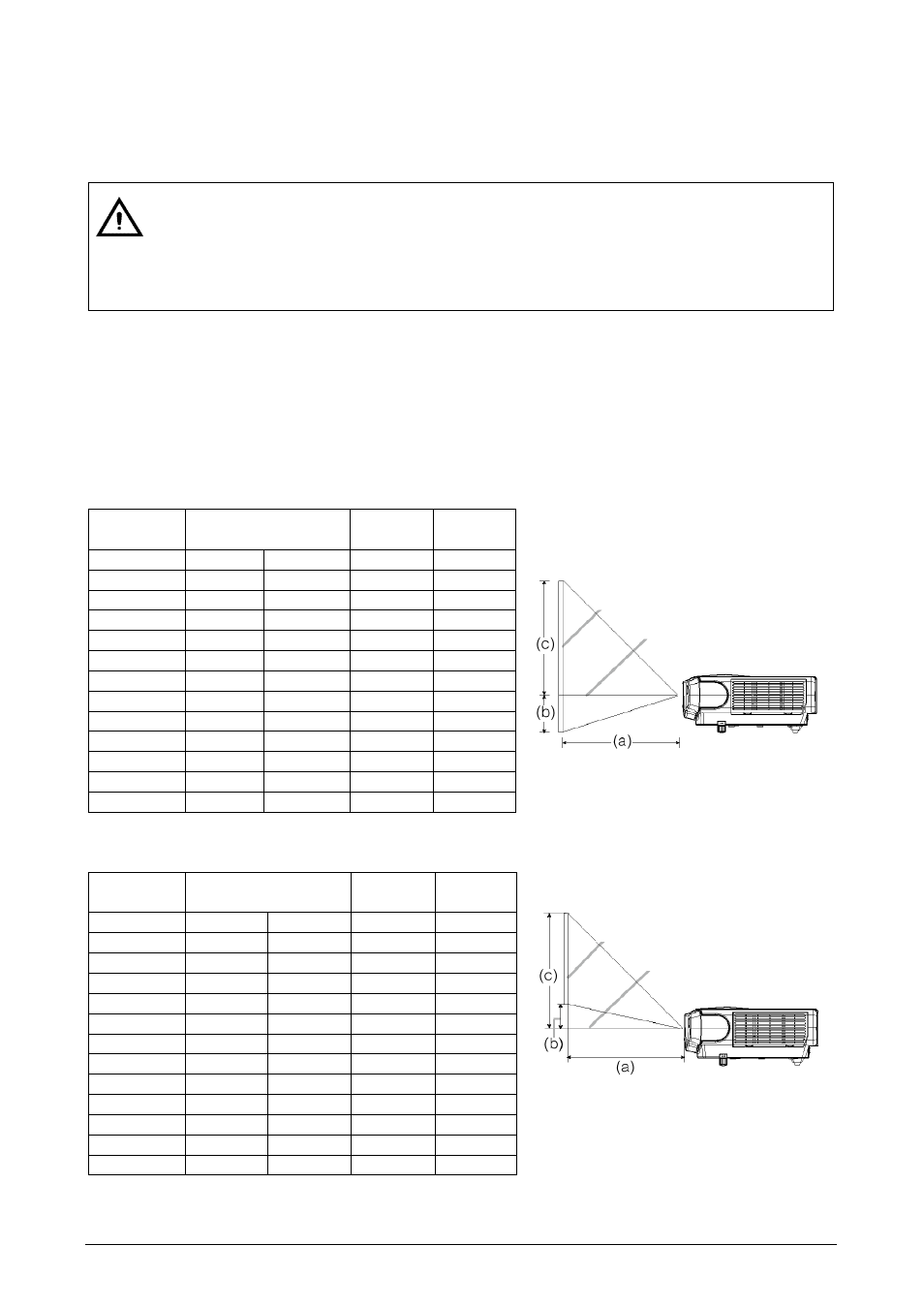

Refer to the illustrations and tables below to determine the screen size and projection distance.
The values shown in the table are calculated for a full size screen: 800x600
a Distance from the projector to the screen (±10%)
b Distance from the lens center to the bottom of the screen (±10%)
c Distance from the lens center to the top of the screen (±10%)
Reference for the 4:3 aspect ratio
Reference for the 16:9 aspect ratio
WARNING
• Install the projector in a suitable environment according to instructions of the “PJ510 QUICK
START GUIDE” and this manual.
• The power outlet should be close to the projector and easily accessible.
Screen Size
Inches (m)
a
Inches (m)
Minimum Maximum
b
Inches
(cm)
c
Inches
(cm)
30 (0.8)
35(0.9)
42(1.1)
2(5)
16(41)
40 (1.0)
47(1.2)
56(1.4)
2(6)
22(55)
50 (1.3)
59(1.5)
71(1.8)
3(8)
27(69)
60 (1.5)
71(1.8)
85(2.2)
4(9)
32(82)
70 (1.8)
83(2.1)
99(2.5)
4(11)
38(96)
80 (2.0)
95(2.4)
114(2.9)
5(12)
43(110)
90 (2.3)
107(2.7)
128(3.3)
5(14)
49(123)
100 (2.5)
119(3.0)
143(3.6)
6(15)
54(137)
120 (3.0)
143(3.6)
171(4.4)
7(18)
65(165)
150 (3.8)
179(4.6)
215(5.5)
9(23)
81(206)
200 (5.0)
240(6.1)
287(7.3)
12(30)
108(274)
250 (6.3)
300(7.6)
359(9.1)
15(38)
135(343)
300 (7.5)
360(9.2)
431(10.9)
18(46)
162(411)
Screen Size
Inches (m)
a
Inches (m)
Minimum Maximum
b
Inches
(cm)
c
Inches
(cm)
30 (0.8)
38(1.0)
46(1.2)
0(1)
15(39)
40 (1.0)
51(1.3)
61(1.6)
1(2)
20(51)
50 (1.3)
64(1.6)
77(2.0)
1(2)
25(64)
60 (1.5)
77(2.0)
93(2.4)
1(2)
30(77)
70 (1.8)
90(2.3)
108(2.8)
1(3)
35(90)
80 (2.0)
104(2.6)
124(3.2)
1(3)
41(103)
90 (2.3)
117(3.0)
140(3.6)
1(4)
46(116)
100 (2.5)
130(3.3)
155(3.9)
2(4)
51(129)
120 (3.0)
156(4.0)
187(4.7)
2(5)
61(154)
150 (3.8)
196(5.0)
234(5.9)
2(6)
76(193)
200 (5.0)
216(6.6)
312(7.9)
3(8)
101(257)
250 (6.3)
327(8.3)
391(9.9)
4(10)
127(322)
300 (7.5)
393(10.0)
469(11.9)
5(12)
152(386)
Screen
Lens center
Side View
Side View
Screen
Lens center
