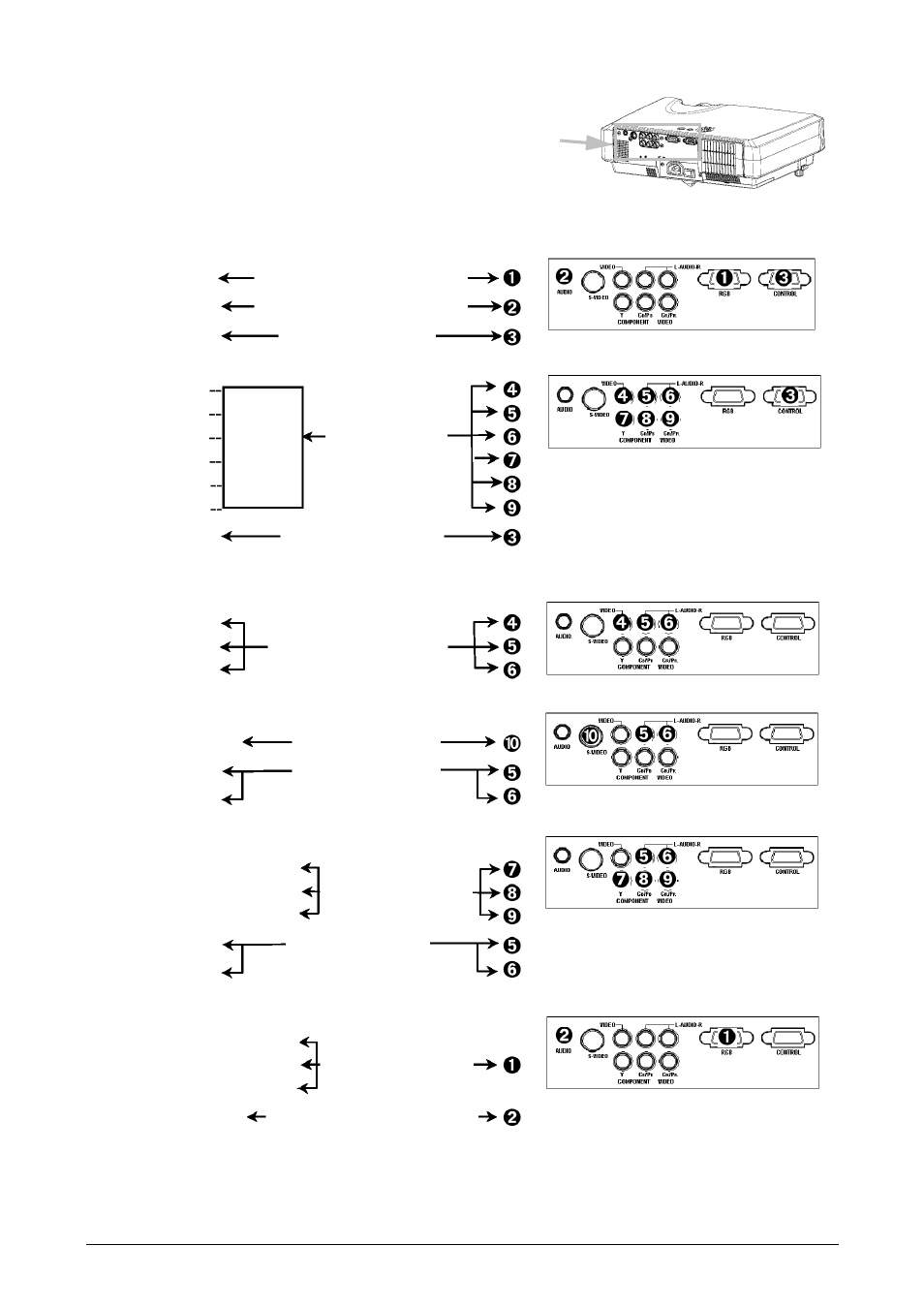

Please refer to the following for connecting your devices.
See the rear of the projector. You can see the ports.
Connecting to a computer
RGB out RGB cable (D-sub 15 pin)
Audio out Audio cable (Stereo mini)
RS-232C port RS-232C Cable
If using a SCART RGB input,
Video
Audio out (L)
Audio out (R) SCART SCART cable
G out out port
B out
R out
RS-232C port RS-232C Cable
Connecting to a DVD/VCR player
Video out
Audio out (L) Audio/Video Cable
Audio out (R)
If using a S-video input,
S-video out port S-video cable
Audio out (L) Audio cable
Audio out (R)
If using a component input,
Component (Y) out
Component ( C
B
/P
B
) out Component cable
Component ( C
R
/P
R
) out
Audio out (L) Audio cable
Audio out (R)
If using a component input from RGB port,
Component (Y) out
Component ( C
B
/P
B
) out Component cable
Component ( C
R
/P
R
) out (with D-sub 15 pin)
Audio out Audio cable (Stereo mini)
