Part Names
The Projector
Projector (Front/Right)

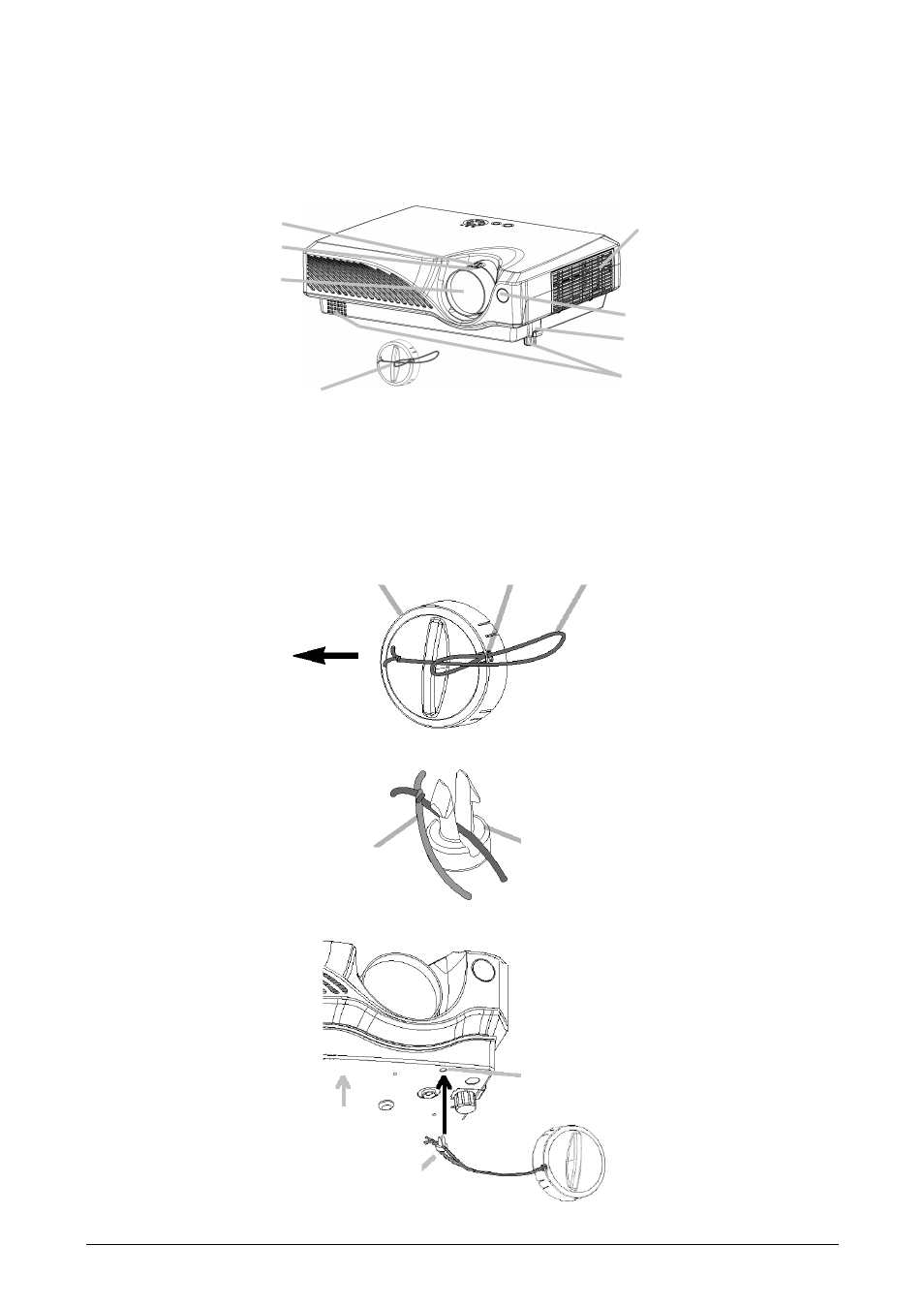

Fastening The Lens Cap
To avoid losing, please fasten the lens cap to the projector using the strap.
1
Fix the strap to the strap ring of lens cap, as the right drawing.
2
Put one piece of the strap into the groove on rivet, as the right drawing.
3
Push the rivet into the strap hole.
Zoom knob
Lens cap
Focus ring
Lens
Elevator feet
Elevator button
Remote sensor
Air filter cover
(An air filter is
inside)
Lens cap
Strap ring
Strap
Pull
Rivet
Strap
Rivet
Strap hole
Push in
(Bottom side)
