TASCAM BB-1000CD/BB-800
2 – Part Names and Functions

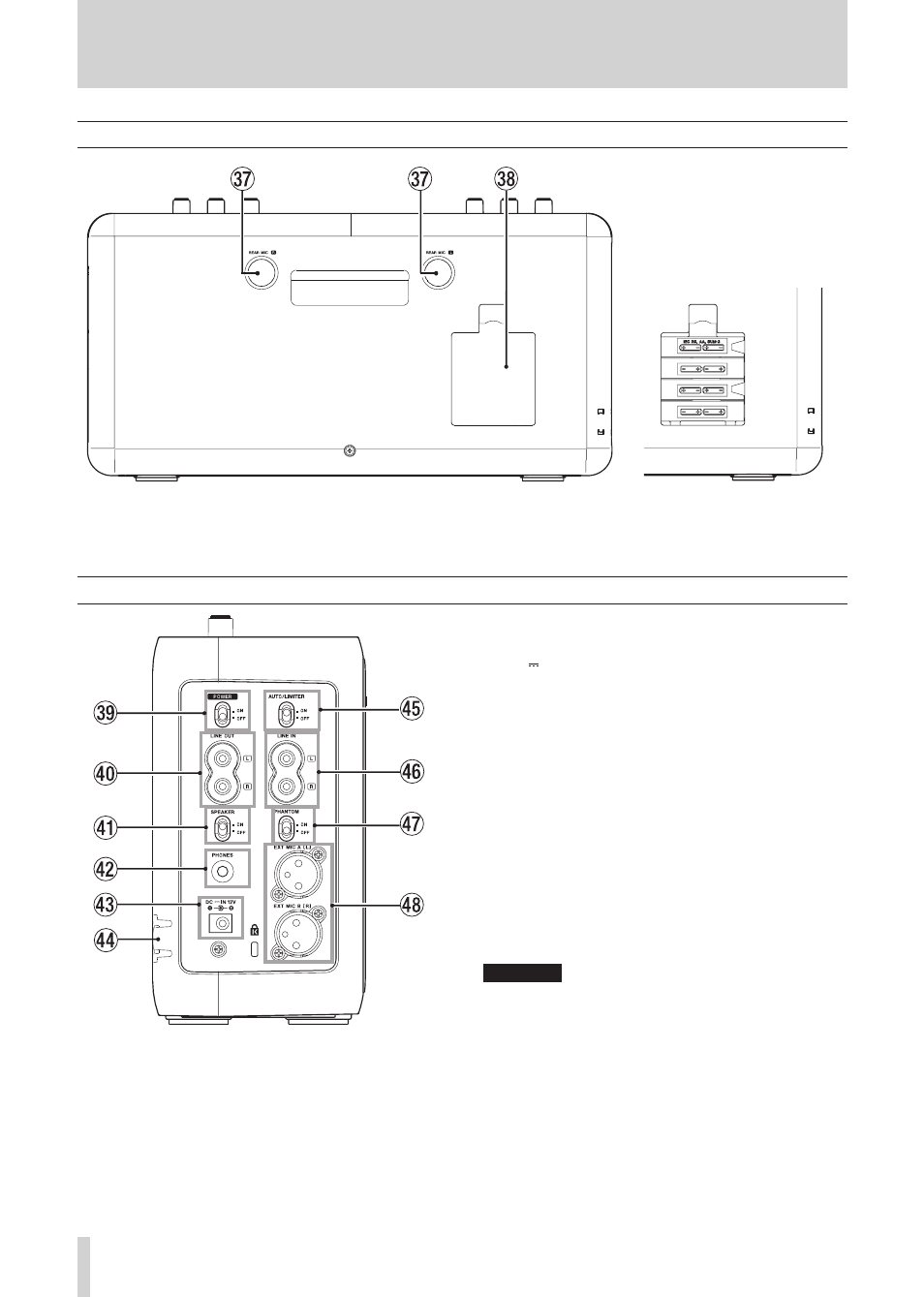

Rear Panel
m REAR MIC L/R
This is a built-in stereo pair of microphones.
, Battery compartment
The compartment holds 8 AA batteries.
Inside of the battery
compartment
Left side panel
. POWER switch
Use this switch to turn the power on and off.
/ LINE OUT jacks
Use these to connect electronic instruments with built-in
speakers, powered speakers and other audio equipment.
! SPEAKER switch
Use this switch to turn the built-in speakers ON and
OFF.
@ PHONES jack
Use this to connect headphones.
# DC IN 12V jack
Connect the included AC adaptor (TASCAM PS-1225L)
here.
$ Power cord holder
This holds the power cord to prevent unexpected discon-
nection of the cord.
% AUTO/LIMITER
Use this to activate and deactivate the automatic gain
control and limiter functions.
^ LINE IN jacks
Connect the line out jacks of an electronic instrument,
CD player or other external audio device.
& PHANTOM switch
Turn this on to supply phantom power (+48 V) to
condenser mics connected to the
EXT MIC jacks.
CAUTION
Do not connect or disconnect microphones when the
PHANTOM switch is ON.
* EXT MIC A (L)/EXT MIC B (R) jacks
Connect microphones to these XLR jacks. (1: GND 2:
HOT 3: COLD)
