Toshiba IK-WB30A User Manual
Page 92
92
When completed, click Save to enable the settings and click Close to exit Event Settings page. The new
event settings / server settings / media settings will appear in the event drop-down list on the Application
page.

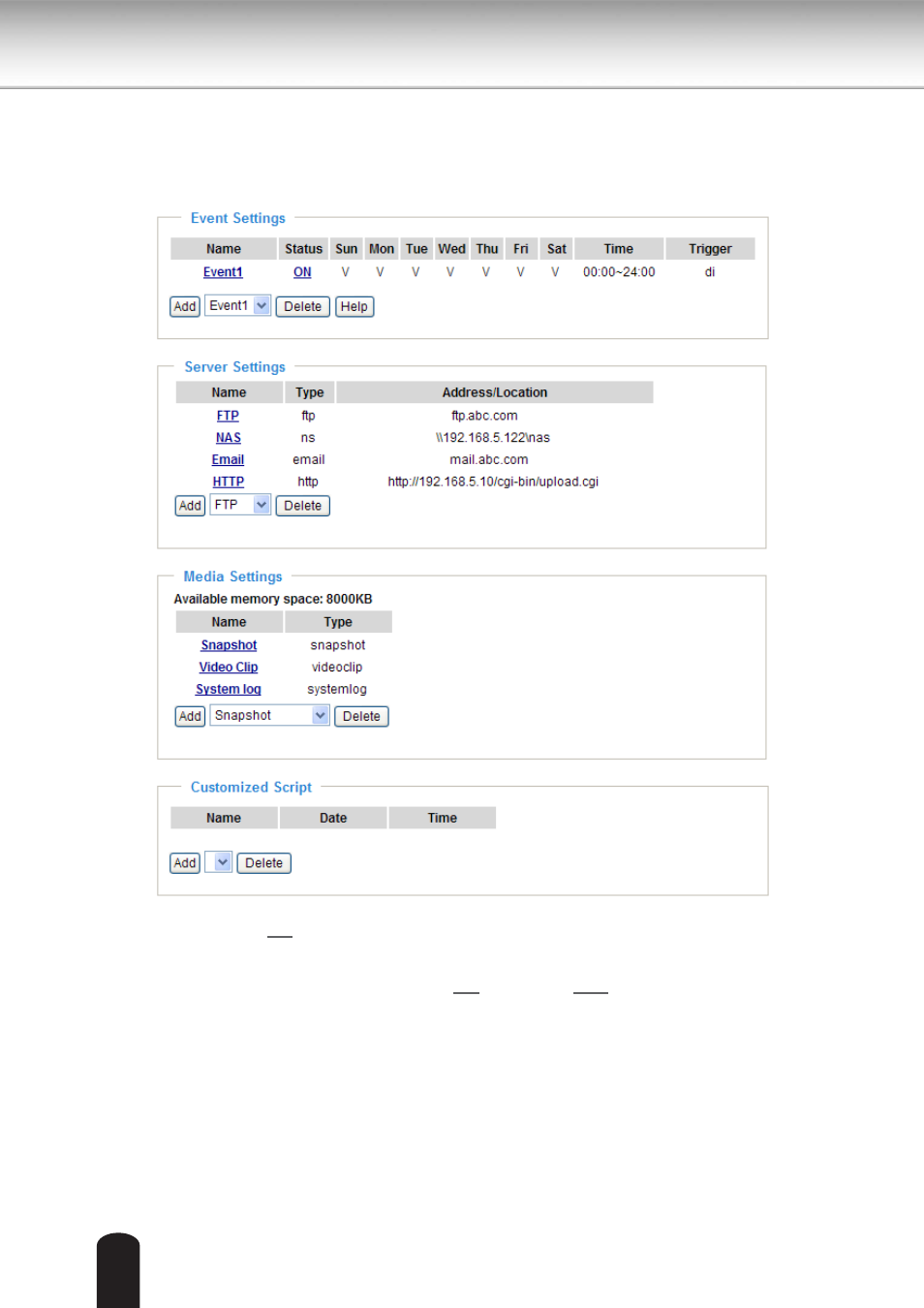

Here is an example of the Application page with an event setting:
When the Event Status is
ON
, once an event is triggered by motion detection, the Network Camera will
automatically send snapshots via e-mail.
If you want to stop the event trigger, you can click
ON
to turn it to
OFF
status or click Delete to remove
the event setting.
To remove a server setting from the list, select a server name from the drop-down list and click Delete.
Note that only when the server setting is not being applied to an event setting can it be deleted.
To remove a media setting from the list, select a media name from the drop-down list and click Delete.
Note that only when the media setting is not being applied to an event setting can it be deleted.
