15

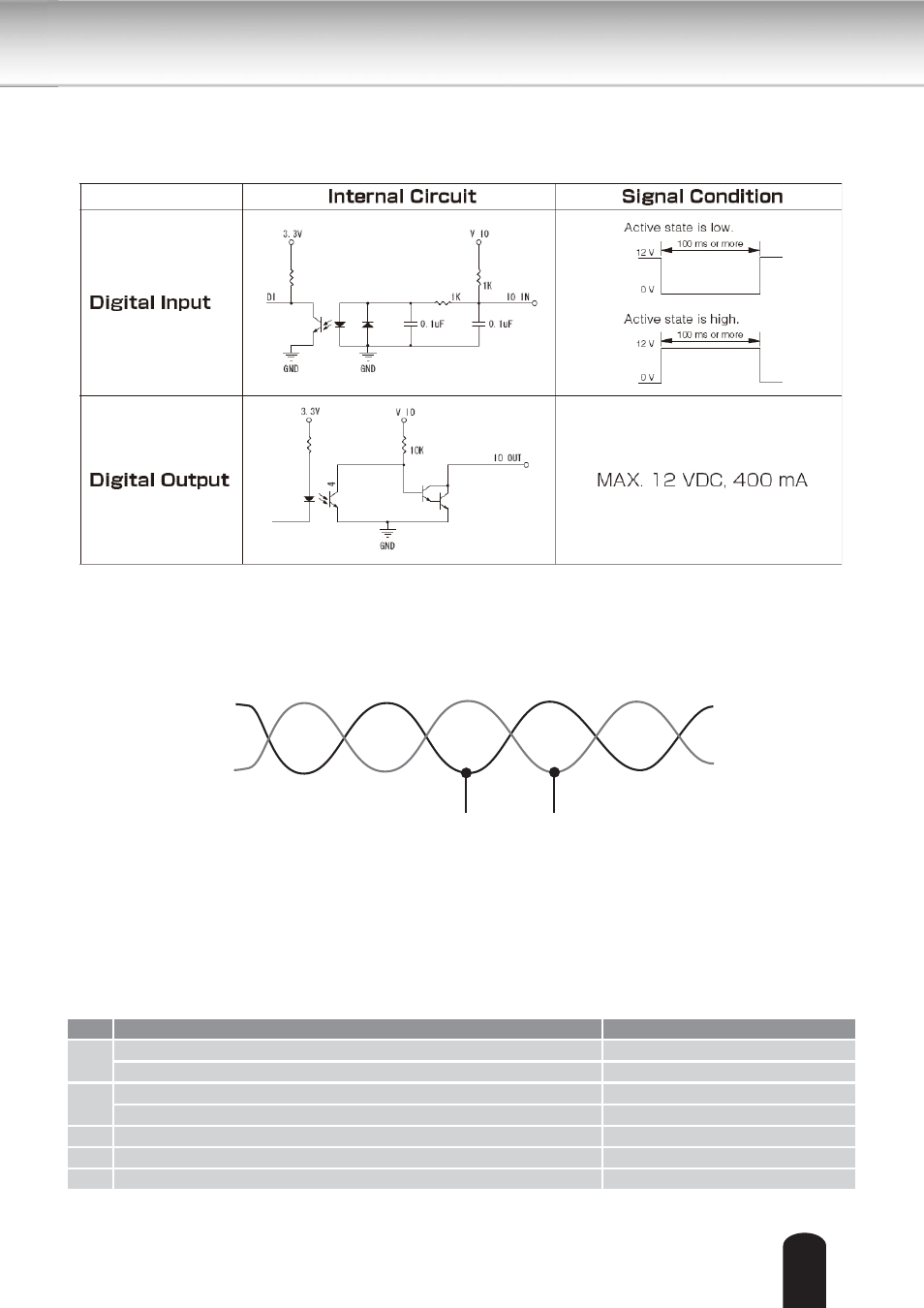

The connection definition is as below when "Digital input" is used for alarm input.
Status LED
The LED indicates the status of the Network Camera.
Item LED status Description
1
Steady Red Power on and system booting
Red LED unlit Power off
2
Steady Red + Blinking Green every 1 sec. Network connected (heartbeat)
Steady Red + Green LED unlit Network disconnected
3 Steady Red + Blinking Green every 2 sec. Audio mute (heartbeat)
4 Blinking Red every 0.15 sec. + Blinking Green every 1 sec. Upgrading Firmware
5 Blinking Red every 0.15 sec. + Blinking Green every 0.15 sec. Restore default
IK-WB30A
Rx - Rx +
RX -
Rx +
Twisted pair line
RS485 +
PTZ driver
RS485 -
PTZ scanner
RS485 connection
