Page 185

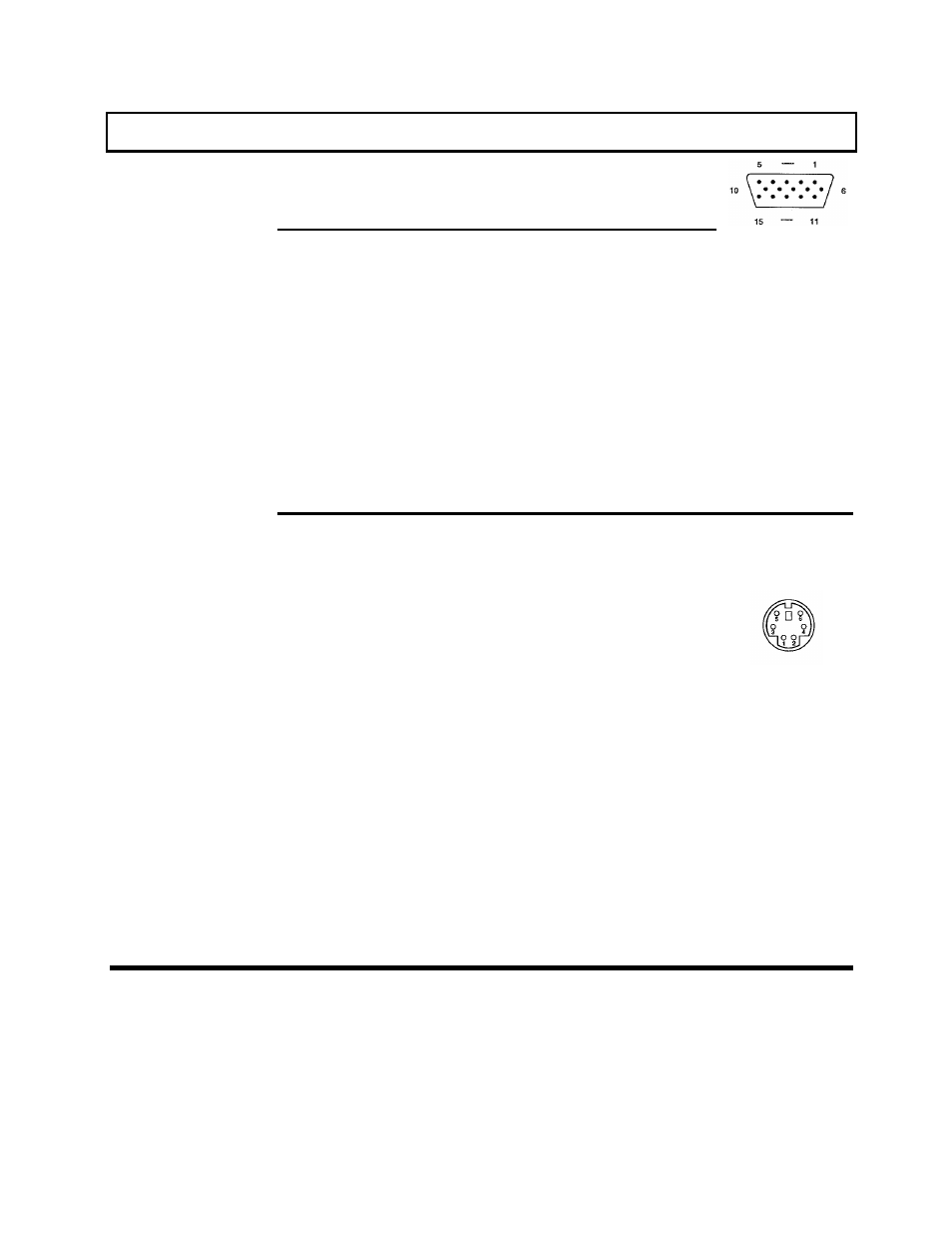

Connector Pin Assignments
15-Pin VGA External
Monitor Connector
Pin No.
Signal Name
Direction
1
Red video
Output
2
Green video
Output
3
Blue video
Output
4
Not used
5
Ground
6
Red return
Input
7
Green return
Input
8
Blue return
Input
9
Not used
10
Ground
11
Not used
12
Not used
13
Horizontal sync
Output
14
Vertical sync
Output
15
Not used
Note:
Monochrome monitors use green video for all video input and ignore red and blue video.
Six-Pin TravelPoint/Mouse
Connector
Pin No.
Signal Name
Abbreviation
1
Data`
MDATA
2
Not used
3
Ground
GND
4
+5 volts
VCC
5
Mouse clock
MCLK
6
Not used
G-2 Connector Pin Assignments
