– 60 –

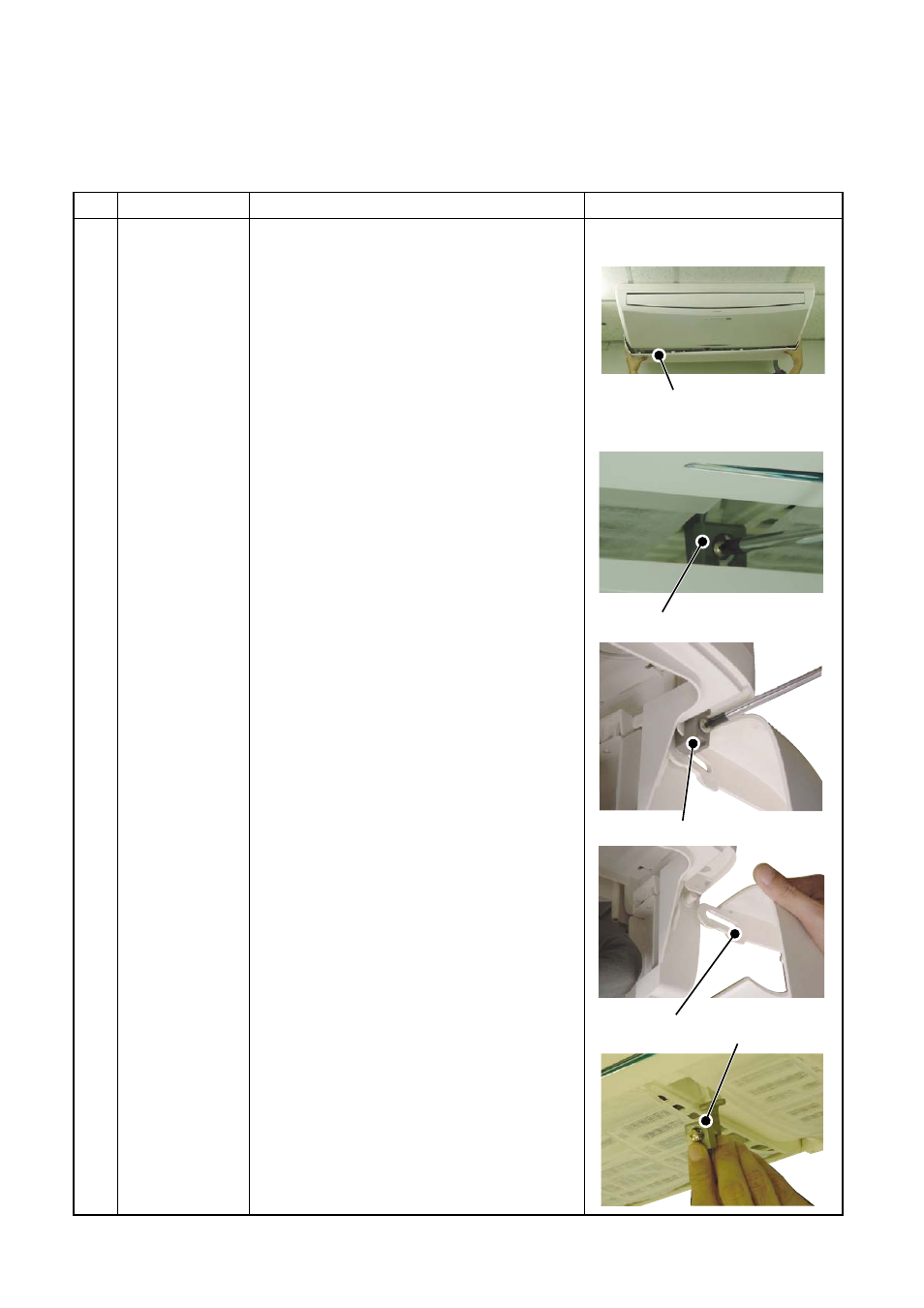

11-1. Indoor Unit

No.

Part name

Procedures

Remarks

1


1) Stop the operation of the Air conditioner

and turn off its main power supply.

2) Open the Air inlet grille with both hands.

3) Unfasten 3 screws (about two to three

rounds) for fixing the Panel arms.

4) Move the Air inlet grille toward.

5) Remove the Grille stopper from the axis of

the Front panel. After that, remove the Air
inlet grille.

6) Remove the Panel arms from the Front panel.


1) Insert three Panel arms on the Air inlet

grille and fix each securely by screws.

2) Set the Air inlet grille arm to the axis of the

Front panel.

3) Insert the Grille stopper to the correct

position and fix it securely with screws.

4) Push the Air inlet grille to the correct position.

Air Inlet grille

11. DETACHMENTS

Air inlet grille

Panel arm

Grille stopper

Air inlet grille

Panel arm
