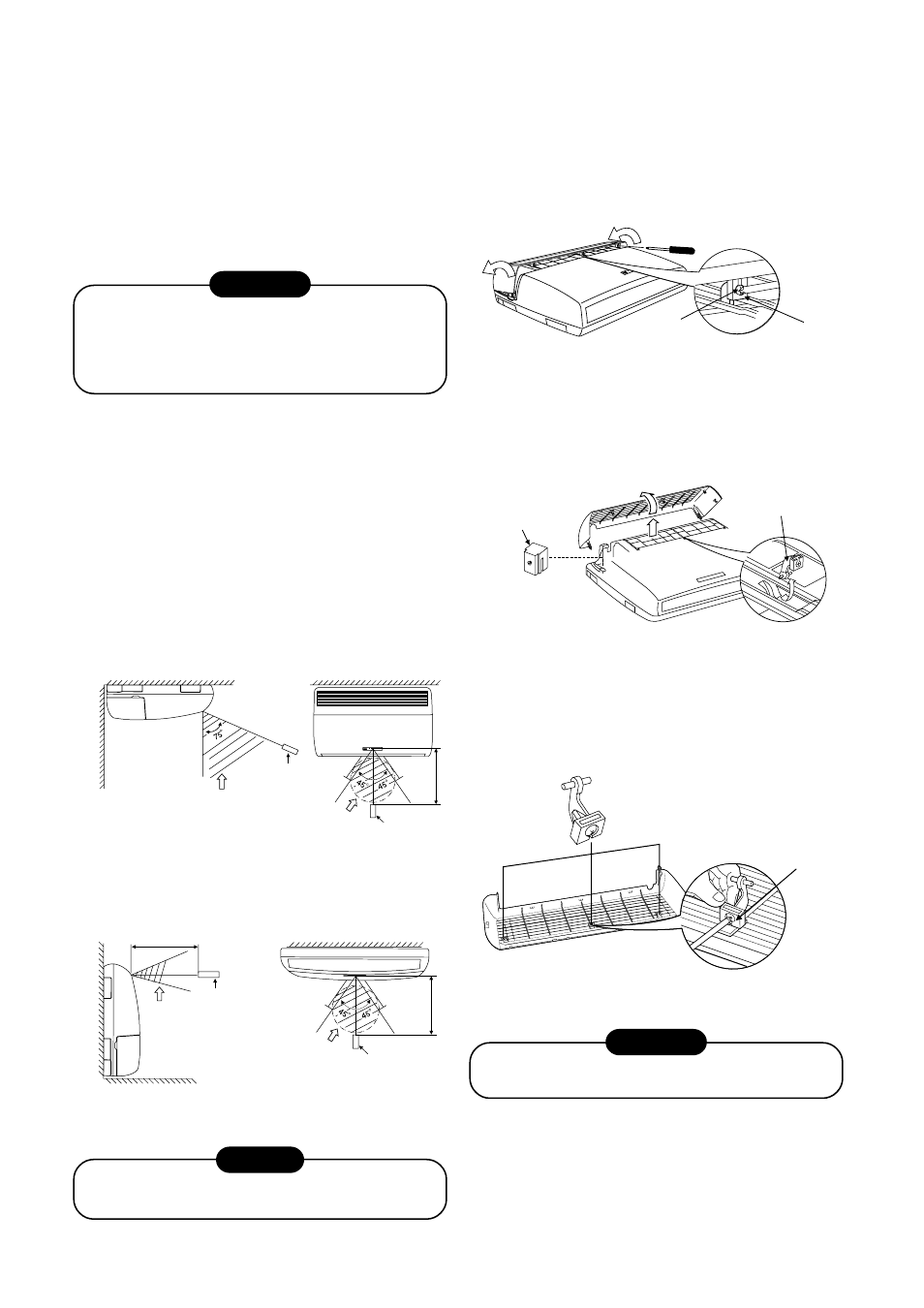

– 32 –

Under Ceiling Installation

Fig. 9-5-1

Console Installation

Fig. 9-5-2

9-5-1. Installation Place

A place which provides the spaces around the
indoor unit as shown in the above diagram.

A place where there is no obstacle near the air inlet
and outlet.

A place that allows easy installation of the piping to
the outdoor unit.

A place which allows the Front panel to be opened.

9-5-2. Before Installation

1. Open the Air inlet grille by both hands.
2. Loosen three screws for fixing the Panel arm. Do

not remove the screws at this time.

Fig. 9-5-3

3. First, move the Air inlet grille upward, then turn it

backwards.

4. Remove the Grille stopper from the axis of the Front

panel. After that, remove the Air inlet grille.

5. Remove the Panel arms from the Front panel.

Fig. 9-5-4

9-5-3. After Installation

1. Insert the three Panel Arms on the Air inlet grille

and fix each securely by screws.

Fig. 9-5-5

Screw

Panel arm

Grille stopper

Panel arm

Panel arm

Reception range

Reception
range

Remote controller

Ceiling

Wall

Reception
range

Remote
controller

Reception
range

Floor

Wall

* Axial distance

5 m

5 m

*7 m

7 m

5 m

5 m

*7 m

7 m

Remote controller

Remote
controller

CAUTION

The screws that fixed with Panel Arms must not
be loose.

NOTICE

The Paper pattern is inside the package box cover.
Do not bend and dispose of it before installing.

1

1

2

2

5

3

3

CAUTION

Direct sunlight or fluorescent light to the indoor
unit’s wireless receiver should be avoided.

The microprocessor in the indoor unit should not
be too close to RF noise sources.
(For details, see the owner’s manual.)

A place where there are no obstacles such as a
curtain that may block the signal from the indoor unit.

Do not install the remote controller in a place
exposed to direct sunlight or close to a heating
source, such as a stove.

Keep the remote controller at least 1 m apart from
the nearest TV set or stereo equipment. (This is
necessary to prevent image disturbances or noise
interference.)

The location of the remote controller should be
determined as shown below.
