TOSHIBA

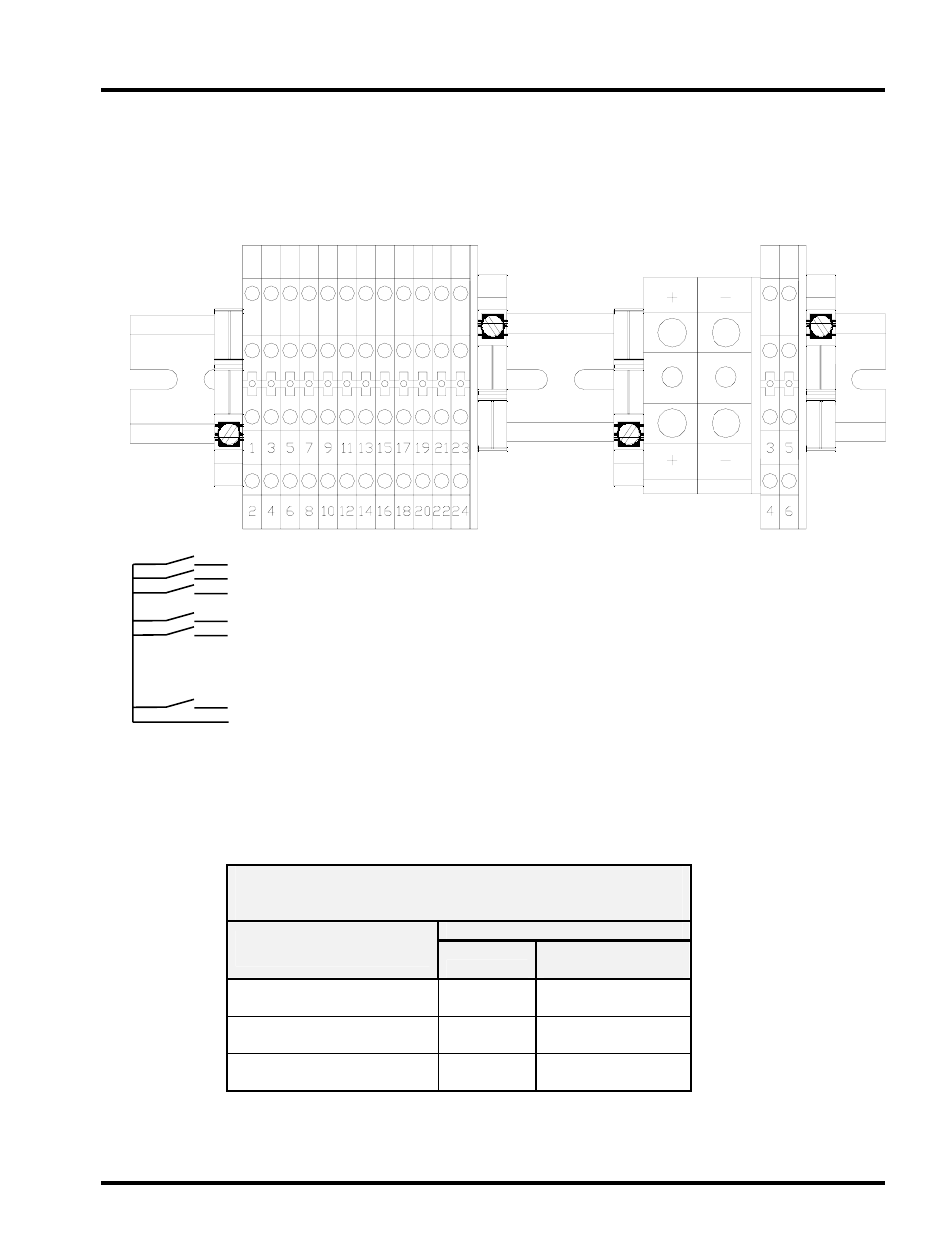

4.2 Control Circuit and External Battery Interface Connections 15/25/30 kvA
The following illustrates the wiring connections of the Control Circuits, and Battery Interface
Circuits.
4.2.1
Recommended Wire Size and Torque Requirements
UPS Control and Battery Interface 15/25/30 kVA
Minimum Wire Size and Torque Requirements
UPS Control and Battery Interface Circuits
USE MINIMUM 75 °C COPPER WIRING
15/25/30 kVA
TERMINAL
(TERMINAL #)
AWG
TIGHTENING
TORQUE
UPS CONTROL CIRCUITS
(1-24)*
14-16 8 in-lbs.
BATTERY CONTROL
CIRCUITS (3-6)*
14-16 8 in-lbs.
BATTERY
(+/-)
4 51 in-lbs.
*Indicates Class 1 wiring methods are to be used. Maximum Wire Size for Control Circuits is 12
AWG. Maximum for Battery is 2 AWG.
(1) Low Battery
(
(3) 2) Battery Discharge
Fault
(4) Not Used
(5) Inverter Supply
(6) Inverter Supply
(7) P24A3
(8) Remote
Run
(9) P24A3
(10) Remote Stop
(11) Bypass
(12) COMMON
(13) EPO
(14) EPO
Battery Connection
(+) Positive
Negative
(3) Battery Shunt Trip
(4) Battery Shunt Trip
(5) Battery Aux.
(-)
(6) Battery Aux.
4200FA CT/XT User’s Manual 24
