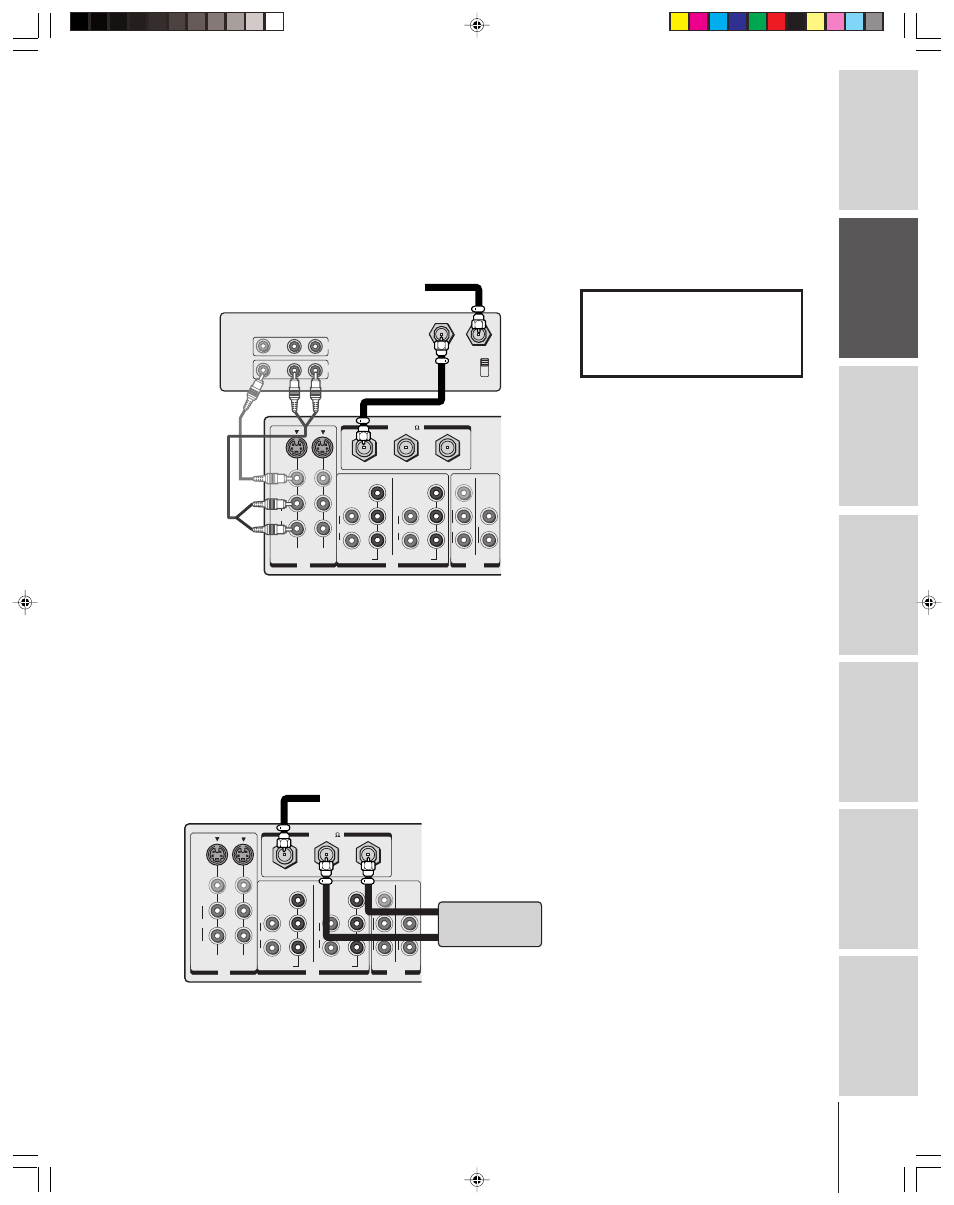

Connecting a VCR
This connection allows you to watch local channels and video
programs, watch video tapes, and record one channel while watching
another channel.
You will need:
• two coaxial cables
• one set of standard A/V cables
IN
OUT
ANT( 75 )
ANT-1
OUT
ANT-2
L/
MONO
AUDIO
S-VIDEO
VIDEO
R
AUDIO
R
R
AUDIO
R
L
VIDEO 1 VIDEO 2
IN
P
B
P
R
COLOR
STREAM HD-1
Y
AUDIO
VIDEO
VAR
AUDIO
R
L
L
P
B
P
R
COLOR
STREAM HD-2
Y
L/
MONO
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L
R
CH 4
IN
OUT
Connecting a cable converter box
This connection allows you to watch basic and premium cable
channels.
To use the TV’s features, select ANT-1. To view premium channels,
select ANT-2, tune the TV to channel 3 or 4 (whichever channel is
vacant in your area), and use the converter box to change channels.
You will need:
• three coaxial cables
IN
OUT
ANT( 75 )
ANT-1
OUT
ANT-2
L/
MONO
AUDIO
S-VIDEO
VIDEO
R
AUDIO
R
R
AUDIO
R
L
VIDEO 1 VIDEO 2
IN
P
B
P
R
COLOR
STREAM HD-1
Y
AUDIO
VIDEO
VAR
AUDIO
R
L
L
P
B
P
R
COLOR
STREAM HD-2
Y
L/
MONO
IN
OUT
Cable converter box
Note:
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
TV
From Cable
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have an S-VHS VCR, use an S-video
cable instead of the standard video cable.
Do not connect a standard video cable and
an S-video cable to VIDEO 1 (or VIDEO 2) at
the same time or the picture performance will
be unacceptable.
From Cable Box or Antenna
Stereo VCR
TV
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
