15

Intr

oduction

Connecting

y

our T

V

Using the

Remote Contr

ol

Setting up

y

our T

V

Using the T

V’s

F

eatur

es

Appendix

Index

VIDEO

AUDIO

L

R

IN

OUT

DVI / HDCP

OUT

IN

AUDIO CENTER

CHANNEL IN

For

DVI / HDCP

R

L

R

L

For PC

PC IN

DVI / HDCP IN

ON

OFF

IN

OUT

IR BLASTER

DIGITAL

AUDIO IN

COAXIAL OPTICAL

* DVI/HDCP = Digital Visual Interface/

High-bandwidth Digital Content Protection.

** EIA/CEA-861 compliance covers the

transmission of uncompressed digital
video with high-bandwidth digital content
protection, which is being standardized for
future reception of high-definition video
signals.

Consult your consumer electronics dealer

for availability.

Note:

Make sure the DVI cable is fastened

securely to the TV and DVI device.
If the cable is not fastened securely on both
ends, the TV may suffer from picture noise
(“snow”) or have no picture at all.

To ensure that the DVI/HDCP device is

reset properly, it is recommended that you
follow these procedures:

a) When turning on your electronic devices,

turn on the TV first, and then the
DVI/HDCP device.

b) When turning off your electronic devices,

turn off the DVI/HDCP device first,
and then the TV.

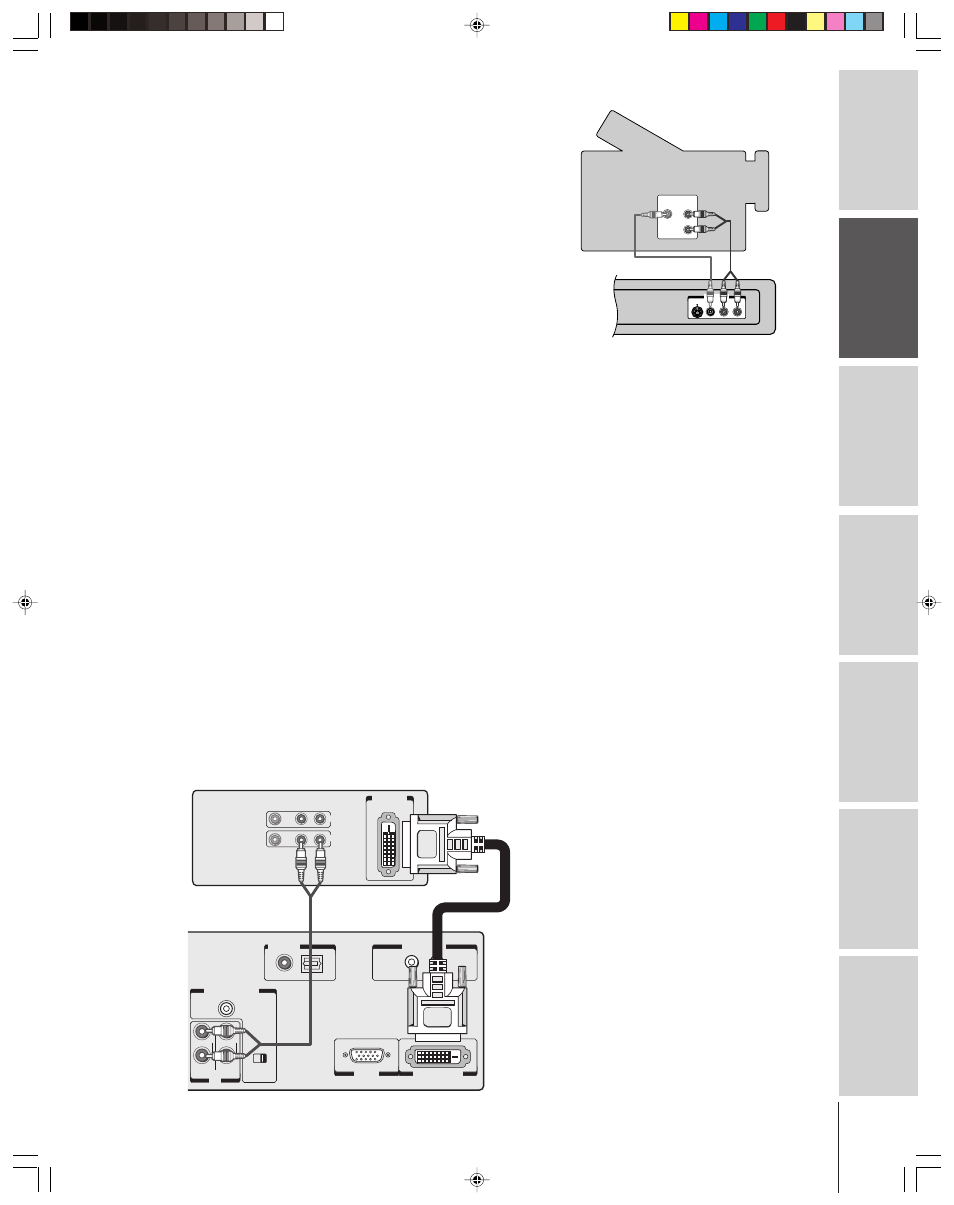

Connecting a camcorder

This connection allows you to watch video materials recorded on a
camcorder.
You will need:

• one set of standard A/V cables

Note: If you have an S-VHS camcorder, use an S-video
cable instead of a standard video cable. Do not connect
both a standard video cable and an S-video cable at the
same time, or the picture performance will be
unacceptable.

Video-3 (front panel)

VIDEO

AUDIO

OUT

L

R

VIDEO-3 IN

VIDEO

S-VIDEO

AUDIO

L/MONO R

Camcorder

TV

DVI/HDCP device
(for example, set-top box or DVD player)

Connecting a device to the DVI/HDCP IN
terminal

Your TV’s DVI/HDCP* IN terminal is designed to accept HDCP
program material in digital form from EIA/CEA-861–compliant **
consumer electronic devices, such as a set-top box or DVD player
equipped with a DVI-D digital single-link OUT terminal.

The DVI/HDCP IN terminal is designed for best performance with
1080i high-definition video signals, but also will accept and display
480p, 720p, and 480i picture signals.
The DVI/HDCP IN terminal is not intended for connection to and
should not be used with a PC (personal computer). For PC
connection, see “Connecting a computer” on page 18.
You will need:

• one DVI-D digital single-link cable

Note: For proper operation, the DVI-D cable length should
not exceed 3m (9.8 ft). The recommended length is 2m (6.6 ft).

• one pair of standard audio cables (or one digital audio cable, if

applicable; see pages 14, 53, and 57 for details on digital audio
connection)
