14

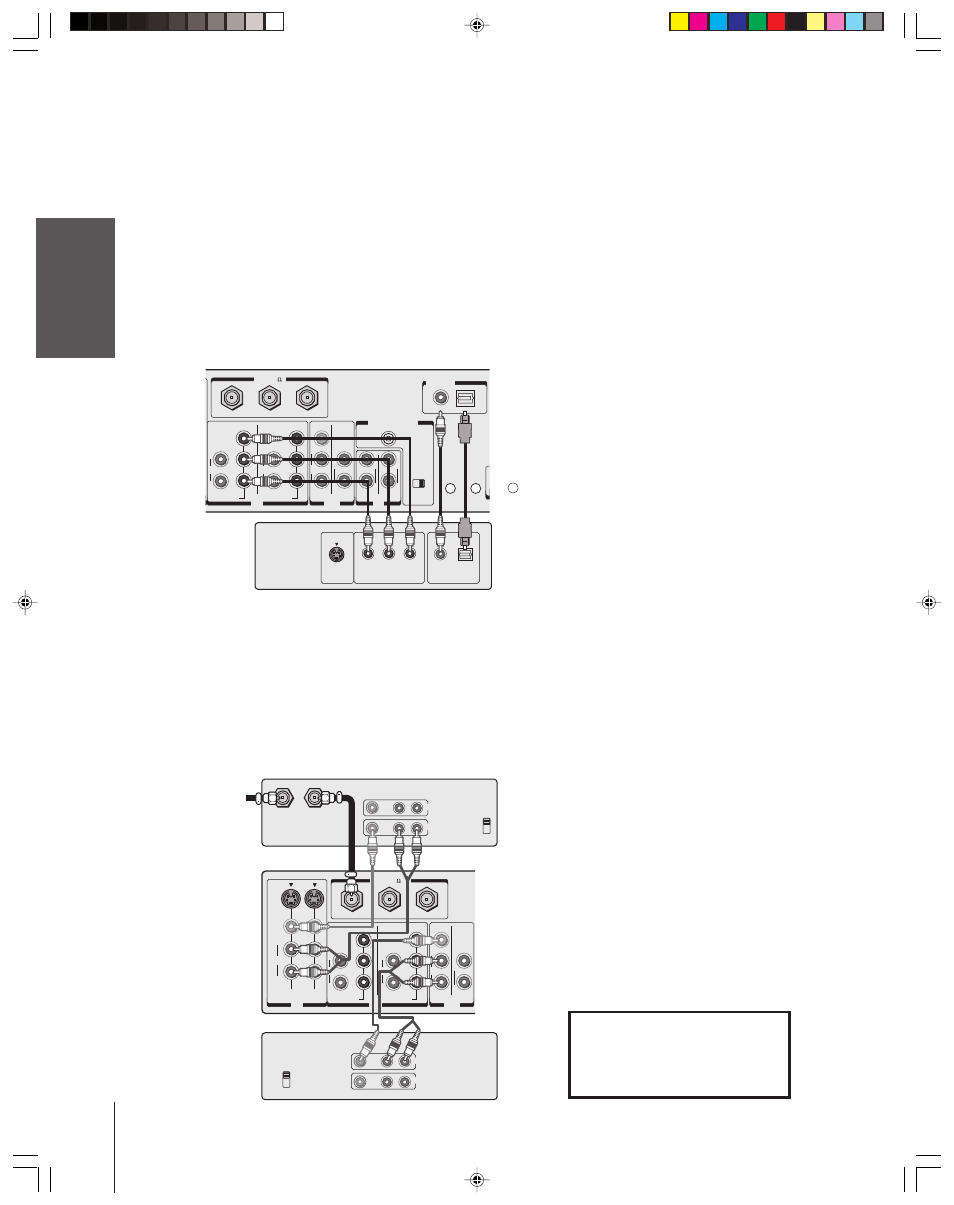

Connecting two VCRs
This connection allows you to record (dub/edit) from one VCR to
another VCR while watching a videotape. You also can record one
channel while watching another channel.
You will need:
• two coaxial cables
• two sets of standard A/V cables
IN OUT
ANT( 75 )
ANT-1 OUT ANT-2
L/
MONO
AUDIO
S-VIDEO
VIDEO
R
AUDIO
R R
AUDIO
R
L
VIDEO 1 VIDEO 2
IN
P B
P R
COLOR
STREAM HD-1
Y
AUDIO
VIDEO
VAR
AUDIO
R
L
L
P B
P R
COLOR
STREAM HD-2
Y
L/
MONO
VIDEO AUDIO
CH 3
L R
CH 4
IN
OUT
IN from ANT OUT to TV
VIDEO AUDIO
CH 3
L R
CH 4
IN
OUT
This connection allows you to hear Dolby ® Virtual TruSurround
sound (virtual 5.1-channel surround sound) from the TV speakers
(also see page 53). You can connect a DVD player or DTV receiver/
set-top box with digital audio output to either the coaxial or optical
DIGITAL AUDIO IN terminal on the TV.
You can use any video input except ANT-1 and ANT-2 in
conjunction with either digital audio input. See “Assigning the
corresponding video input for the optical and coaxial DIGITAL
AUDIO IN terminals” on page 57.
You will need:
• one set of component video cables (in this example)
• one digital audio cable (coaxial or optical)
S-VIDEO COMPONENT VIDEO
P R P B Y
COAXIAL
DIGITAL
OPTICAL
AUDIO
IN OUT
ANT( 75 )
ANT-1 OUT ANT-2
AUDIO
R R
AUDIO
R
L
P B
P R
COLOR
STREAM HD-1
Y
AUDIO
VIDEO
VAR
AUDIO
IN
AUDIO CENTER
CHANNEL IN
For
DVI / HDCP
R
L
L
R
L
P B
P R
COLOR
STREAM HD-2
Y
L/
MONO
R
L
For PC
ON OFF
DIGITAL
AUDIO IN
COAXIAL OPTICAL
Connecting a DVD player or DTV receiver/
set-top box with digital audio (coaxial or optical)
Note:
If you have S-VHS VCRs, use S-video cables
instead of standard video cables. Do not
connect both a standard video cable and an
S-video cable to VIDEO 1 (or VIDEO 2) at
the same time, or the picture performance
will be unacceptable.
Do not connect the same VCR to the output
and input jacks on the TV at the same time.
To dub or edit, VCR 2 must select Line IN,
and the TV must select VIDEO 1.
* The Video OUT jack does not output the
POP picture.
** The Audio OUT jacks can output the sound
of either the Main or POP picture (see
“Selecting the Audio OUT sound” on
page 56).
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
Note:
For the highest possible picture quality, use
component video cables (or a DVI-D digital
single-link cable).
The ColorStream HD1/HD2 (or DVI/HDCP)
terminals can be used with progressive (480p,
720p) and interlaced (480i, 1080i) scan
systems.
If your DVD player or DTV receiver is not
compatible with component video (or
DVI/HDCP), use an S-video cable (plus an
audio connection) instead.
DVD player or DTV receiver with digital audio ouput
TV
VCR1
From Antenna
TV
** * VCR2
* You can use either coaxial or optical digital
audio input. You do not need to use both.
Do not crimp an optical cable or bend it to an
extreme angle or it will not function properly. * *
___________
Dolby is a registered trademark of Dolby
Laboratories. Manufactured under license
from Dolby Laboratories.
TruSurround is a trademark of SRS Labs,
Inc. TruSurround technology is incorporated
under license from SRS Labs, Inc.
