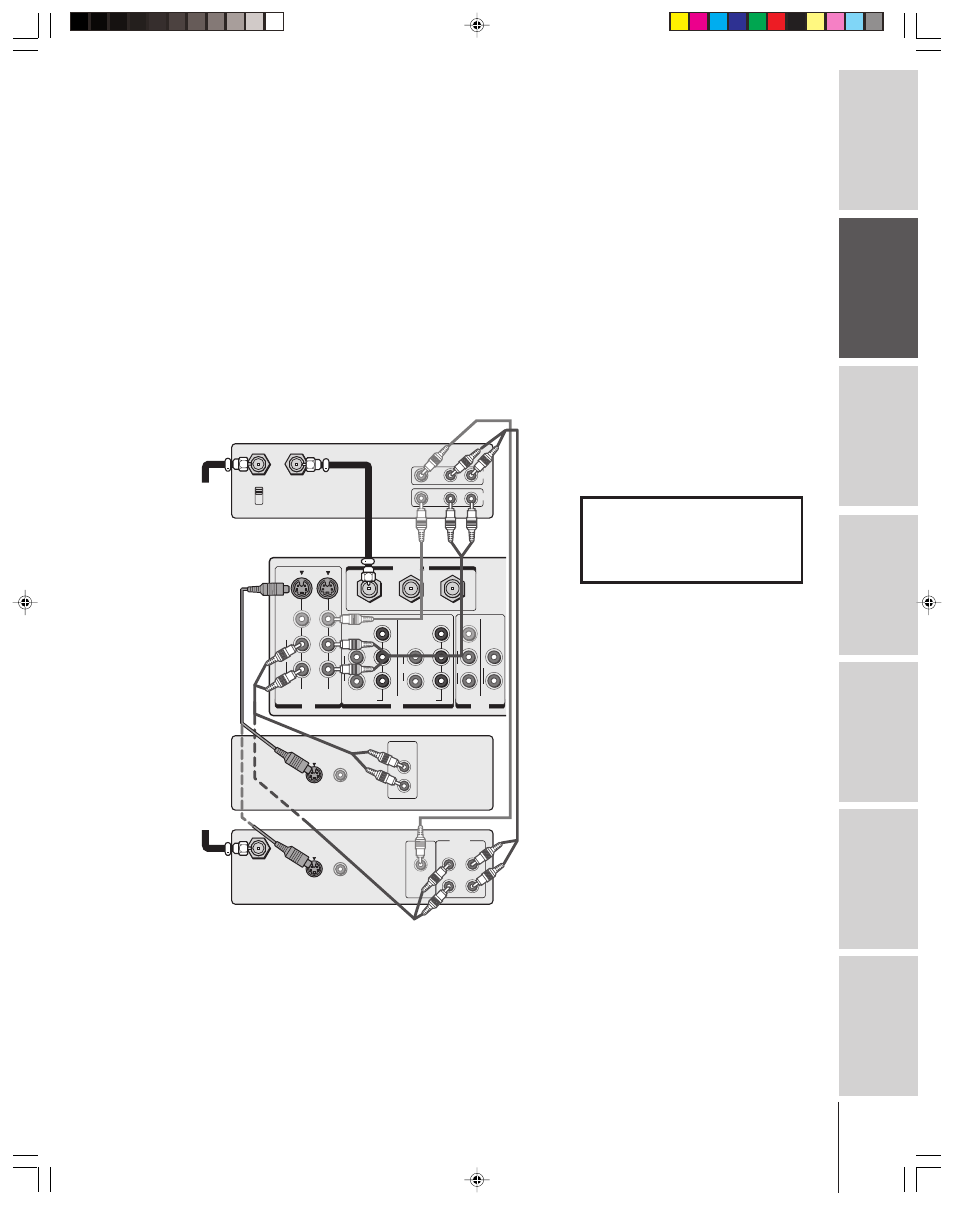

Connecting a DVD player or satellite receiver
and a VCR
This connection allows you to watch DVD/satellite, VCR, and TV
programs, and record one channel while watching another channel.
You will need:
• two (or three, if satellite receiver is used) coaxial cables
• one set of standard A/V cables (between the TV and VCR)
(plus one additional set of standard A/V cables if satellite receiver
is used)
• one S-video cable (between the TV and DVD player/satellite
receiver)
• one pair of standard audio cables (between the TV and DVD
player/satellite receiver) (or one digital audio cable, if applicable;
see pages 14, 53, and 57 for details on digital audio connection)
IN OUT
ANT( 75 )
ANT-1 OUT ANT-2
L/
MONO
AUDIO
S-VIDEO
VIDEO
R
AUDIO
R R
AUDIO
R
L
VIDEO 1 VIDEO 2
IN
P B
P R
COLOR
STREAM HD-1
Y
AUDIO
VIDEO
VAR
AUDIO
R
L
L
P B
P R
COLOR
STREAM HD-2
Y
L/
MONO
VIDEO
OUT OUT
S-VIDEO
AUDIO
OUT
L
R
IN from ANT
VIDEO
OUT OUT
S-VIDEO
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
CH 4
IN
OUT
R L
VIDEO
OUT
AUDIO
OUT
L
R
L
R
Note:
For the highest possible picture quality from a
DVD player/satellite receiver without
component video or DVI/HDCP, use an
S-video cable between the TV and DVD
player/satellite receiver. (If your DVD player/
satellite receiver is compatible with
component video, see page 12. If your DVD
player/satellite receiver is compatible with
DVI/HDCP, see page 15).
Do not connect both an S-video cable and
a standard video cable between the TV
and DVD player/satellite receiver at the
same time, or the picture performance will
be unacceptable.
Do not connect the DVD player/satellite
receiver and VCR to the same video channel
on the TV. (See the illustrations, which show
the DVD player/satellite receiver connected to
VIDEO 1 on the TV and the VCR connected
to VIDEO 2 on the TV.)
From
Antenna
Stereo VCR
From
Satellite
Dish
DVD player
Satellite receiver
The unauthorized recording, use, distribution,
or revision of television programs, videotapes,
DVDs, and other materials is prohibited under
the Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
