MENU VOLUME CHANNEL EXIT TV/VIDEO POWER
IR receiver/repeater
or home theater
control system
With this connection, point the Toshiba TV
remote control at the front of the
IR receiver/repeater or home theater
control system to operate the TV.
For additional control options for your
home theater system, you can connect
an IR receiver/repeater (not included)
or a home theater control system (not
included) to the TV’s IR BLASTER IN
terminal.*
See the Specifications section in the
back of this manual for IR BLASTER IN
terminal requirements.
Contact your home theater electronics
dealer for details about home theater
control systems.
IN
AUDIO CENTER
CHANNEL IN
For
DVI / HDCP
R
L
R
L
For PC PC IN DVI / HDCP IN
ON OFF
IN OUT
IR BLASTER DIGITAL
AUDIO IN
COAXIAL OPTICAL
IN OUT
Back of TV
Back of IR receiver/
repeater or home
theater control system*
(not included)

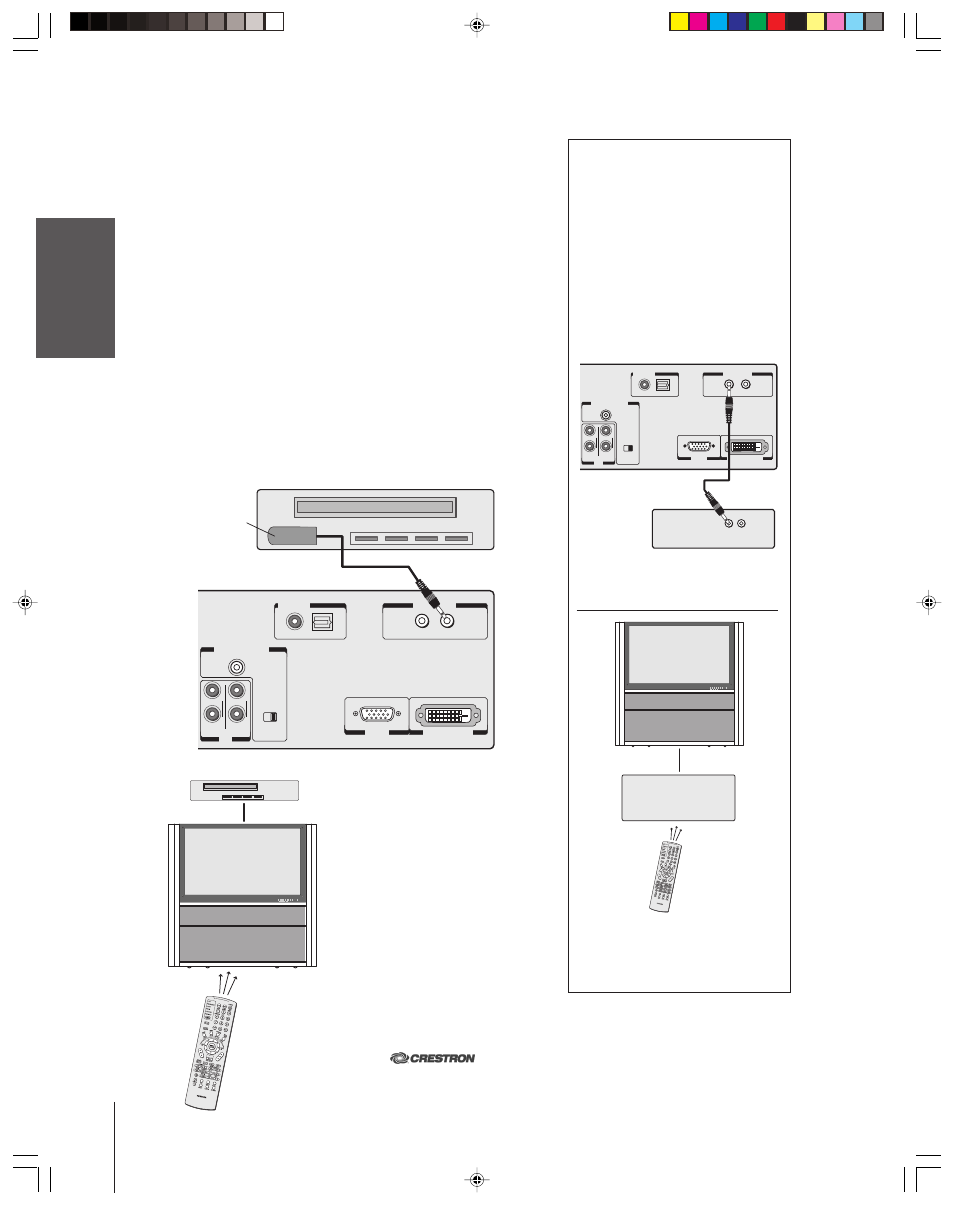

Connecting a device to the IR blaster
The IR blaster allows you to remotely operate (through the TV)
most infrared-controlled devices* (such as a Toshiba infrared-
controlled VCR or DVD player) enclosed within an entertainment
center or similar cabinet. Without the IR blaster, the device typically
would need to be visible to operate it remotely.
You can use the TV’s remote control (programmed to operate
the device; see pages 19–25) or the device’s remote control. Point
the remote control at the front of the TV and press the button for the
desired function. The signal passes from the remote control through
the TV to the device via the IR blaster cable (included with your TV).
To connect, align the IR blaster cable’s infrared “eye” with the device’s
infrared sensor and attach it using double-sided mounting tape
(included with the cable in the accessory pack). Plug the other end of
the IR blaster cable into the TV’s IR BLASTER OUT terminal.
You will need:
• one IR blaster cable (included)
• one piece of double-sided mounting tape (included)
IN
AUDIO CENTER
CHANNEL IN
For
DVI / HDCP
R
L
R
L
For PC PC IN DVI / HDCP IN
ON OFF
IN OUT
IR BLASTER DIGITAL
AUDIO IN
COAXIAL OPTICAL
MENU VOLUME CHANNEL EXIT TV/VIDEO POWER
IR blaster cable’s
infrared “eye”
facing device’s
infrared sensor
Front of infrared-controlled device*
(such as a Toshiba infrared-controlled
VCR or DVD player)
With this connection, point the
Toshiba TV remote control at
the front of the TV to operate both
the TV and the infrared-controlled
device. (You also can point the
device’s remote control at the TV to
operate the device, but you also will
need to use the TV’s remote control
to operate the TV.)
Back of TV
___________
*The IR blaster OUT function has been verified for use with Toshiba infrared-controlled devices. The IR blaster IN function
has been verified for use with
SmarTouch™ STS/STS-C wireless RF control systems. Due to the wide
variation in remote control operation among manufacturers, these functions may or may not operate with other brands.
SmarTouch is a trademark of Crestron Electronics, Inc. (www.crestron.com).
