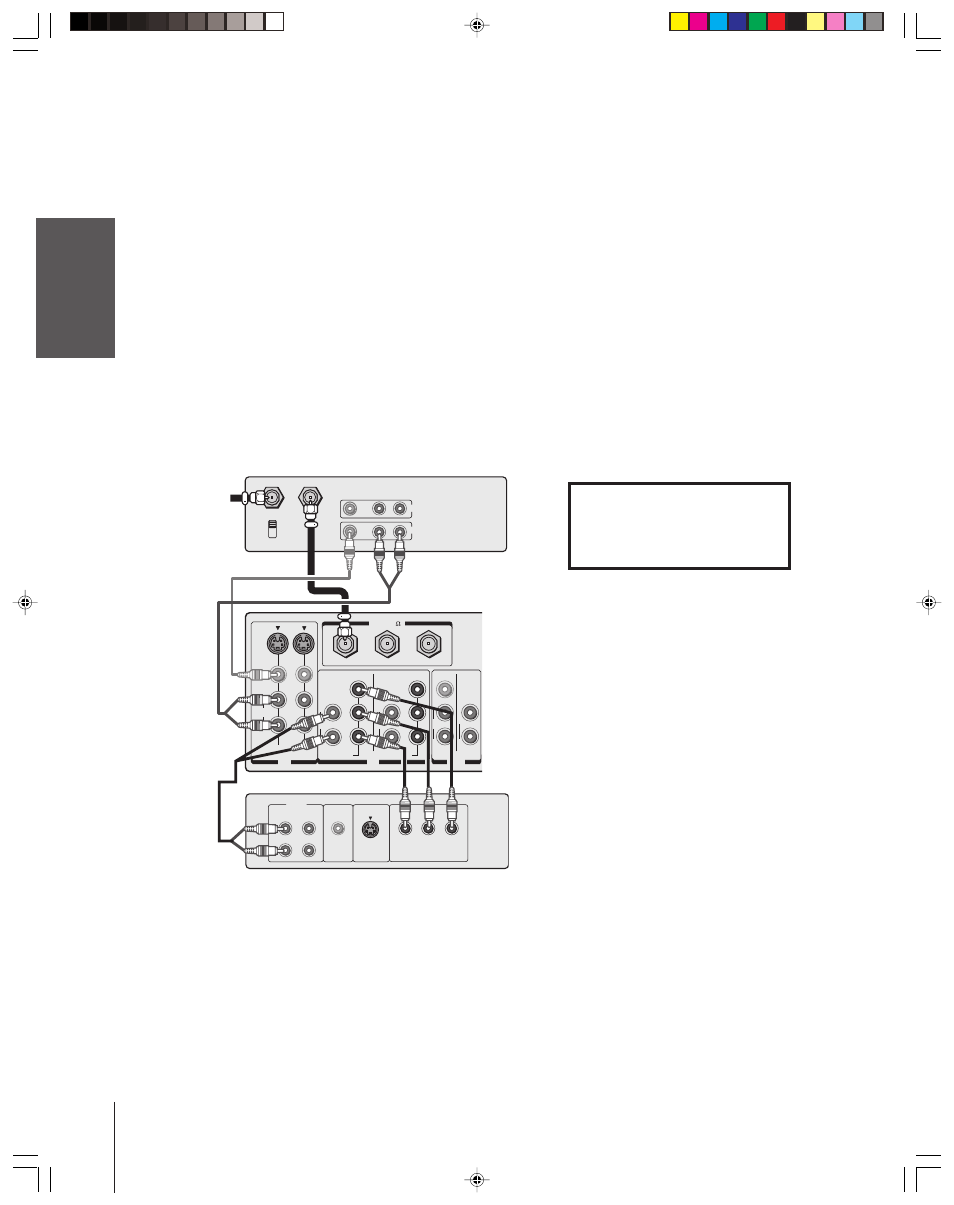

Connecting a DVD player with ColorStream ®
(component video) and a VCR
This connection allows you to watch DVD, VCR, and TV programs,
and record TV programs. You can record one channel while watching
another channel.
Your TV has ColorStream
® (component video) inputs. Connecting
your TV to a DVD player with component video (such as a Toshiba
DVD player with ColorStream
® ) can greatly enhance picture quality
and realism.
You will need:
• two coaxial cables
• one set of standard A/V cables
• one set of component video cables
• one pair of standard audio cables (or one digital audio cable, if
applicable; see pages 14, 53, and 57 for details on digital audio
connection)
IN OUT
ANT( 75 )
ANT-1 OUT ANT-2
L/
MONO
AUDIO
S-VIDEO
VIDEO
R
AUDIO
R R
AUDIO
R
L
VIDEO 1 VIDEO 2
IN
P B
P R
COLOR
STREAM HD-1
Y
AUDIO
VIDEO
VAR
AUDIO
R
L
L
P B
P R
COLOR
STREAM HD-2
Y
L/
MONO
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L R
CH 4
IN
OUT
VIDEO
OUT
S-VIDEO
AUDIO
OUT
L
R
L
R
COMPONENT VIDEO
P R P B Y
Stereo VCR
From Antenna
TV
DVD player with component video
Note:
For the highest possible picture quality, use
component video cables (or a DVI-D digital
single-link cable) between the TV and DVD
player.
You can connect component video cables
from the DVD player to either set of
ColorStream terminals on the TV (HD1 or
HD2).
The ColorStream HD1 and HD2 terminals
can be used with Progressive (480p, 720p)
and Interlaced (480i, 1080i) scan systems.
If your DVD player is not compatible with
component video (or DVI/HDCP), use an
S-video cable (plus an audio connection)
instead.
Do not connect both S-Video and standard
video cables between the TV and DVD player
at the same time, or the picture performance
will be unacceptable.
