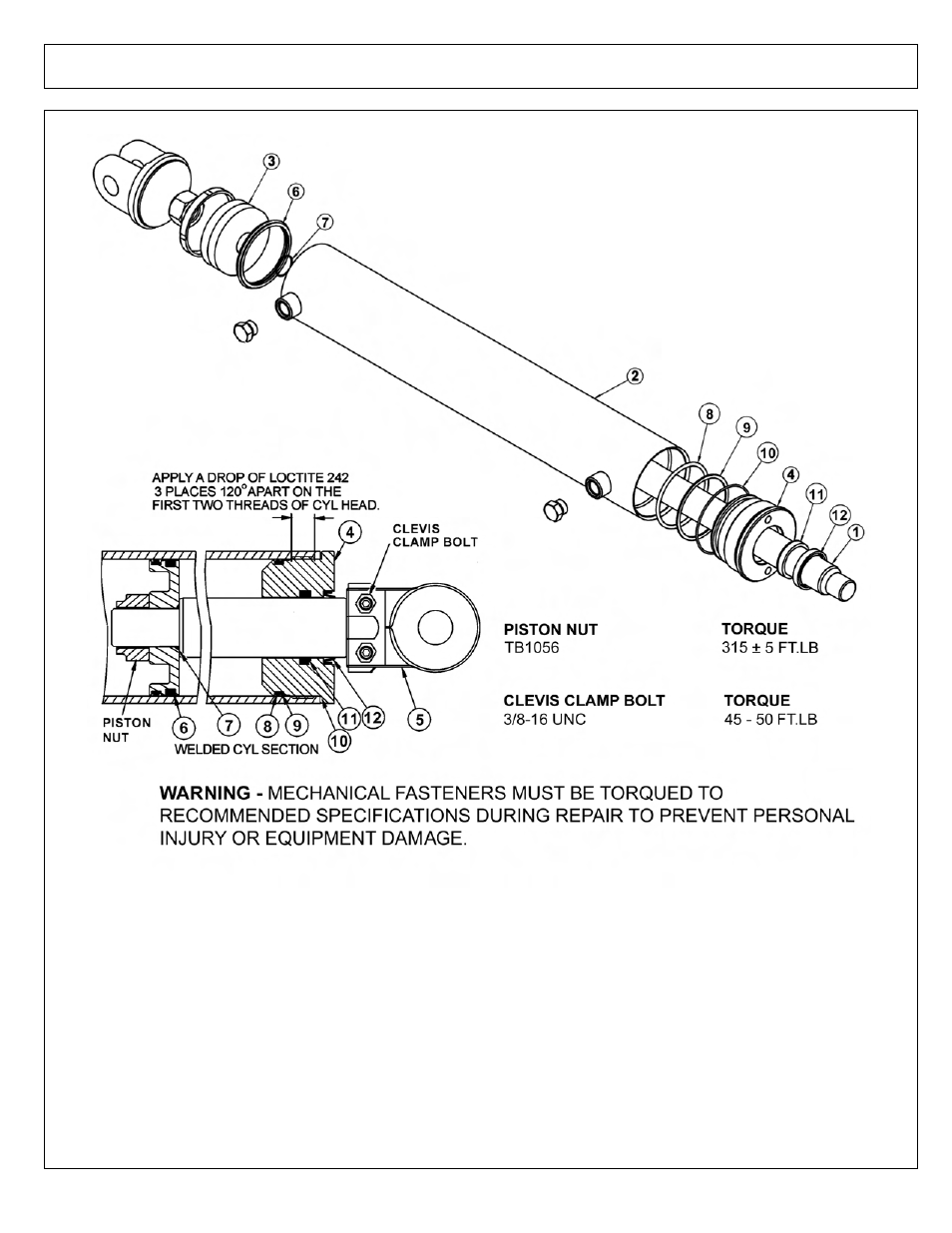

3-1/2IN X 20IN WELDED CYLINDER BREAKDOWN

ITEM

PART NO. QTY.

DESCRIPTION

------

06501024

-

HYDRAULIC CYLINDER COMPLETE

1

06501565

1

ROD

2

06501566

1

TUBE WELDMENT

3

06501567

1

PISTON

4

06501568

1

CYLINDER HEAD

5

TB3033

-

CLEVIS

------

06501569

-

SEAL REPAIR KIT (ITEMS 6 THROUGH 12)
