Dimensional
Data

WSC072–120

All dimensions are in inches/millimeters.

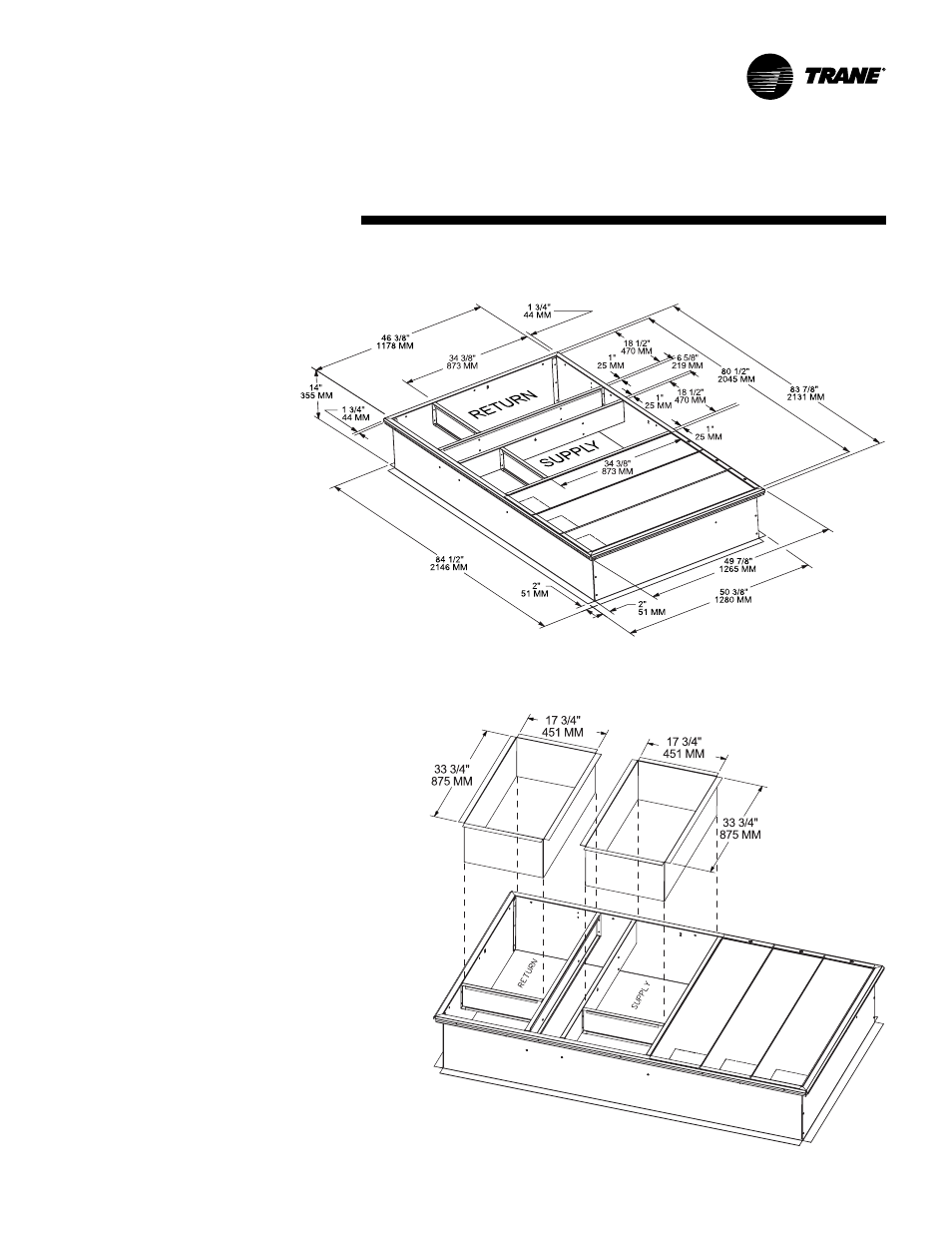

WSC072–120 — Roof Curb

ALL FLANGES 1 1/4” (31 MM)

WSC072–120 — Downflow Duct Connections —
Field Fabricated
