Dimensional
Data

All dimensions are in inches/millimeters.

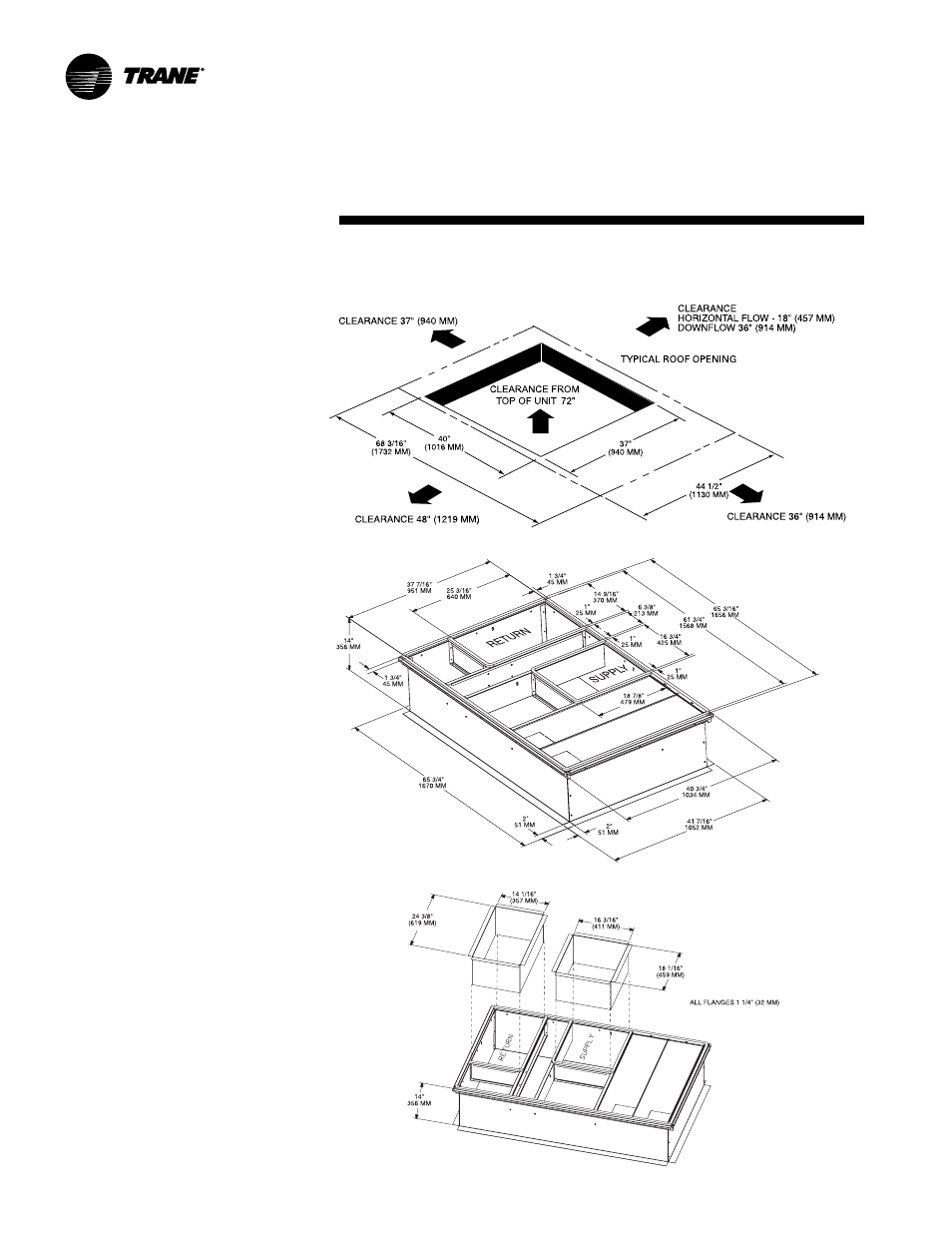

WSC060 — Downflow Duct Connections —
Field Fabricated

WSC060

WSC060 — Unit Clearance and Roof Opening

WSC060 — Roof Curb
