Dimensional
Data

WSC072–120

All dimensions are in inches/millimeters.

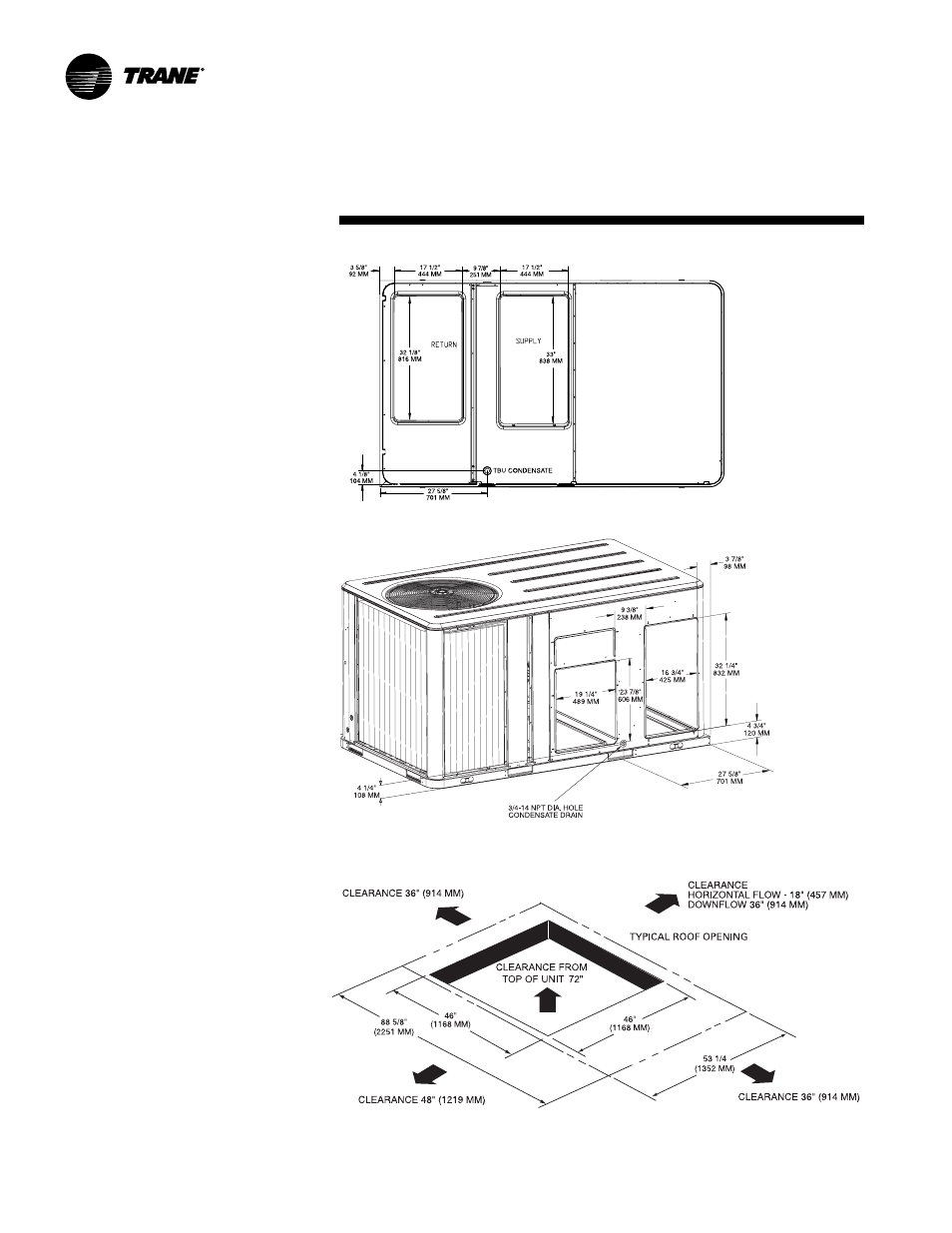

WSC072–120 — Downflow Airflow Supply
and Return

WSC072–120 — Horizontal Airflow Supply
and Return

WSC072–120 — Unit Clearance and
Roof Opening

Supply

Return
