Temco DV5200 Series
78674
Electrical Services
All fan kits are equipped with a 120V, 60Hz blower, less
than 12 amps.
NOTE: All electric connections are to be made in ac-
cordance with CSA Standard C22.1 - Canadian Electri-
cal Code part 1 or with the National Electrical Code,
ANSI/NFPA 70 (latest addition) and/or in accordance
with local codes.
Speed Control Switch
1. The blower combination on/off switch and electronic
speed control is supplied loose to allow mounting in
a conveniently located wall mounted electrical box.
2. Wire speed control into black (hot) side of 120V,
60Hz line as shown in blower wiring diagram.
CAUTION: Should this fan require servic-
ing, the power supply must be discon-
nected. �����
�����������
����
TL131

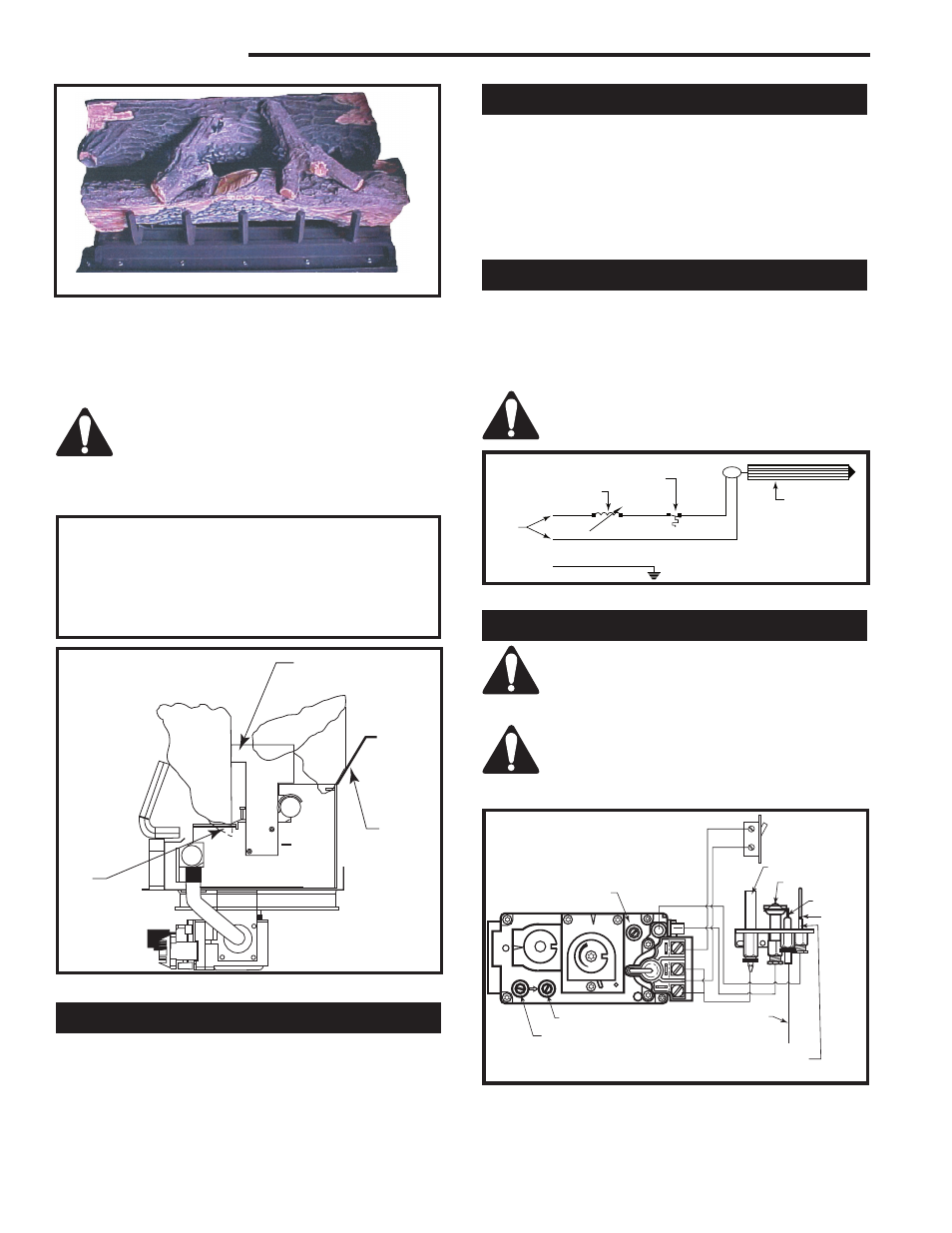

Fig. 33 Correct log placement for the DV52MBN.
�����
���������������������
����
Bracket
Log
Support
Slot
TL132
Fig. 34 DV5200 log placement side view.
M
White
Black
T173
blower wiring
11/14/03 djt
G
Green
120
Volt
Speed Control
Switch
Temperature
Sensor
Fan
T173
Fig. 35 Fan wiring diagram.
FP387
SIT Valve and pilot
HI
LO
OFF
ON
OFF PI
LO
T
O FF
E A
PILOT
THTP
TP
TH
Pilot Screw
Wall Switch
(not supplied)
Thermopile
Pilot
Ignitor
To Piezo
Thermocouple
Manifold Pressure
Supply Pressure
IN
OUT
FP387
Fig. 36 Pilot and valve wiring.
8. Purge lines and test pilot operation.
9. Replace glass door. The door must be installed be-
fore operating the fireplace. (Refer to Page 20)
10. Flame should not impinge (touch) on logs.
WARNING: Do not place rock wool, lava rock
or any other materials on the burner. Use only
certified material supplied with this fireplace.
Using non-certified materials will void the war-
ranty.
The embers supplied with your fireplace are
made from a high grade rock wool and should
be handled carefully. Wash your hands imme-
diately after touching to avoid irritation. The
embers must be placed correctly in order to
function properly.
Thermostatic Fan Kit
(Kit # GDVTFK)
Millivolt System
CAUTION: At installation and/or after any
service work or repairs glass door must be
removed before proceeding to lighting instruc-
tions.
CAUTION: At installation and/or after any
service work or repairs glass door must be
removed before proceeding to lighting instruc-
tions.
