Temco Tool DV5200MB - Manual (Page 11)

11
Temco DV5200 Series
78674
Outside Corner Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
A
Balcony -
with no side wall
G =
Combustible &
Noncombustible
12"(305mm)
G
Balcony -
with perpendicular side wall
H = 24"(610mm)
J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
C
D
C
E
V
V
Combustible &
Noncombustible
V V
V
584-15

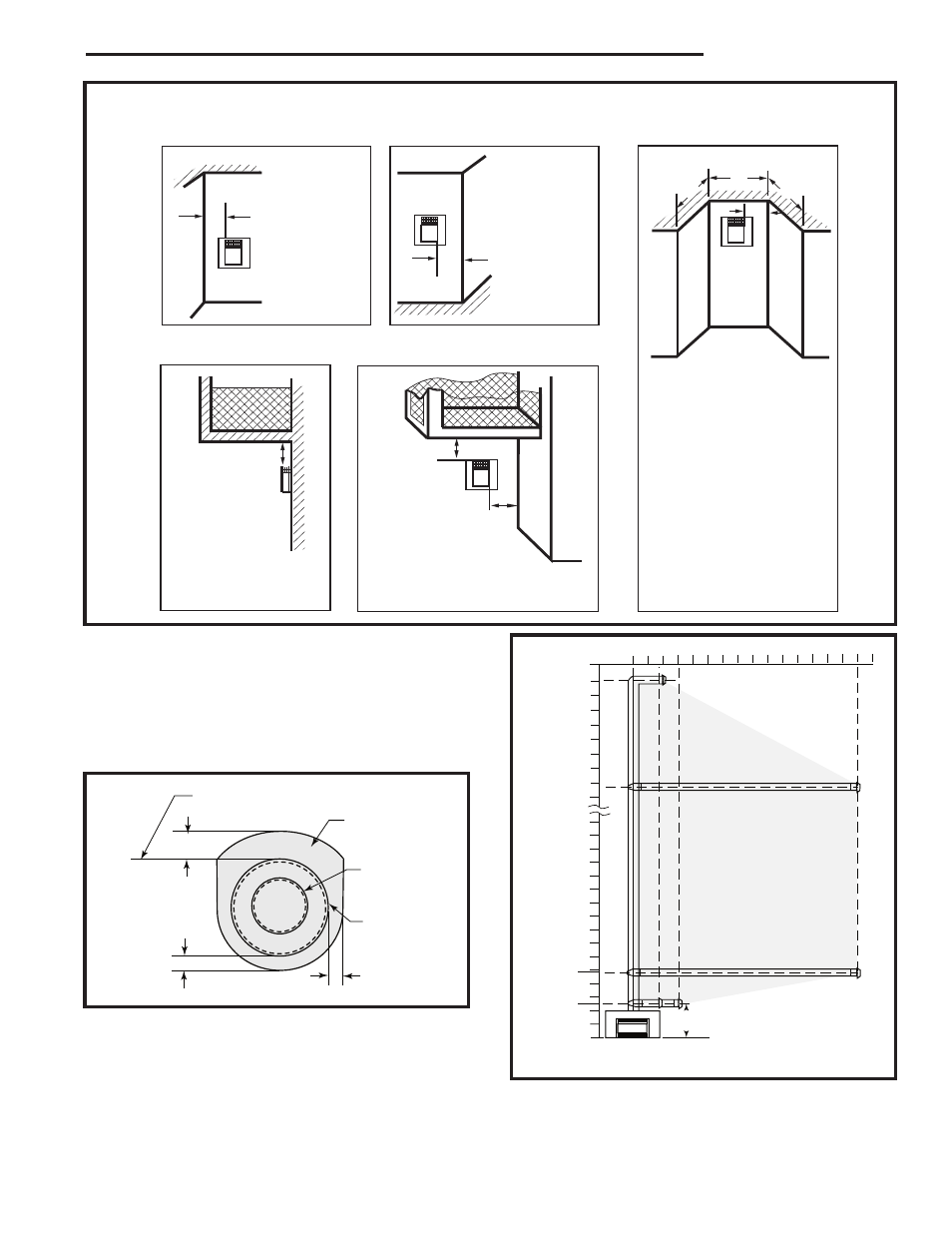

Fig. 10 Termination clearances.
NOTE: Use only venting systems and components
as certified with the appliance. Use of uncertified vent
systems or components will void the warranty and may
compromise the operation of the fireplace, its systems,
and components as certified with the appliance.
2" (51mm)
1" (25mm)
1"
(25mm)
T181
vent clearances
12/3/03 djt
Top of Vent
Combustibles
NOT Allowed in
Shaded Area
4” Dia. Flue
7” Dia. Intake
Vent
T181
Fig. 11 Vent clearances.
0
5'
46"
(1168mm)
33¹⁄₂"
(851mm)
10'
15'
25'
30'
32'
0 3' 5' 10' 15'
T180
DV vent graph
12/3/03 djt
*
A vent guard should be
used whenever the termina-
tion is lower than the speci-
fied minimum or as per local
codes
* Min. Refer to Chart on Page 6
T180
Fig. 12 Venting graph.
